ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver

ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.1 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)

Description

The World's Quietest and Most Powerful SFX-L PSU
Taking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.

COOLING

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.

Lambda Standard ++ Certification
Quietly deviant
On average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.

ENGINEERING

80 PLUS Titanium Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.

ATX 3.1 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.

EXPERIENCE

ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.

* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.

10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.

*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	SFX-L
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Bearing technology	Ball bearing
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black, Silver
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	Yes
Cooling type	Active
Power
Total power	1200 W
Peak power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	1200 W
Combined power (+5V)	110 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	100 A
Max output current (+5V)	20 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	45 cm
SATA power cable length	100,200,300 mm
Peripheral (Molex) power cable length	100,300 mm
CPU power cable length	55 cm

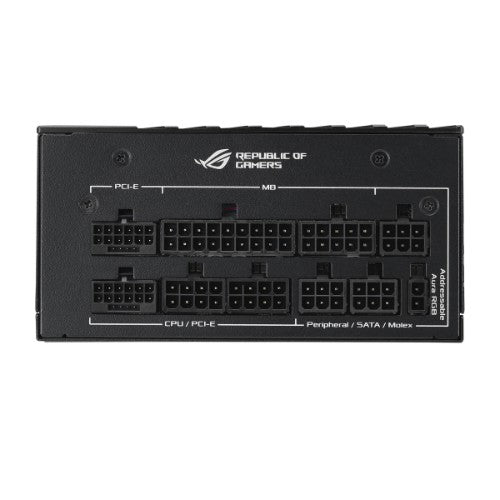

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (8-pin)	4
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	2
Certificates
Compliance certificates	RoHS
80 PLUS certification	80 PLUS Platinum
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Manual	Yes
Weight & dimensions
Width	125 mm
Depth	125 mm
Height	63.5 mm
Weight	2.15 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth	190 mm
Package width	285 mm
Package height	100 mm
Package type	Box
Package weight	2.84 kg
Manual	Yes
Technical details
Sustainability compliance	Yes
Warranty period	10 year(s)
Compliance certificates	RoHS
Logistics data
Warranty period	10 year(s)
Other features
Manual	Yes
