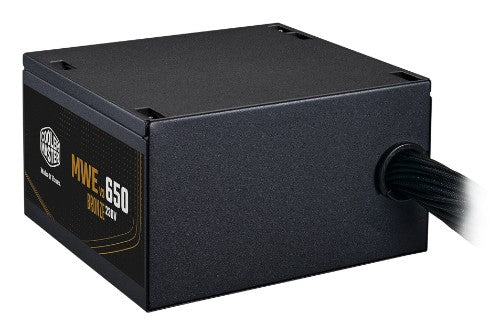

Cooler Master MWE Bronze 650 V3 230V power supply unit 650 W 24-pin ATX ATX Black

650 W, ATX 12V V3.1, APFC, ATX 24 Pin, EPS 4+4 Pin, SATA, Peripheral 4 Pin, PCI-e 6+2 Pin, 200-240 V, 6 A, 50/60Hz, 120 mm, HDB, 140 x 150 x 86 mm, 1.65 kg, UK

Key Features

• ATX 3.1 support
• High temperature resilience
• Quiet HDB fan
• 80 Plus Bronze certified efficiency
• Embossed cable

Description

Power Evolved

ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.​

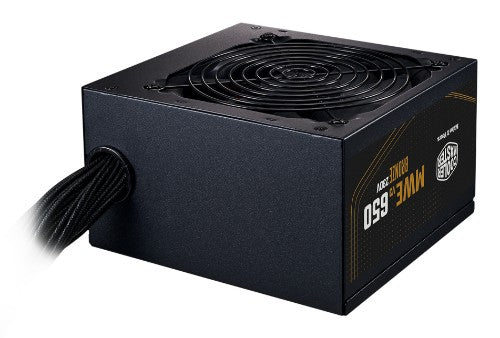

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

​Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.​​​​

High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.​

PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC/Server
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Certification	ErP 2014 Lot 3
Bearing technology	HDB
Design
80 PLUS certification	80 PLUS Bronze
Certification	ErP 2014 Lot 3
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active

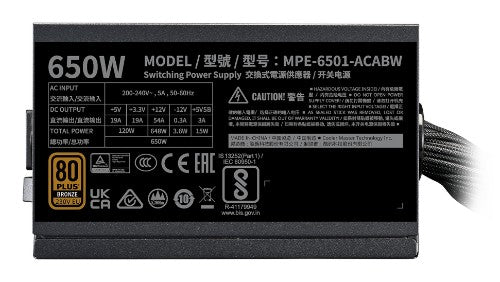

Power
Total power	650 W
Power Good signal delay range	100 - 150 ms
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Input current	5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	648 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	19 A
Max output current (+12V)	54 A
Max output current (+5V)	19 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	16 ms
Efficiency	88%
Ports & interfaces
Motherboard power cable length	50 cm
SATA power cable length	400,550,700 mm
Peripheral (Molex) power cable length	550,700,400 mm
PCI Express power cable length	62 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
EPS cable length	67 cm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Master (outer) cases per pallet (air)	32 pc(s)
Compliance certificates	BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.65 kg
Packaging data
Package depth	245 mm
Package width	190 mm
Package height	110 mm
Package type	Box
Package weight	2.05 kg
Certificates
80 PLUS certification	80 PLUS Bronze
Certification	ErP 2014 Lot 3
Logistics data
Master (outer) case width	260 mm
Master (outer) case length	570 mm
Master (outer) case height	215 mm
Products per master (outer) case	5 pc(s)
Master (outer) cases per pallet (air)	32 pc(s)
Other features
EPS cable length	67 cm
