Cooler Master X Silent Edge Platinum 1100 230V power supply unit 1100 W 24-pin ATX ATX Black

1100W, ATX 12V Ver. 3.1, 200-240V, 6.1A, 50-60Hz, 80 PLUS Platinum, UK

Description

Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.

Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.

Innovative Design

NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

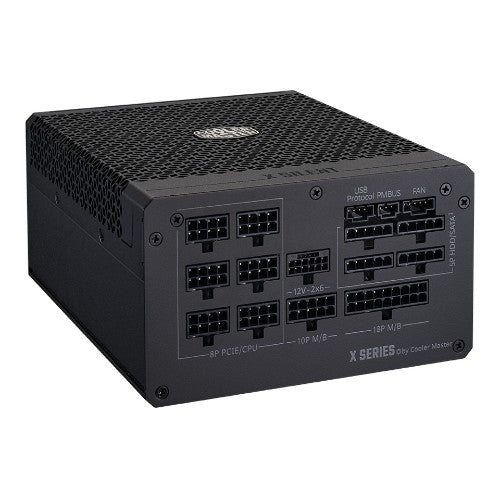

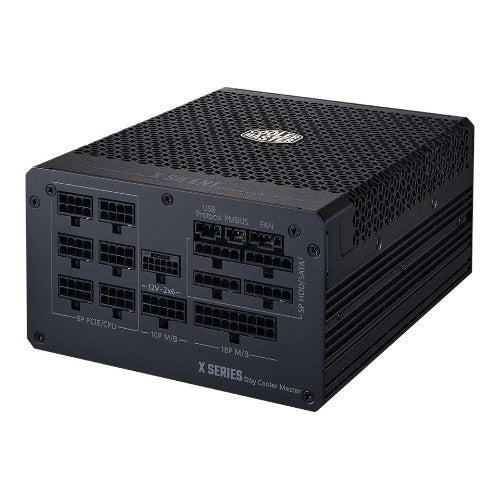

Ports & Slots

Fully Modular Cabling & Extra Functions
Modular cabling minimizes clutter, while the additional ports provide extra functionality.

Cooling System

HEAT DISSIPATION
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.

Power Efficiency

Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.

ATX 3.1 Support & a Durable 90° Cable
Includes ATX 3.1 support and a 90° 12V-2×6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

Specifications

Cooling
Number of fans	0 fan(s)
Cooling type	Passive
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
Silent mode	Yes
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Certification	ErP 2014 Lot 3
Design
80 PLUS certification	80 PLUS Platinum
Certification	ErP 2014 Lot 3
Product colour	Black
On/off switch	Yes
Number of fans	0 fan(s)
Cooling type	Passive
Power
Total power	1100 W
Power Good signal delay range	100 - 150 ms
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Input current	6.1 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	1099.2 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	91.6 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time	16 ms
Efficiency	94%
Ports & interfaces
Motherboard power cable length	65 cm
SATA power cable length	500,650,800,950 mm
Peripheral (Molex) power cable length	740,620,500,860 mm
PCI Express power cable length	55 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
EPS cable length	65 cm
PCI Express power connectors (12+4 pin)	1
PCI Express power connectors (12+4 pin) cable length	650 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	ErP 2014 Lot 3
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, REACH, UKCA, cUL
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	150 mm
Depth	180 mm
Height	86 mm
Weight	4.5 kg
Packaging data
Package depth	224 mm
Package width	382 mm
Package height	126 mm
Package type	Box
Package weight	5.2 kg
Case or master carton quantity	2 pc(s)
Case or master carton dimensions (W x D x H)	396 x 265 x 250 mm
Technical details
Compliance certificates	BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, REACH, UKCA, cUL
Logistics data
Master (outer) cases per pallet	120 pc(s)
Master (outer) case width	396 mm
Master (outer) case length	265 mm
Master (outer) case height	250 mm
Products per master (outer) case	2 pc(s)
Other features
EPS cable length	65 cm
