Corsair

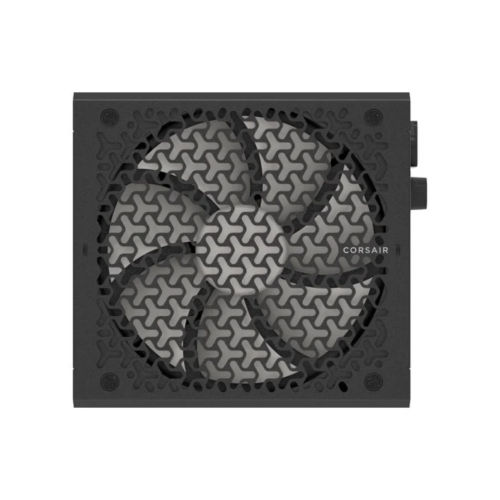

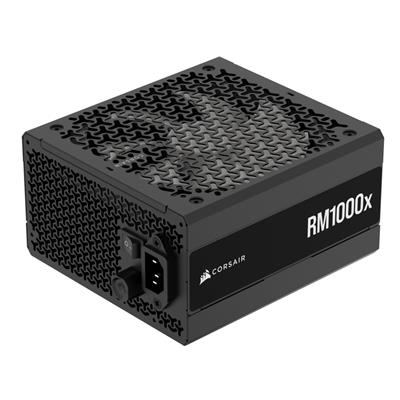

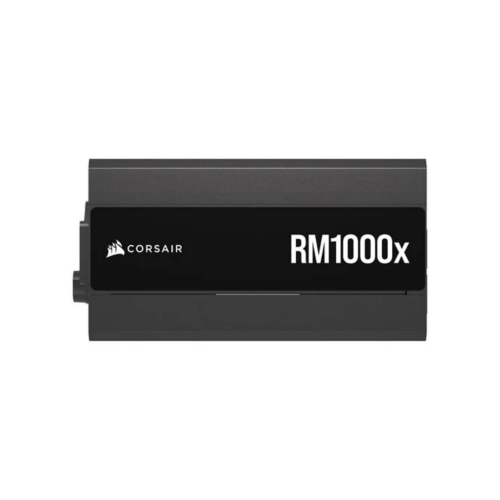

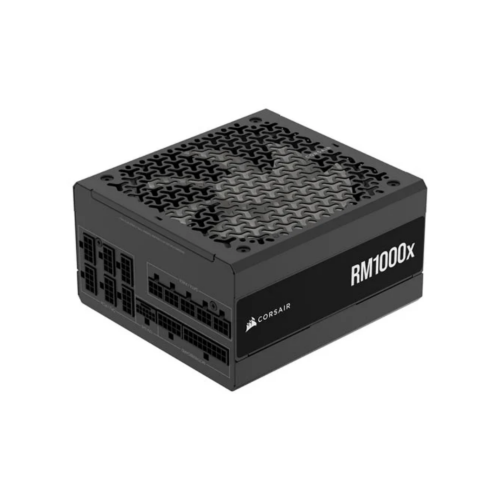

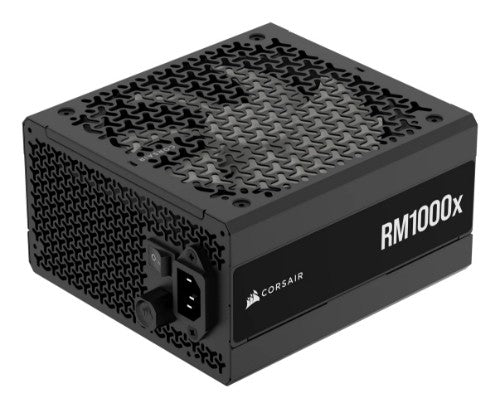

Corsair 1000W Enthusiast RMx Series | RM1000X V3 PSU | FDB Fan | Fully Modular | Cybenetics Gold | ATX 3.1 | PCIe 5.1

SKU CP-9020271-UK

Excluding taxes

Quantity

Product Description

RMx Series RM1000x Fully Modular Power Supply (UK)

Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.

Cooling
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
Silent mode	Yes
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	1000 W
Maximum input current (@220V)	5 A
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	12 - 5 A
Maximum input current (@110V)	12 A
Combined power (+3.3V)	150 W
Combined power (+12V)	1000 W
Combined power (+5V)	150 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Ports & interfaces
Motherboard power cable length	61 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	12
Number of PATA power connectors	6
PCI Express power connectors (6+2 pin)	4
PCI Express connector	Yes
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12+4 pin)	1
Certificates
Compliance certificates	RoHS
80 PLUS certification	80 PLUS Gold
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	3.65 kg
Packaging data
Package type	Box
Technical details
Compliance certificates	RoHS
