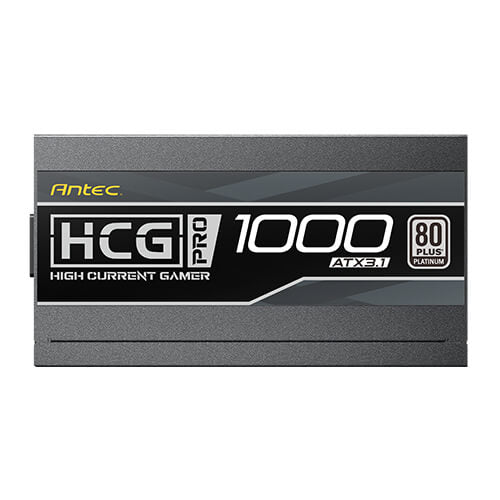

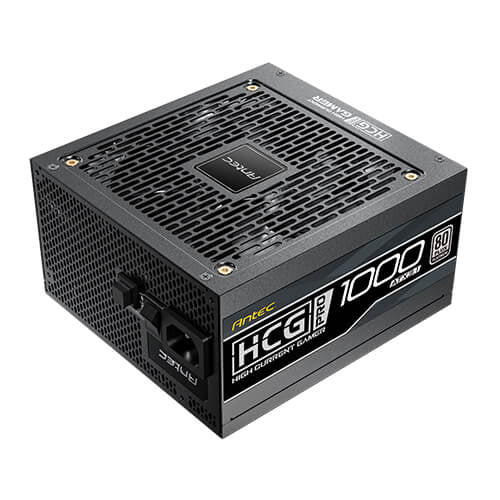

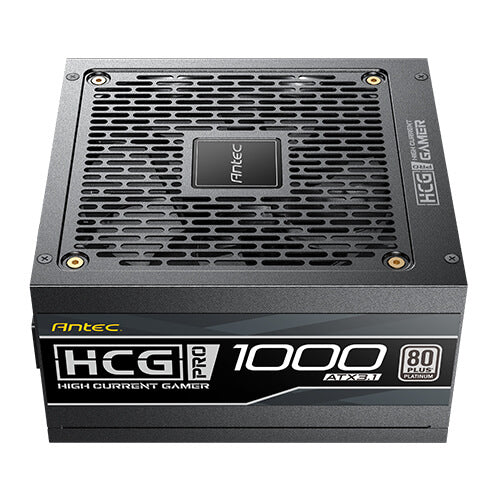

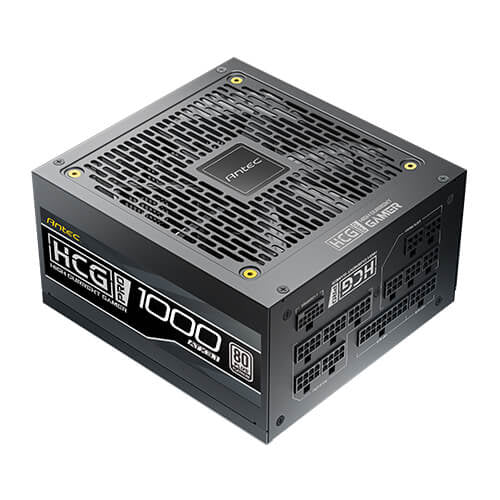

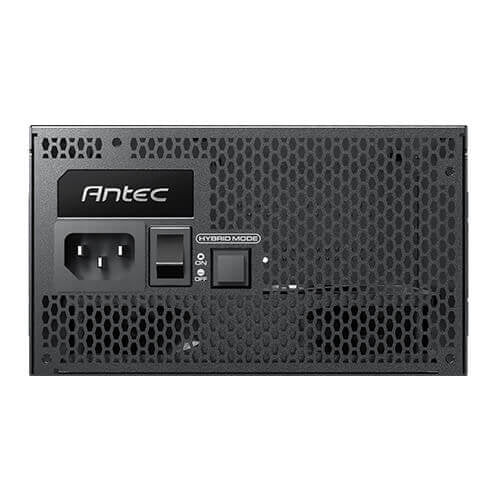

Antec HIGH CURRENT GAMER HCG1000 PRO P GB power supply unit 1000 W 20+4 pin ATX ATX Black

1000W, 100-240V, Full-Modular, ATX 12V 3.1, 60Hz-50Hz, Active PFC

Description

Presenting our High Current Gamer PRO Platinum ATX3.1 power supplies, designed with the ultimate quality and stability in mind for gamers and enthusiasts. With the ground-breaking features like ATX 3.1, PCIe 5.1, 100% high-quality JP capacitors, 80 PLUS® Platinum-certified efficiencies and other more, you can expect second-to-none performance from your system. The PhaseWave™ Design ensures steady power output, while the 135mm FDB Silence Fan offers quiet cooling. The power supply is also 100% Modular, allowing for easy cable management and customization. The Zero RPM Manager enables advanced thermal control, ensuring the optimal balance between silent operation and efficient cooling. The CircuitShield™ full suite of industrial-grade protections provides safe and reliable power delivery under any circumstances. HCG1000 PRO Platinum ATX3.1 is the perfect choice for your cutting-edge PC system.

ATX 3.1 & PCIe 5.1 Compatible
Our new HCG PRO Platinum ATX3.1 power supplies are formally certified for ATX 3.1 compliance, meeting the high standards for reliability and power efficiency, and ensuring the utmost level of quality and performance.

The included PCIe 5.1 12VHPWR GPU cable enables seamless compatibility with the latest graphics cards, such as the NVIDIA® GeForce RTX™ 40 Series.

100% High-Quality JP Capacitors
Equipped with 100% high-quality JP capacitors, HCG PRO Platinum ATX3.1 achieves unprecedented tight voltage regulation and minimal ripple and noise, maximizing your system's performance.

PhaseWave TM Design
Introducing our PhaseWave™ Design, with server-class full-bridge LLC design featuring synchronous rectification based on a DC-DC topology, ensuring unparalleled power delivery efficiency and stability for your gigs.

CircuitShieldTM
The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, providing the best dependability for your power supply in any situation.

10-Year Warranty
Pushing the standard for excellence with the full-suite industrial protections, backed by a 10-year warranty duly committed by Antec.

Zero RPM Manager
The thermal sensors activate the fan only when necessary, providing optimal cooling while minimizing noise levels. With the Zero RPM fan mode, our PSU comes with a longer lifespan and quieter

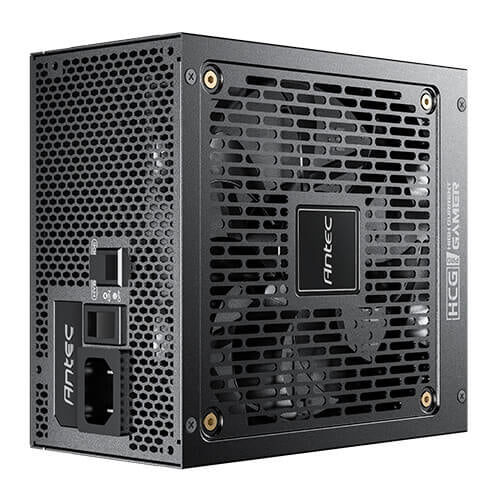

135mm FDB Silent Fan
The whisper-quiet 135mm fluid-dynamic bearing (FDB) fan delivers high airflow with the durability and longevity that is a signature of Antec quality.

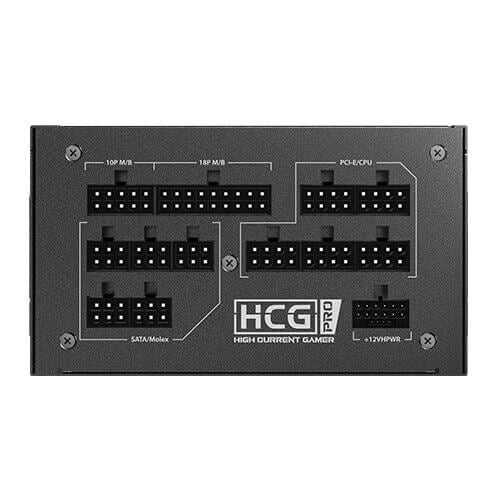

Full Modular
Cable Management
Allowing users to use only the necessary cables and eliminates excess cables that can obstruct and reduce airflow, also provide a much cleaner look inside the PC case.

Compact Size
Compared to typical high-end power supplies on the market, HCG PRO Platinum ATX3.1 is smaller in length so can be paired with a wider range of PC cases.

Specifications

Cooling
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
Silent mode	Yes
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Certification	cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC
Design
80 PLUS certification	80 PLUS Platinum
Certification	cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC
Product colour	Black
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active

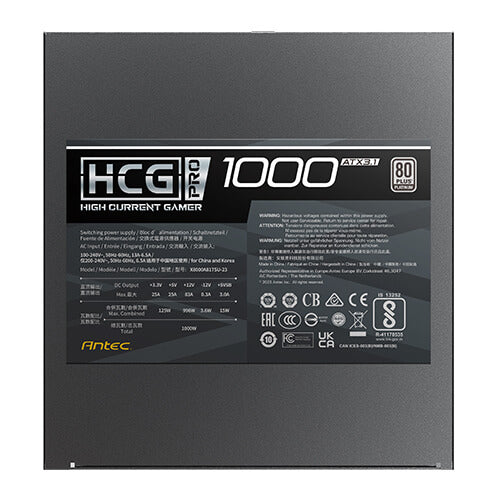

Power
Total power	1000 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	13 - 6.5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	996 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	150,400,500 mm
Peripheral (Molex) power cable length	100,450 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	14
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12+4 pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	cTUVus/TUV/CB/RCM/CE/FCC/BIS/BSMI/KC/UKCA/ICES/CCC
80 PLUS certification	80 PLUS Platinum
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	3.39 kg
Packaging data
Package depth	336 mm
Package width	198 mm
Package height	133 mm
Package type	Box
Package weight	3.97 kg
