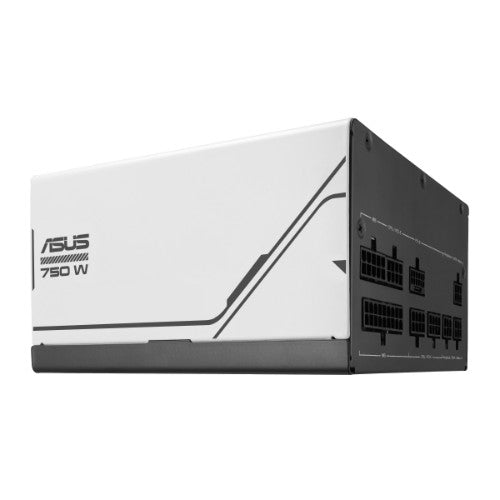

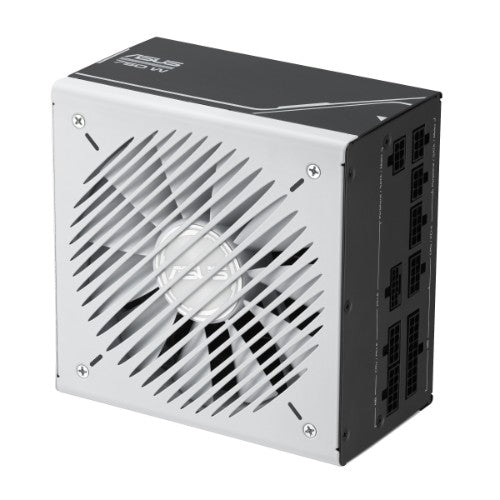

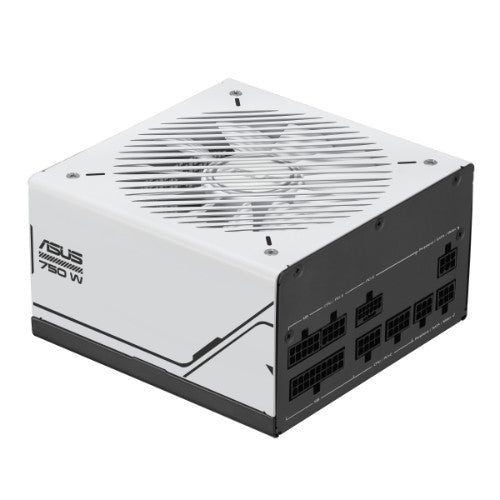

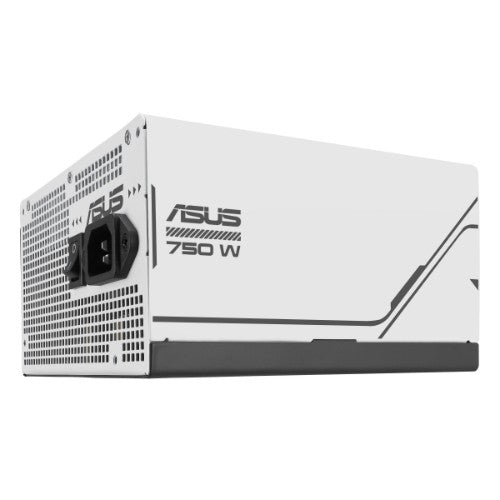

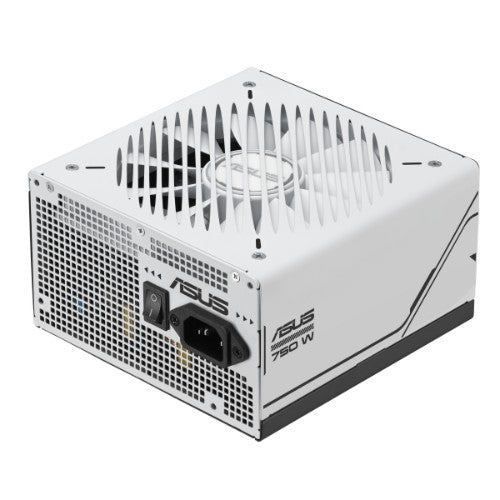

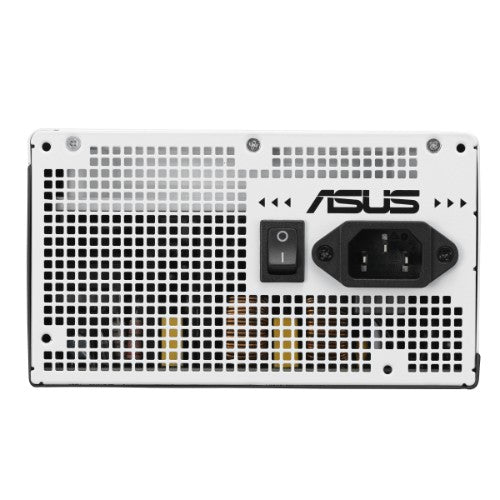

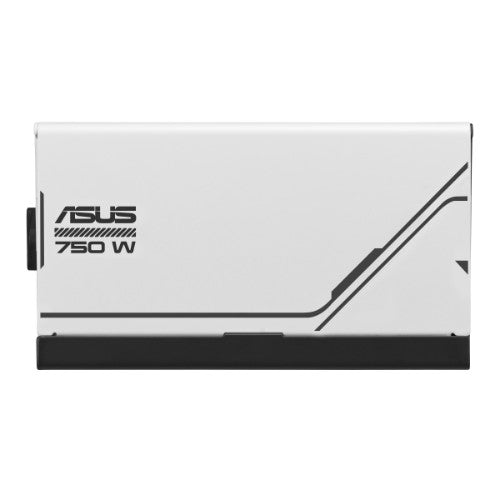

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

Prime 750W Gold Netzteil ohne Originalverpackung (750 Watt, für Allround-PCs und Gaming-PCs, 80 PLUS Gold Zertifizierung, ATX 3.0 kompatibel, Lüfter mit Doppelkugellagern, schwarz / weiß)

Key Features

• Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
• An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
• ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards

Description

Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

Dual Ball Fan Bearings
Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.

80 Plus Gold Certification
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 Compatible
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

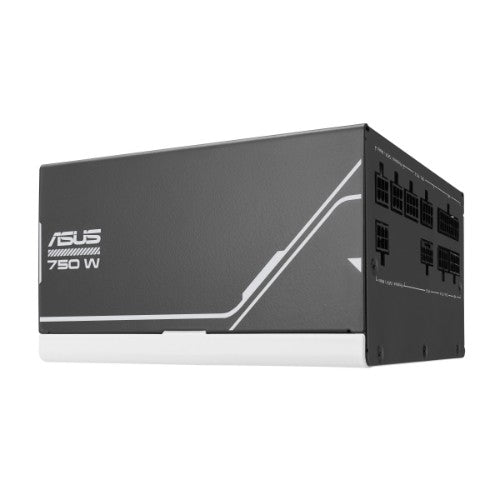

Choose Your Style
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.

8-year Warranty
We're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.

Specifications

Cooling
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.0
Mean time between failures (MTBF)	120000 h
Bearing technology	Ball bearing
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black, White
On/off switch	Yes
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	744 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Efficiency	92%
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (8-pin)	3
CPU P4 connector (4-pin)	2
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.47 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth	208 mm
Package width	346 mm
Package height	144 mm
Package type	Box
Package weight	2.88 kg
Certificates
80 PLUS certification	80 PLUS Gold
