Cooler Master V SFX Gold 750 ATX 3.1 power supply unit 750 W 24-pin ATX Black

750 W, ATX 12V Rev. 3.1, APFC, 92 mm, ATX 24 Pin, EPS 4+4 Pin, EPS 8 Pin, SATA, Peripheral, PCI-e 6+2, 12V-2x6, 10 - 5A, 50/60Hz, 100 - 240V, 100 x 125 x 63.5 mm, UK

Key Features

• Flexible compatibility
• ATX 3.1 support & a 90-degree 12V-2x6 cable
• 80 PLUS Gold certified
• Fully modular cabling
• 100% Japanese capacitors

Description

Small But Mighty

As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.

Flexible compatibility

With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.1 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.

80 PLUS Gold certified

The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.

ATX 3.1 support & a durable 90-degree 12V-2x6 cable

Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.

100% Japanese capacitors

Large, high-quality Japanese capacitors feature improved efficiency and reduced ripple noise.

Fully modular cabling

Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.

Specifications

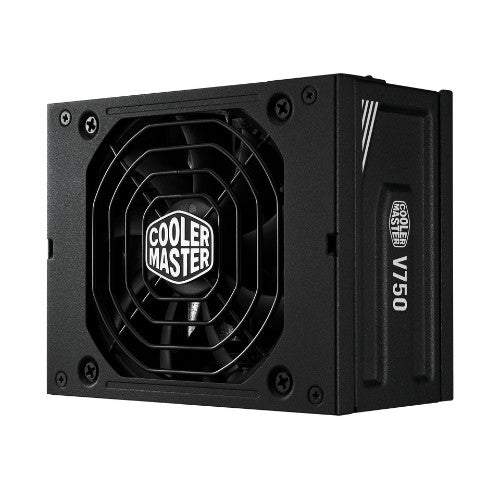

Cooling
Fan diameter	9.2 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	SFX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.42
Mean time between failures (MTBF)	100000 h
Certification	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
Bearing technology	FDB
Design
80 PLUS certification	80 PLUS Gold
Certification	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
Product colour	Black
Fan diameter	9.2 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	750 W
Power Good signal delay range	100 - 500 ms
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	10 - 5 A
Power Factor Correction (PFC) type	Active

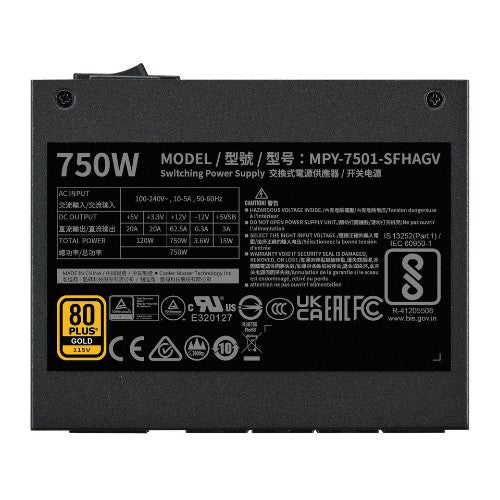

Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage
Hold time	16 ms
Efficiency	90%

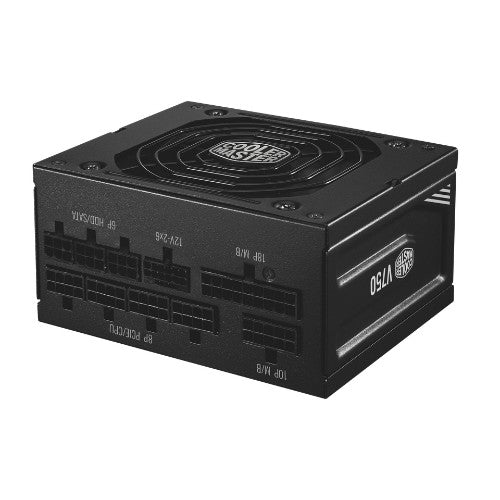

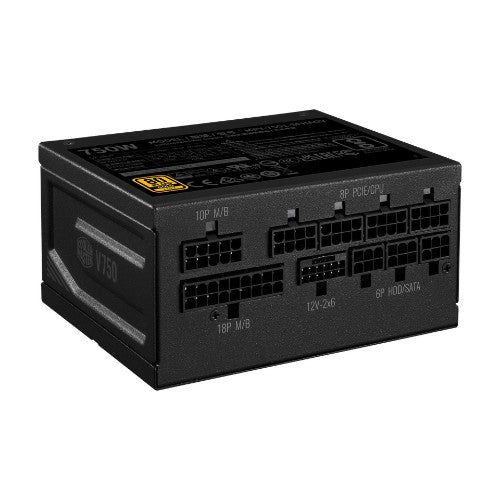

Ports & interfaces
Motherboard power cable length	30 cm
SATA power cable length	100,215,330,445 mm
Peripheral (Molex) power cable length	100,215,330,445 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12-pin)	1
Number of EPS connectors	2
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Certificates
Certification	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA
80 PLUS certification	80 PLUS Gold
Weight & dimensions
Width	125 mm
Depth	100 mm
Height	63.5 mm
Weight	1.42 kg
Packaging data
Cable storage bag included	Yes
Package depth	190 mm
Package width	260 mm
Package height	100 mm
Package type	Box
Package weight	1.86 kg
Manual	Yes
Technical details
Sustainability certificates	ErP
Packaging content
Cable storage bag included	Yes
Manual	Yes
Other features
Manual	Yes
