ASUS ROG -STRIX-850P-GAMING power supply unit 850 W 20+4 pin ATX ATX Black

ROG Strix 850W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style

Key Features

• GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation
• "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance
• Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs
• 0dB technology lets you enjoy light gaming in relative silence
• ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation
• PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power
• 80 PLUS platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency

Description

Superior Stability. Next-Level Efficiency
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The Intelligent Voltage Stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

GaN MOSFET
The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.

ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

Specifications

Cooling
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Semi-passive
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Semi-passive
Power
Total power	850 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	850 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	70.8 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length	61 cm
SATA power cable length	400,120 mm
Peripheral (Molex) power cable length	400,150 mm
PCI Express power cable length	75 cm
CPU power cable length	100 cm

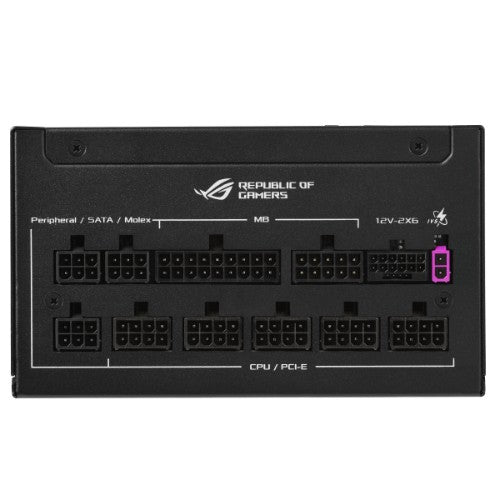

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	3
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Performance
Power supply unit (PSU) form factor	ATX
Silent mode	Yes
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	120000 h
Packaging content
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1.78 kg
Packaging data
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Package depth	200 mm
Package width	320 mm
Package height	108 mm
Package type	Box
Package weight	2.8 kg
Technical details
Compliance certificates	RoHS
Certificates
80 PLUS certification	80 PLUS Platinum
