GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

Key Features

• ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
• 80 PLUS Platinum certified
• 100% Japanese capacitors
• 120mm smart Fluid Dynamic Bearing (FDB) fan
• Compact design
• Fully modular design
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 10 years warranty

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

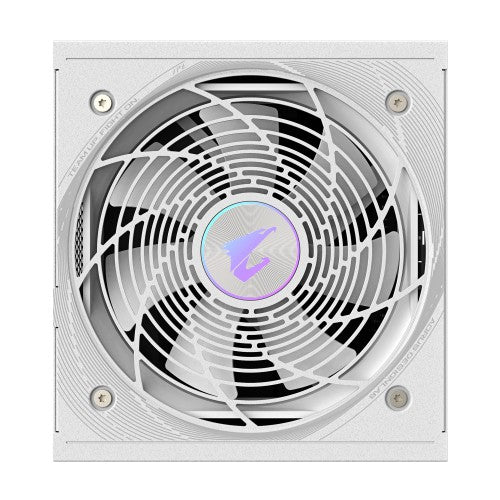

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	Ball bearing
Design
80 PLUS certification	80 PLUS Platinum
Product colour	White
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active

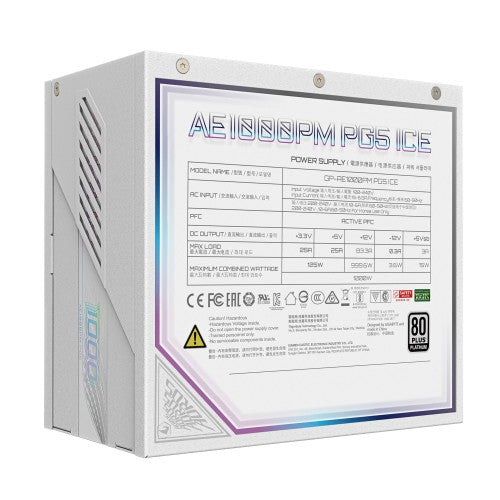

Power
Total power	1000 W
Power Good signal delay range	100 - 150 ms
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	15 - 6.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	999.6 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time	16 ms
Efficiency	92%

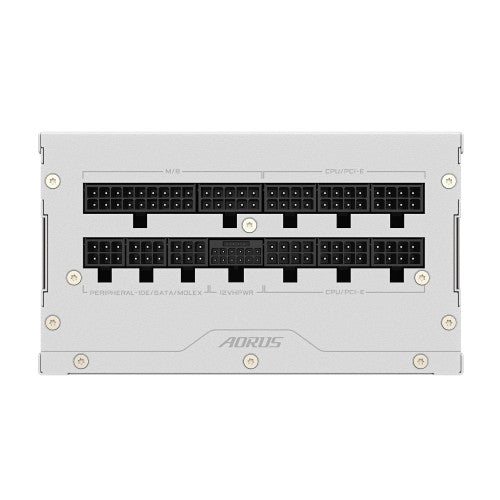

Ports & interfaces
Motherboard power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	6
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Floppy drive power connector	2
Floppy disk drive connector	Yes
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	3.1 kg
Packaging data
Package depth	206 mm
Package width	340 mm
Package height	120 mm
Package type	Box
Package weight	3.73 kg
Technical details
Warranty period	10 year(s)
Certificates
80 PLUS certification	80 PLUS Platinum
