be quiet!

be quiet! PURE POWER 12 650W power supply unit 20+4 pin ATX ATX Black

SKU BP002EU
£93.99
£64.85
£93.99
£64.85
Excluding taxes
80 PLUS Gold, 650W, ATX 3.1, PCIe 5.1, 160 x 86 x 150mm

Key Features

  • 80 PLUS® Gold efficiency (up to 92.7%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent 120mm be quiet! fan
  • Advanced stability and voltage regulation thanks to LLC technology
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 450W and 2 PCIe 6+2 connectors for high-end GPUs

Description

Exceptional quiet, superior features
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
EPS version 2.92

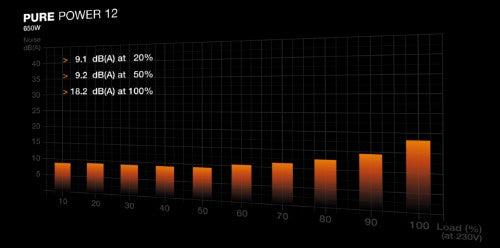

Noise level 18.2 dB
Mean time between failures (MTBF) 100000 h
Bearing technology Rifle
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Cooling type Active
Power
Total power 650 W
Maximum input current (@220V) 5 A
Peak power 720 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power factor 0.98
Power Factor Correction (PFC) type Active
Maximum input current (@110V) 10 A
Combined power (+3.3V) 120 W
Combined power (+12V) 650 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V1) 54.1 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time 16.86 ms
Efficiency 91%
Number of +12V rail(s) 1

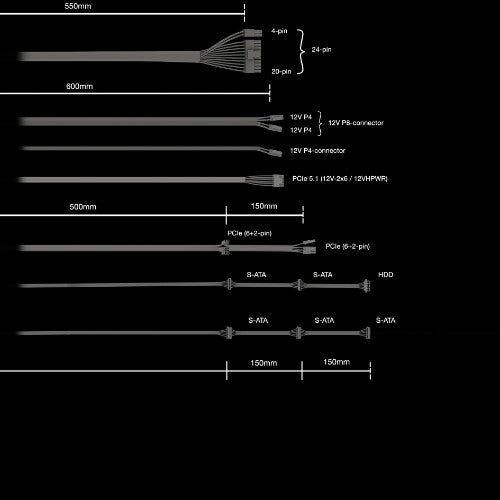

Ports & interfaces
Motherboard power cable length 55 cm
SATA power cable length 500,650,800 mm
Peripheral (Molex) power cable length 800 mm
PCI Express power cable length 60 cm
CPU power cable length 60 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 5
Peripheral (Molex) power connectors (4-pin) 1
PCI Express power connectors (6+2 pin) 2
CPU P4 connector (4-pin) 1
CPU power connector (4+4 pin) Yes
Cabling type Non-Modular
PCI Express power connectors (12-pin) 1
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Technical details
Shipping (inner) case width 34.5 cm
Shipping (inner) case net weight 18.1 kg
Shipping (inner) case length 42 cm
Shipping (inner) case height 41.3 cm
Products per shipping (inner) case 6 pc(s)
Sustainability certificates ENERGY STAR, ErP, Triman
Warranty period 10 year(s)
Compliance certificates CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus

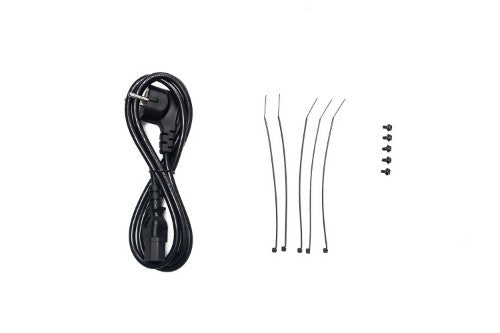

Packaging content
Cables included AC
Cable tie(s) included Yes
Screws included Yes
Weight & dimensions
Width 86 mm
Depth 160 mm
Height 150 mm
Weight 2.4 kg
Packaging data
Cables included AC
Screws included Yes
Package depth 320 mm
Package width 133 mm
Package height 210 mm
Package weight 2.8 kg
Certificates
80 PLUS certification 80 PLUS Gold
Logistics data
Shipping (inner) case width 34.5 cm
Shipping (inner) case net weight 18.1 kg
Shipping (inner) case length 42 cm
Shipping (inner) case height 41.3 cm
Products per shipping (inner) case 6 pc(s)
Other features
Screws included Yes
