be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black

80 PLUS Platinum, 750W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm

Key Features

• 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.2%)
• Semi-passive zero-RPM cooling
• Fan runs on for 2-5 minutes to avoid frequent starting noise
• Pure Wings 3 140mm fan for quiet and efficient cooling
• 90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
• Advanced voltage regulation and stability thanks to LLC technology
• Unique look with an unmistakable mesh design
• One massive high-performance 12V-rail

Description

Exceptional efficiency for Gamers
Power Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

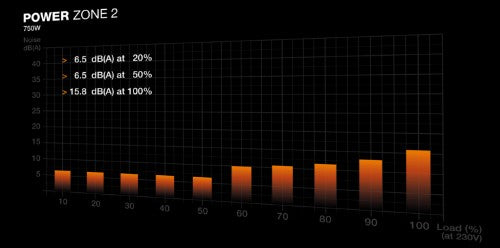

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
A large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

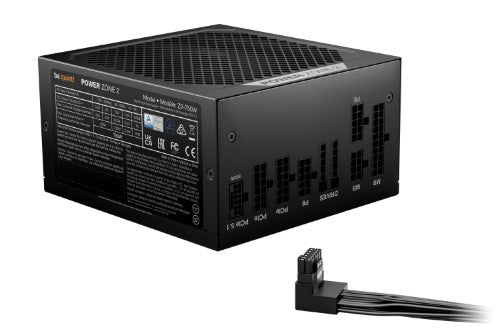

FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery
Power Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design
With its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.

Specifications

Cooling
Fan diameter	14 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
Purpose	PC
ATX version	3.1
EPS version	2.92
Noise level	15.8 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	Rifle
Design
80 PLUS certification	80 PLUS Platinum
Product colour	Black
Fan diameter	14 cm
On/off switch	Yes
Number of fans	1 fan(s)
Cooling type	Active
Power
Total power	750 W
Maximum input current (@220V)	5 A
Peak power	820 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power factor	0.98
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Hold time	24.5 ms
Efficiency	92.5%
Number of +12V rail(s)	1

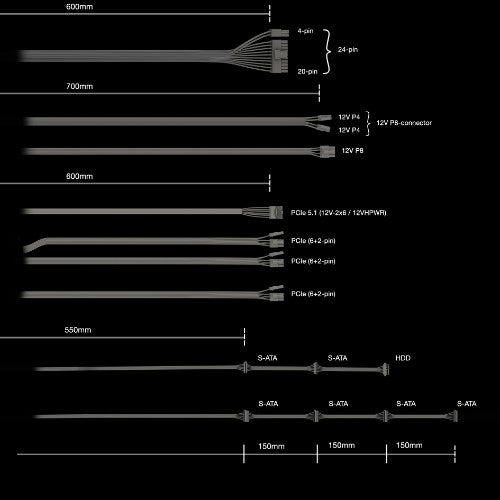

Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	550,700,850,1000 mm
Peripheral (Molex) power cable length	850 mm
PCI Express power cable length	60 cm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	1
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	3
CPU P4 connector (4-pin)	1
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (16-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 95%
Technical details
Shipping (inner) case width	28.2 cm
Shipping (inner) case length	65.1 cm
Shipping (inner) case height	34.6 cm
Products per shipping (inner) case	6 pc(s)
Sustainability certificates	ENERGY STAR, ErP, Triman
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
80 PLUS certification	80 PLUS Platinum
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Packaging data
Screws included	Yes
Cable ties included	Yes
Package depth	328 mm
Package width	248 mm
Package height	102 mm
Package type	Box
Package weight	3.21 kg
Manual	Yes
Manual languages	German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging content
Screws included	Yes
Cable ties included	Yes
Manual	Yes
Logistics data
Shipping (inner) case width	28.2 cm
Shipping (inner) case length	65.1 cm
Shipping (inner) case height	34.6 cm
Products per shipping (inner) case	6 pc(s)
Shipping (inner) case gross weight	19.3 kg
Other features
Screws included	Yes
Cable ties included	Yes
Manual	Yes
