be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black

550W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm

Key Features

• 80 PLUS® Gold efficiency (up to 93.8%)
• ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
• Handles massive power excursions
• Exceptionally silent semi-passive 120mm be quiet! fan
• Semi-passive construction for quiet and energy-saving operation
• LLC technology for advanced stability and voltage regulation
• One massive high-performance 12V-rail
• One PCIe 5.1 12V-2x6 300W and 2 PCIe 6+2 connectors for powerful GPUs
• Full suite of safety features
• Meets latest requirements for modern standby

Description

Exceptional quiet, superior features
Pure Power 13 M 550W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 550W offers the best combination of features with outstanding compatibility.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan speed	0 - 1800 RPM
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
EPS version	2.92
Noise level	20.8 dB
Mean time between failures (MTBF)	100000 h
Bearing technology	Rifle
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Fan speed	0 - 1800 RPM
Cooling type	Active
Power
Total power	550 W
Maximum input current (@220V)	5 A
Peak power	600 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power factor	0.98
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	10 A
Combined power (+3.3V)	120 W
Combined power (+12V)	550 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V1)	45.8 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Hold time	21.68 ms
Efficiency	92.1%
Number of +12V rail(s)	1

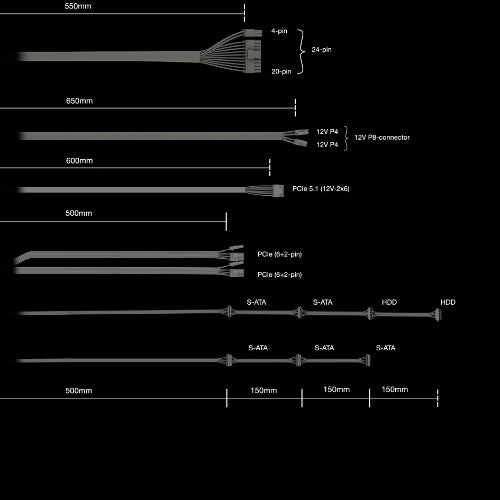

Ports & interfaces
Motherboard power cable length	55 cm
SATA power cable length	500,650,800 mm
Peripheral (Molex) power cable length	800,950 mm
CPU power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	2
CPU P4 connector (4-pin)	2
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
PCI Express power connectors (12-pin)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Shipping (inner) case width	32.5 cm
Shipping (inner) case length	58 cm
Shipping (inner) case height	23.3 cm
Products per shipping (inner) case	6 pc(s)
Sustainability certificates	ENERGY STAR, ErP
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Certificates
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
80 PLUS certification	80 PLUS Gold

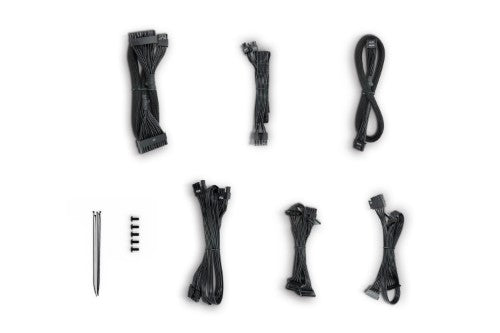

Packaging content
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included	Yes
Cable ties included	Yes
Weight & dimensions
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	2.23 kg
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Screws included	Yes
Cable ties included	Yes
Package depth	320 mm
Package width	210 mm
Package height	133 mm
Package weight	3 kg
Logistics data
Shipping (inner) case width	32.5 cm
Shipping (inner) case length	58 cm
Shipping (inner) case height	23.3 cm
Products per shipping (inner) case	6 pc(s)
Shipping (inner) case gross weight	17.9 kg
Other features
Screws included	Yes
Cable ties included	Yes
