AMD Ryzen 4300G processor 3.8 GHz 4 MB L3 Box

AM4, 4 cores, 8 threads, 3.8 GHz base clock, 4 GHz boost clock, 4 MB cache, 65 W

Description

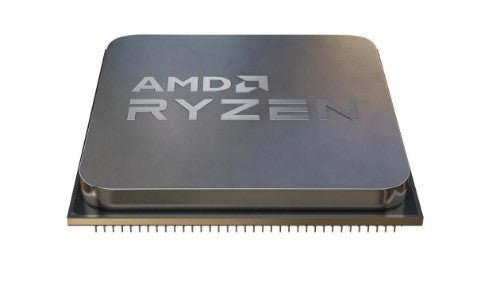

AMD Ryzen 3 4300G AM4 Processor
Take your computing experience to the next level with the AMD Ryzen 3 4300G. With Socket AM4 compatibility, this processor uses the Zen 2 (Renoir) architecture and features four cores that can execute up to eight threads thanks to AMD Simultaneous Multithreading (SMT). The processor has a default operating frequency of 3.8 GHz, which can be boosted up to 4 GHz depending on the workload, and comes with 4MB of L3 cache to enhance performance.

SMOOTH AND RESPONSIVE
The Ryzen 3 4300G is built on a 7 nm production node, with 9,800 million transistors, and its unlocked multiplier simplifies the overclocking process. The processor consumes a typical amount of power for a modern PC, with a TDP of 65 W, and supports DDR4 memory with a dual-channel interface at a maximum supported speed of 3200 MHz. The Ryzen 3 4300G uses a PCI-Express Gen 3 connection to communicate with other components in the system, and features the Radeon Vega 6 integrated graphics solution, ensuring smooth and responsive visuals. Whether you're gaming, streaming, or working on complex projects, the AMD Ryzen 3 4300G is a reliable and efficient processor that can handle it all.

Specifications

Platform
Desktop

Product Family
MD Ryzen Processors

Product Line
AMD Ryzen 3 4000 G-Series Desktop Processors with Radeon Graphics

# of CPU Cores
4

# of Threads
8

Max. Boost Clock
Up to 4.0GHz

Base Clock
3.8GHz

L1 Cache
256KB

L2 Cache
2MB

L3 Cache
4MB

Default TD
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
TSMC 7nm FinFET

Unlocked for Overclocking
Yes

CPU Socket
AM4

Max. Operating Temperature (Tjmax)
95°C

OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express Version
PCIe 3.0

System Memory Type
DDR4

Memory Channels
2

Graphics Capabilities

Graphics Model
Radeon Graphics

Graphics Core Count
6

Graphics Frequency
1700 MHz

Specifications

Processor
Processor generation	AMD Ryzen 4000 Series
Processor base frequency	3.8 GHz
Processor manufacturer	AMD
Cooler included	No
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Processor cache	4 MB
Processor model	4300G
Processor threads	8
Processor operating modes	32-bit, 64-bit
Processor boost frequency	4 GHz
Component for	PC
Processor lithography	7 nm
Processor family	AMD Ryzen™ 3
Processor cores	4
Processor socket	Socket AM4
Configurable TDP-up	65 W
Processor cache type	L3
Package type	Box
Memory
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	3200 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	AMD Radeon Graphics
On-board graphics card	Yes
On-board graphics card base frequency	1700 MHz
Discrete graphics card model	Not available
Power
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Technical details
PCI Express slots version	3.0
Thermal Design Power (TDP)	65 W
Market segment	Desktop
Configurable TDP-up	65 W
Processor cache type	L3
Features
Thermal Design Power (TDP)	65 W
PCI Express slots version	3.0
Market segment	Desktop
Processor special features
Configurable TDP-up	65 W
Packaging data
Package type	Box
