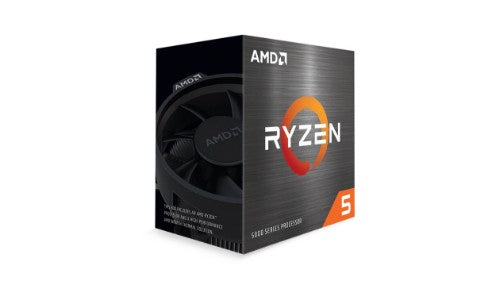

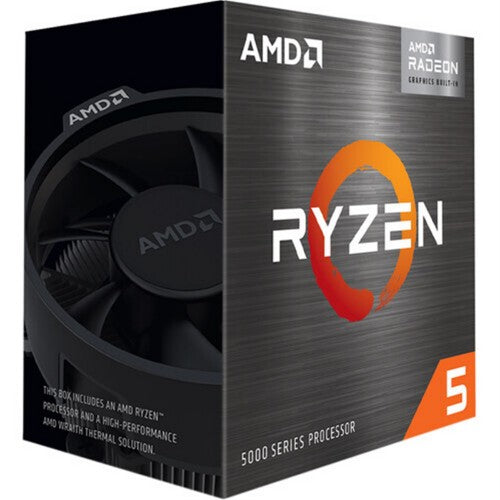

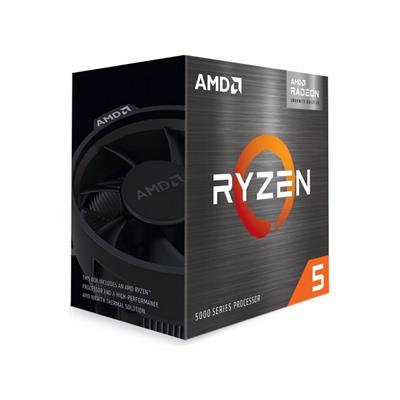

AMD Ryzen 5 5600GT Retail Wraith Stealth | AM4 | 6 Core | 3.6GHz | 19MB | 65W | Radeon

Socket AM4, 6 cores, 12 threads, 3.6 GHz base clock, 4.6 GHz boost clock, 16 MB cache, 65 W

Description

Unleash Superior Performance: AMD Ryzen 5 5600GT 3.6GHz 6 Core AM4 Processor
Revolutionize your computing experience with the AMD Ryzen 5 5600GT processor. Boasting a robust 3.6GHz base clock and a dynamic 6-core configuration, this AM4 processor is your gateway to enhanced performance. Featuring 12 threads and a rapid 4.6GHz boost clock, the Ryzen 5 5600GT ensures responsive multitasking and an exceptional computing journey.

Efficient Multitasking Brilliance: 12 Threads and 4.6GHz Boost
Elevate your multitasking game with the AMD Ryzen 5 5600GT's 12 threads, effortlessly managing diverse tasks. The swift 4.6GHz boost clock adds an extra layer of speed, making it ideal for resource-intensive applications, content creation, and seamless multitasking.

Immersive Visuals: Radeon Graphics for Exceptional Quality
Experience captivating visuals with the integrated Radeon Graphics. The AMD Ryzen 5 5600GT processor delivers exceptional graphics performance, eliminating the need for a separate graphics card. Immerse yourself in high-quality visuals for gaming, streaming, and creative projects.


Specifications

General Specifications

Platform:
Boxed Processor

Market Segment:
Mainstream Desktop

Product Family:
AMD Ryzen Processors

Product Line:
AMD Ryzen 5 5000 G-Series Desktop Processors with Radeon Graphics

Consumer Use:
Yes

Commercial Use:
No

Regional Availability:
Global, China, NA, EMEA, APJ, LATAM

Former Codename:
"Cezanne"

Architecture:
"Zen 3"

# of CPU Cores:
6

Multithreading (SMT):
Yes

# of Threads:
12

Max. Boost Clock:
Up to 4.6GHz

Base Clock:
3.6GHz

L1 Cache:
384KB

L2 Cache:
3MB

L3 Cache:
16MB

Default TDP:
65W

AMD Configurable TDP (cTDP):
45-65W

Processor Technology for CPU Cores:
TSMC 7nm FinFET

CPU Compute Die (CCD) Size:
180mm²

Package Die Count:
1

Unlocked for Overclocking:
Yes

CPU Socket:
AM4

Thermal Solution (PIB):
AMD Wraith Stealth

Thermal Solution (MPK):
AMD Wraith Stealth

Max. Operating Temperature (Tjmax):
95°C

Launch Date:
1/8/2024

*OS Support:
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

PCI Express Version:
PCIe 3.0

NVMe Support:
Boot, RAID0, RAID1, RAID10

System Memory Type:
DDR4

Memory Channels:
2

Max. Memory:
128GB

System Memory Subtype:
UDIMM

System Memory Specification:
Up to 3200MT/s

Max Memory Speed:
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

Graphics Capabilities

Integrated Graphics:
Yes

Graphics Model:
Radeon Graphics

Graphics Core Count:
7

Graphics Frequency:
1900 MHz

Specifications

Processor
Processor generation	AMD Ryzen 5000 Series
Processor base frequency	3.6 GHz
Processor manufacturer	AMD
Cooler included	Yes
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Processor cache	16 MB
Processor model	5600GT
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	4.6 GHz
Processor lithography	7 nm
Processor family	AMD Ryzen™ 5
Processor cores	6
Processor socket	Socket AM4
Configurable TDP-up	65 W
Processor cache type	L3
Package type	Box
Memory
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2667,2933,3200 MHz
Memory channels	Dual-channel
Graphics
Discrete graphics card	No
On-board graphics card model	AMD Radeon Graphics
On-board graphics card	Yes
On-board graphics card base frequency	1900 MHz
Discrete graphics card model	Not available
Power
Configurable TDP-down	45 W
Thermal Design Power (TDP)	65 W
Technical details
PCI Express slots version	3.0
Compatible operating systems	Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
Thermal Design Power (TDP)	65 W
Market segment	Desktop
Configurable TDP-up	65 W
Processor cache type	L3
Features
Thermal Design Power (TDP)	65 W
PCI Express slots version	3.0
Compatible operating systems	Windows 11/10 x64, RHEL x86 64-bit, Ubuntu x86 64-bit
Market segment	Desktop
Processor special features
Configurable TDP-up	65 W
Packaging data
Package type	Box
