MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

Key Features

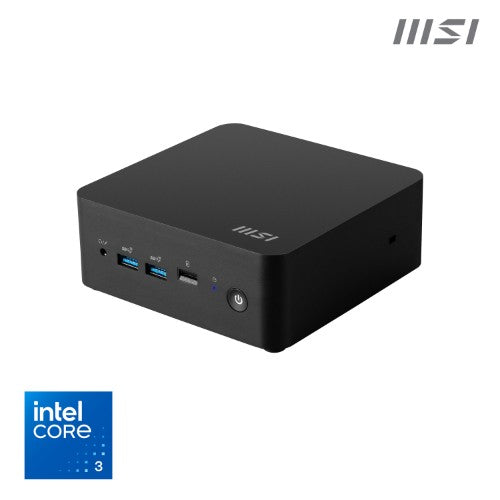

• INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 3 processor 100U CPU, NO RAM, NO Storage, NO OS or software pre-installed
• The system supports 64GB of DDR5-5200 memory (2 x SO-DIMM slots) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
• Supports M.2 SSD storage to ensures faster loading speeds 1x M.2 2280 SSD (PCIE), 1x M.2 2242 SSD (PCIE) and 1 x 2.5" HDD/SSD

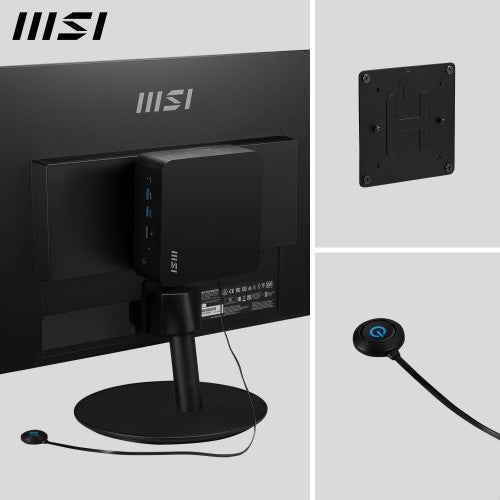

• VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)

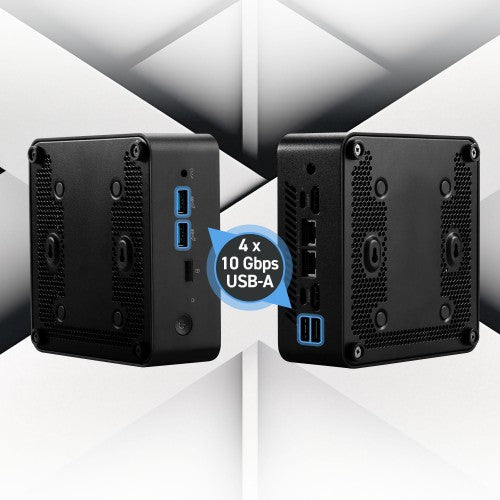

• The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels

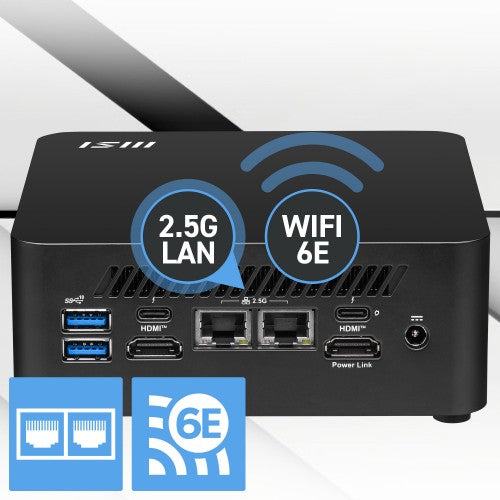

• WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports
• dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords

Description

"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

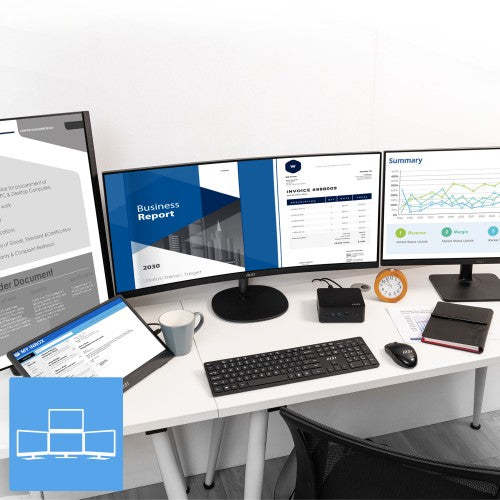

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

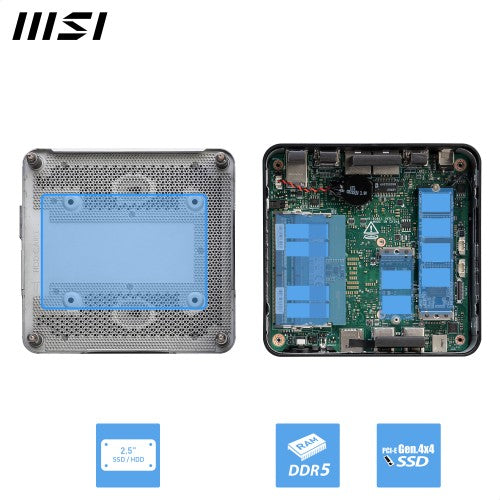

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.

Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

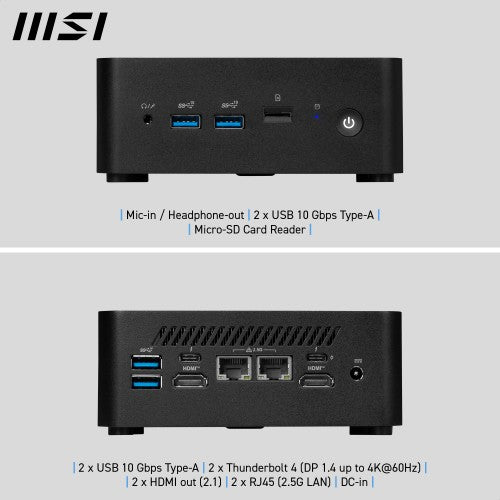

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"

Specifications

Motherboard
Motherboard form factor	NUC
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor
Built-in processor	Yes
Processor model	100U
Processor threads	8
Processor cores	6
Processor family	Intel Core 3
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor cache	10 MB
Performance cores	2
Efficient cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.9 GHz
Processor generation	Intel Core (Series 1)
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Supported memory clock speeds	5200 MHz
Maximum internal memory	64 GB
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	M.2, Serial ATA, Serial ATA II, Serial ATA III
Number of storage drives supported	3
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
SSD form factor	M.2
NVMe	Yes
Graphics
Number of displays supported	4
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Graphics
Audio
Built-in speaker(s)	No
Network
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Copper ethernet cabling technology	2.5GBASE-T
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Thunderbolt ports quantity	0
Serial port via internal header	No
Consumer infrared headers	No
Combo headphone/mic port	Yes
DC-in jack	Yes
COM ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB charging	Yes
Internal USB 2.0 ports quantity	0
TV-out	No
Mini HDMI ports quantity	0
HDMI version	1.4b/2.1
Mini DisplayPorts quantity	0
DisplayPorts quantity	0
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
Serial ports quantity	0
S/PDIF out port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Microphone in	No
Firewire (IEEE 1394) ports	0
Headphone outputs	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	2
eSATA ports quantity	0
DVI port	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
DVI-D ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt 4 ports quantity	2
USB4 Gen 2x2 ports quantity	0
Expansion slots
PCI Express x4 (Gen 2.x) slots	0
PCI-X slots	0
PCI slots	0
PCI Express x8 slots	0
PCI Express x4 slots	0
PCI Express x16 slots	0
PCI Express x1 slots	0
Mini PCI Express slots	0
Number of M.2 (M) slots	2
Mini PCI Express slot (half-length)	0
Mini PCI Express slot (full length)	0
Design
Motherboard form factor	NUC
VESA mounting	Yes
Product type	Mini PC barebone
Housing material	Plastic
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Panel mounting interface	75 x 75,100 x 100 mm
LED indicators	System
Cooling type	Active
Product colour	Black
Chassis type	0.84L sized PC
Performance
Motherboard form factor	NUC
Windows operating systems supported	Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Number of displays supported	4
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Operating system installed	No
Number of processors supported	1
Motherboard chipset	Intel SoC
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Quick start guide	Yes
Processor cores	6
Cooling type	Active
Chassis type	0.84L sized PC
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Introduction year	2024
Introduction month	July
Warranty period	3 year(s)
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Indication
LED indicators	System
Software
Windows operating systems supported	Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro
Operating system installed	No
Management features
On/off switch	Yes
Features
Number of displays supported	4
Logistics data
Country of origin	China
Sustainability
Sustainability certificates	ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Weight & dimensions
Width	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.45 g
Weight	0.625 g
Packaging content
Display included	No
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Mouse included	No
Quick start guide	Yes
Keyboard included	No
Other features
Chassis type	0.84L sized PC
Country of origin	China
Introduction year	2024
Introduction month	July
Warranty period	3 year(s)
