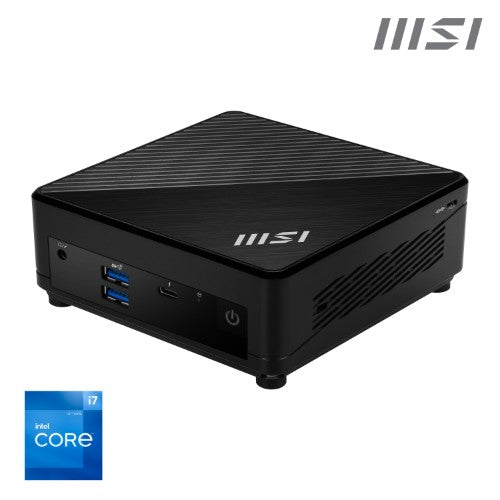

MSI Cubi 5 12M Intel Core i7 1255U Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPort/Dual LAN/WiFi 6E/BT 5.3/VESA

MSI Cubi 5 12M Intel Core i7-1255U Barebone, Mini-PC, SFF, ThunderBolt 4 Type-C, USB 3.2 Gen2, HDMI, DisplayPort, Dual LAN, WiFi, BT, VESA, Supports Max 64GB DDR4 SO-DIMM (2 Slots), M.2 (1 Slot), 2.5'SSD/HDD (1 Slot)

Key Features

• Up to 12th Gen Intel® Core™ i7 Processors
• Support up to 8K UHD Display

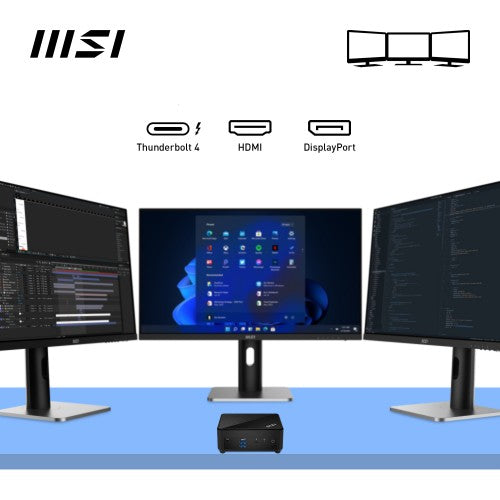

• Support three displays that allow you to see more and do more
• Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
• Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
• Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
• Experience 75% lower latency with WiFi 6E technology(optional)
• FW TPM design secures your confidential data with encryption keys
• Supports standard VESA-mount

Description

"Cubi 5 12M: The Energy Efficient Mini-PC

The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

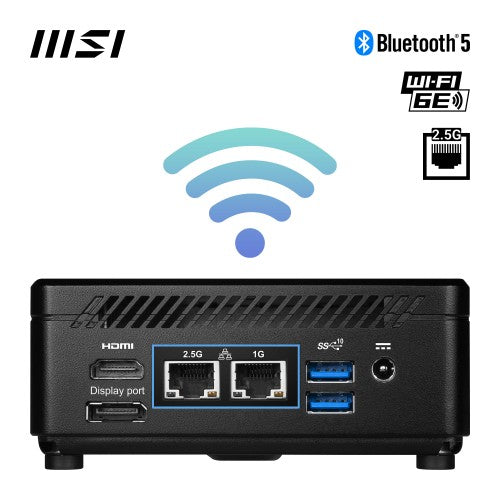

The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.

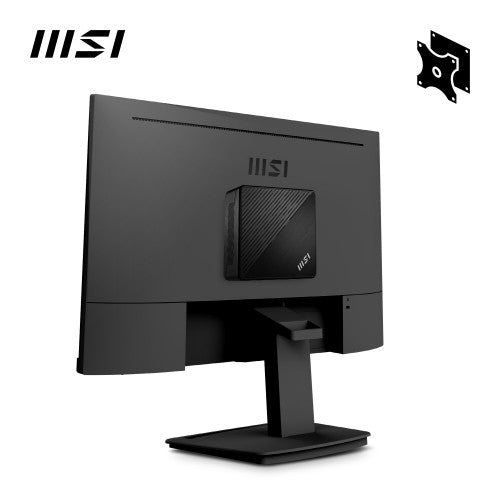

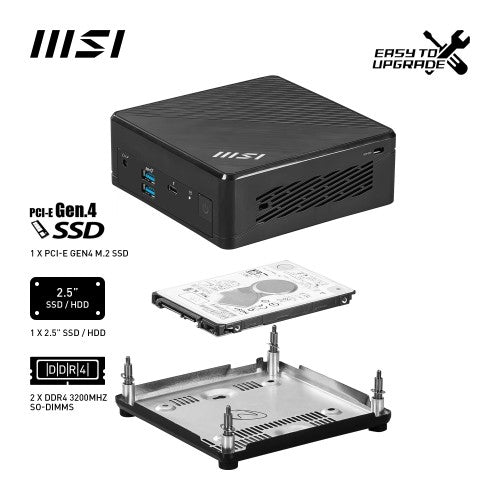

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

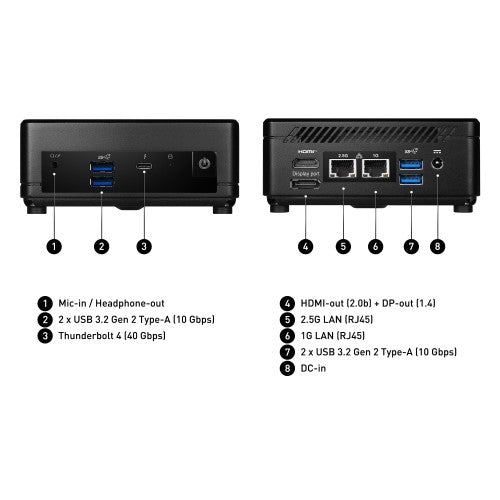

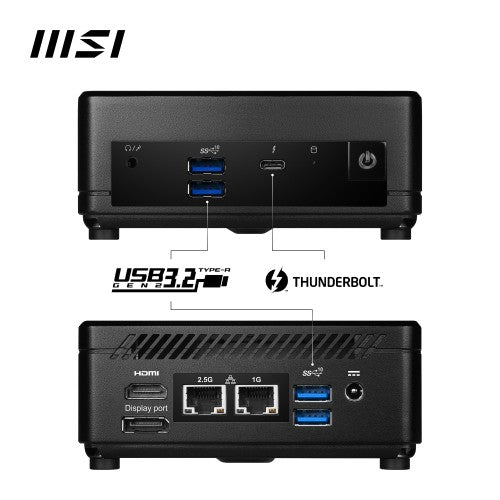

Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."

Specifications

Motherboard
Motherboard form factor	NUC
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor
Thermal Design Power (TDP)	15 W
Built-in processor	Yes
Processor model	i7-1255U
Processor boost frequency	4.7 GHz
Processor threads	12
Processor lithography	14 nm
Processor cores	10
Processor family	Intel® Core™ i7
Number of processors supported	1
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor cache	12 MB
Performance cores	2
Efficient cores	8
Performance-core boost frequency	4.7 GHz
Efficient-core boost frequency	3.5 GHz
Processor generation	12th gen Intel® Core™ i7
Memory
Memory slots type	SO-DIMM
Number of memory slots	2
Memory channels	Dual-channel
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	M.2, Serial ATA III
Number of storage drives supported	2
SSD form factor	2.5"
NVMe	Yes
Graphics
Number of displays supported	3
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
DisplayPort version	1.4
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Mini HDMI ports quantity	0
HDMI version	2.0b
Mini DisplayPorts quantity	0
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	2
DVI port	No
DVI-D ports quantity	0
Thunderbolt 4 ports quantity	1
Expansion slots
Number of M.2 (M) slots	1
Design
Motherboard form factor	NUC
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	0.66L sized PC
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM
Performance
Motherboard form factor	NUC
Number of displays supported	3
Operating system installed	No
Number of processors supported	1
Motherboard chipset	Intel SoC
Colour
Product colour	Black
Technical details
Panel mounting interface	100 x 100 mm
Quick start guide	Yes
Processor cores	10
Cooling type	Active
Chassis type	0.66L sized PC
Warranty period	2 year(s)
Packaging data
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Package width	221 mm
Package depth	506 mm
Package height	469 mm
Package weight	1.33 kg
Certificates
Certification	FCC, CB/CE, UL & CUL, VCCI, RCM
Indication
LED indicators	Yes
Software
Operating system installed	No
Management features
On/off switch	Yes
Features
Number of displays supported	3
Logistics data
Country of origin	China
Power
Power supply type	External AC adapter
Power supply	65 W
Number of power supply units	1
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	0 - 85%

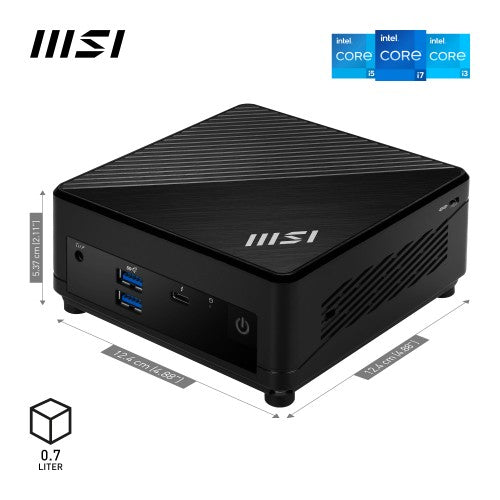

Weight & dimensions
Width	124 mm
Depth	124 mm
Height	53.7 mm
Package width	221 mm
Package depth	506 mm
Package height	469 mm
Package weight	1.33 kg
Weight	590 g
Packaging content
Display included	No
Power cord included	Yes
Drivers included	Yes
AC adapter included	Yes
Mouse included	No
Quick start guide	Yes
Keyboard included	No
Other features
Chassis type	0.66L sized PC
Country of origin	China
Warranty period	2 year(s)
