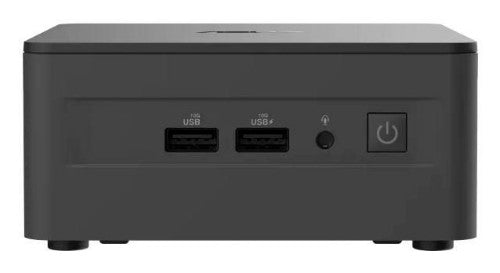

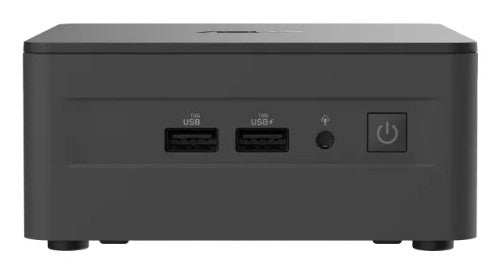

ASUS NUC 13 RNUC13ANHi50000 UCFF Black i5-1340P

NUC 13 Pro, Intel Core i5-1340P Processor (12M Cache | up to 4.60 GHz), up to 64GB dual-channel DDR4-3200 SODIMMs

Key Features

• Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
• For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
• Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays

Description

Business Driver. Space Saver.
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.

Specifications

Motherboard
Motherboard form factor	UCFF
Number of processors supported	1
Processor
Built-in processor	Yes
Processor model	i5-1340P
Processor boost frequency	4.6 GHz
Processor threads	16
Processor cores	12
Processor family	Intel® Core™ i5
Number of processors supported	1
Processor manufacturer	Intel
Processor cache	12 MB
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.6 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor generation	13th gen Intel® Core™ i5
Memory
Memory voltage	1.2 V
Memory slots type	SO-DIMM
Number of memory slots	2
ECC	No
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Maximum internal memory	64 GB
Video
On-board graphics card	Yes
Graphics card family	Intel
Storage
Supported storage drive types	SSD
Storage drive sizes supported	M.2
Number of storage drives supported	2
SSD form factor	M.2
NVMe	Yes
Graphics
Number of displays supported	4
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Iris Xe Graphics
Audio
Built-in speaker(s)	No
Network
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Intel I226-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ports & interfaces
Serial port via internal header	No
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	1
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Expansion slots
PCI Express slots version	4.0
Design
Motherboard form factor	UCFF
VESA mounting	Yes
Product type	Mini PC barebone
On/off switch	Yes
LED indicators	Yes
Cooling type	Active
Product colour	Black
Chassis type	UCFF
Performance
Motherboard form factor	UCFF
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise
Linux operating systems supported	Yes
Number of displays supported	4
Number of processors supported	1
Colour
Product colour	Black
Technical details
Processor cores	12
Cooling type	Active
Chassis type	UCFF
Indication
LED indicators	Yes
Software
Windows operating systems supported	Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise
Linux operating systems supported	Yes
Management features
On/off switch	Yes
Features
Number of displays supported	4
Power
Power supply type	External AC adapter
Weight & dimensions
Width	117 mm
Depth	112 mm
Height	54 mm
Other features
Chassis type	UCFF
