Epson V12HB09080 document camera White 25.4 / 3.2 mm (1 / 3.2") CMOS USB/HDMI/Wi-Fi

1/ 3.2 " CMOS, 4K UHD, 4208 x 3120 px, 13 Mp, 362 x 159 x 85 mm / 586 x 159 x 554 mm, 2.8 kg

Key Features

• High-definition classroom content 4K UHD wireless visualiser with 13 mega-pixel camera and 60fps
• Fully flexible and portable Dual band wireless connectivity and lightweight design
• See every detail in large format 230x zoom ratio and microscope attachment
• Capture and record Capture real time content in 4K and share with others
• Complete peace of mind 5-year warranty as standard

Description

The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.

The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.

The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.

An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.

Specifications

Camera
Optical sensor size	25.4 / 3.2 mm (1 / 3.2")
Sensor type	CMOS
Effective sensor resolution	13 MP
Supported graphics resolutions	320 x 180, 320 x 240, 320 x 288 (QVGA), 640 x 360, 640 x 480 (VGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1920
Maximum frame rate	60 fps
HD type	4K Ultra HD
Lens system
Auto focus	Yes
Digital zoom	23x
Shooting area (WxD)	297 x 420 mm
Optical zoom	10x
Ports & interfaces
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

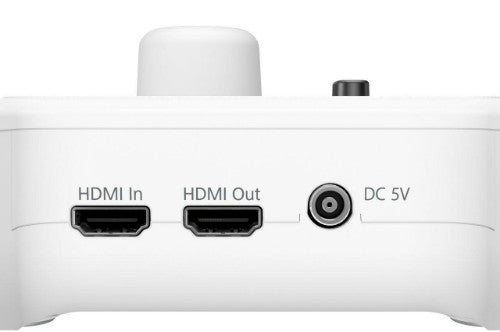

Interface	USB/HDMI/Wi-Fi
USB connector type	Mini-USB B, USB Type-A
USB 1.1 ports quantity	1
HDMI output ports quantity	1
HDMI input ports quantity	1
Technical details
Frame rate	60 fps
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Quantity per pack	1 pc(s)
Control type	Buttons
Display modes	Microscope, Motion
Anti-flicker	Yes
LED indicators	Yes
Warranty period	5 year(s)
Power
Power consumption (typical)	9.6 W
Power consumption (standby)	0.5 W
Weight & dimensions
Width	586 mm
Depth	159 mm
Height	554 mm
Weight	2.8 kg
Dimensions folded (WxDxH)	362 x 159 x 85 mm
Packaging data
Quantity per pack	1 pc(s)
