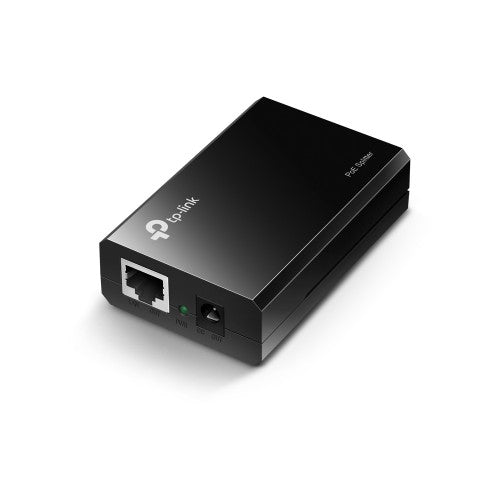

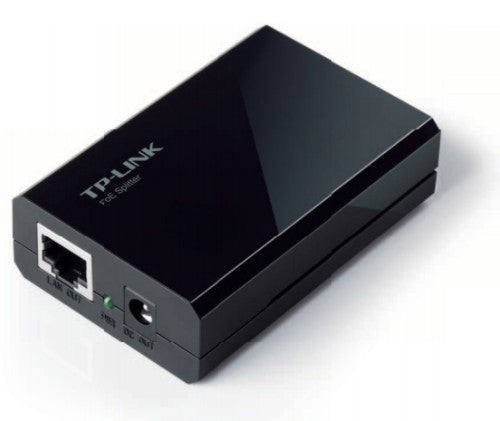

TP-Link TL-POE10R network splitter Black Power over Ethernet (PoE)

IEEE 802.3/802.3u/802.3ab/802.3af, 10/100/1000Mbps, PoE

Key Features

• IEEE 802.3af compliant
• Selectable power output
• Gigabit speed support
• Plug-and-Play, requires no configuration

Description

TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.

Specifications

Features
LED indicators	Power
Certification	FCC, CE
Plug and Play	Yes
Product colour	Black
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Performance
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Design
LED indicators	Power
Certification	FCC, CE
Plug and Play	Yes
Product colour	Black
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
DC-out jack	Yes
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE)	Yes
Input voltage	5, 9, 12 V
Operational conditions
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Technical details
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Colour
Product colour	Black
Weight & dimensions
Width	80.8 mm
Height	24 mm
Depth	54 mm
