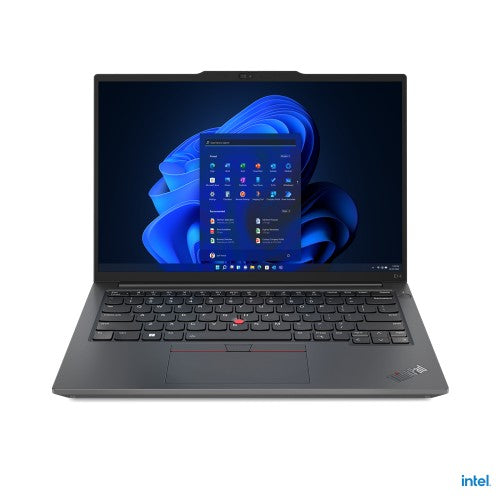

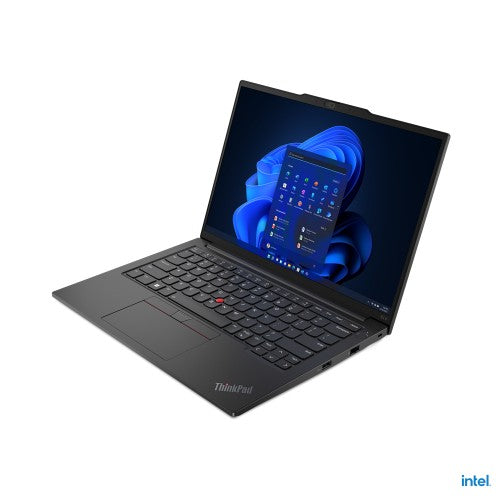

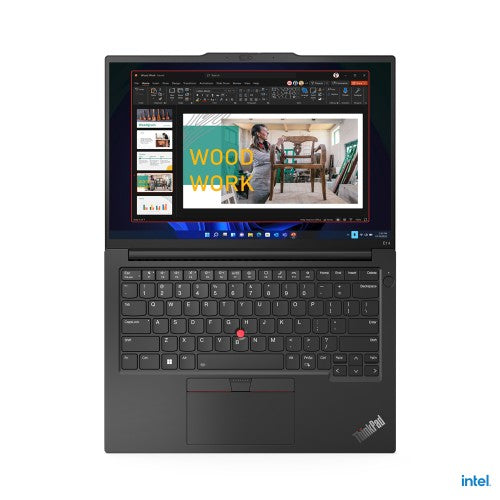

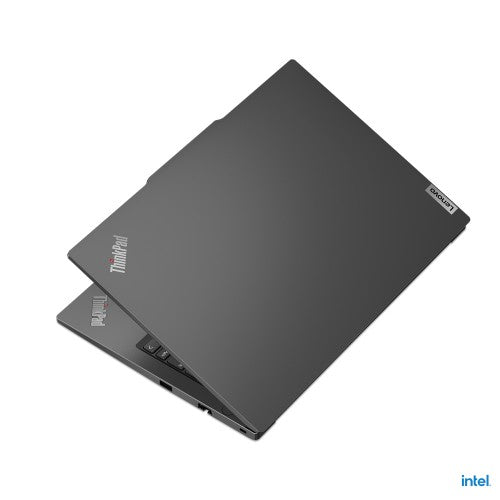

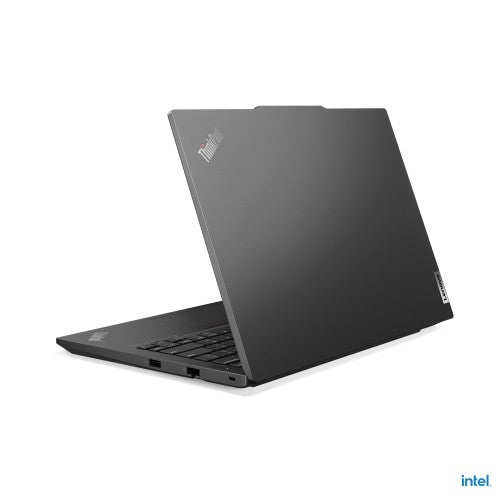

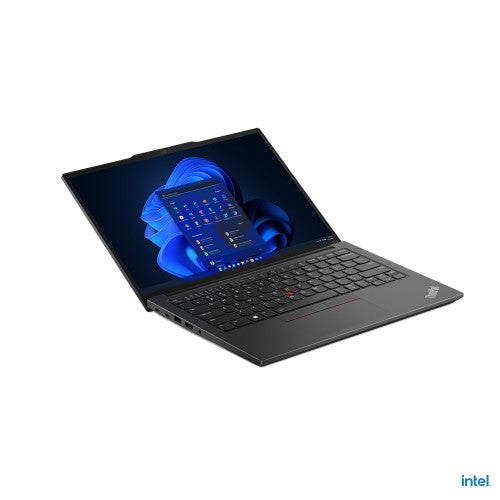

Lenovo ThinkPad E14 G5 Laptop | 14 Inch IPS | Intel Core i5-1335U 13th Gen Processor | 8GB RAM | 256GB SSD | Intel Iris Xe Graphics | Windows 11 Pro

Intel Core i5-1335U, 10C (2P + 8E)/12T, P-core 1.3/4.6GHz, E-core 0.9/3.4GHz, 12MB, 8GB DDR4-3200, 256GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0, 14" WUXGA (1920x1200) IPS 300nits Anti-glare 45% NTSC, Intel Iris Xe Graphics Functions as UHD Graphics, Wi-Fi 6 11ax 2x2 + BT5.1, FHD 1080p + IR Hybrid with Privacy Shutter, Windows 11 Pro

Key Features

• Intel Core i5-1335U, 10C (2P + 8E)/12T, P-core 1.3/4.6GHz, E-core 0.9/3.4GHz, 12MB
• 8GB DDR4-3200
• 256GB SSD M.2 2242 PCIe 4.0x4 NVMe Opal 2.0
• Intel Iris Xe Graphics Functions as UHD Graphics
• Windows 11 Pro

Description

Designed for day-to-day business performance

-

Durable high-performance laptop for business



-

Powerful Intel® Core™ processors & optional discrete graphics



-

Great for multitasking, with plenty of memory and fast storage



-

Steadfast security options



-

Gorgeous 14″ display, up to WUXGA+ (2240 x 1400)

Specifications

Design
Colour name	Graphite black
Product type	Laptop
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black, Graphite
Display
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Display brightness	300 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	No
Display resolution	1920 x 1200 pixels
Display diagonal	35.6 cm (14")
Anti-glare screen	Yes
Maximum refresh rate	60 Hz
RGB colour space	NTSC
Colour gamut	45%
Native aspect ratio	16:10
Processor
Processor generation	13th gen Intel® Core™ i5
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Processor cache	12 MB
Processor model	i5-1335U
Processor boost frequency	4.6 GHz
Processor cores	10
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core Max Turbo Frequency	4.6 GHz
Performance cores	2
Efficient cores	8
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	40 GB
Memory channels	Dual-channel
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
Card reader integrated	No
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
Audio
Audio chip	Synaptic CX11880
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Windows Hello	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Near Field Communication (NFC)	No
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed
Antenna type	2x2

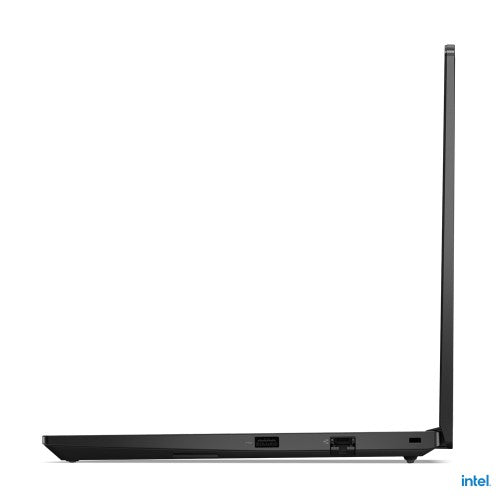

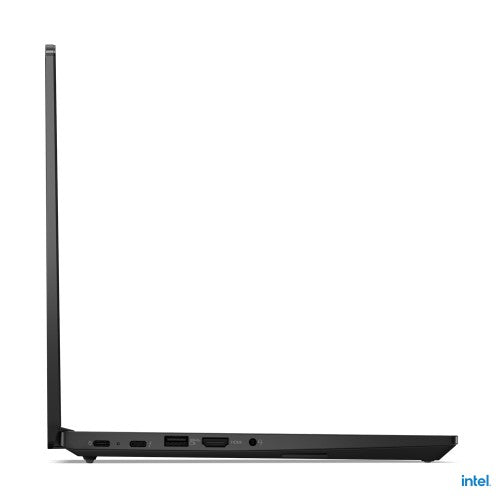

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Performance
Motherboard chipset	Intel SoC
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	UK English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Technical details
Housing material	Aluminium
Form factor	Clamshell
Product colour	Black, Graphite
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Compliance certificates	RoHS
Processor special features
CPU configuration (max)	1
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Power Delivery (USB PD)	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	BIOS, Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Windows Hello	Yes
Smart card reader	No
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Certificates
Certification	MIL-STD-810H FSC certified package
Compliance certificates	RoHS
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
Width	313 mm
Depth	219.3 mm
Height	18 mm
Weight	1.53 kg
Other features
On-board graphics card	Yes
Audio system	Dolby Atmos
Maximum shipping altitude	3048 m
Anti-glare screen	Yes
