StarTech.com M.2 NVMe to 2.5/3.5" SATA Drive Duplicator, Dual Bay Standalone SSD Cloner/Drive Dock, Bidirectional NVMe to SATA / SATA to NVMe, Up to 27GBpm, TAA

StarTech.com M.2 NVMe to 2.5"/3.5" SATA Drive Duplicator, Dual Bay Standalone Cloner/Drive Dock, 27GB/min, NVMe to SATA / SATA to NVMe, TAA

Key Features

• STANDALONE BIDIRECTIONAL CLONING: Copy an M.2 NVMe drive to a 2.5/3.5" SATA SSD/HDD, or clone from a SATA drive to M.2 NVMe without the need for a computer; Up to 27GB/min sector-by-sector duplication copies the entire drive; Works with any file format
• M.2 NVME AND SATA DOCK: USB 10Gbps (USB 3.2) host connection enables external access and storage for M.2 NVMe and SATA SSD/HDDs; Perform data transfer without installing the drives internally; Supports up to SATA III (6Gbps) and PCIe Gen3x2 (7.8Gbps)
• WIDE COMPATIBILITY: No drivers or software required; Toaster-style SATA drive bay fits all standard 2.5/3.5" SATA drives; M.2 NVMe slot supports 2242, 2260, & 2280 types; Supports 4Kn sector sizes; Target disk must be equal to or larger than source disk
• APPLICATIONS: Seamlessly clone data from legacy SATA drives to M.2 NVMe; Backup data from M.2 NVMe to a SATA SSD/HDD; Ideal for hardware upgrades, IT system imaging and deployments, support tasks, and routine maintenance; USB-C Cable is included
• COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, drive activity, and progress; Top-loading design promotes greater passive cooling for optimal performance

Description

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB

Perform bidirectional cloning between M.2 NVMe and 2.5/3.5" SATA SSDs/HDDs without a computer, using this M.2 NVMe to SATA Drive Duplicator. The standalone sector-by-sector duplication supports SATA III (6Gbps) and works with any file format.

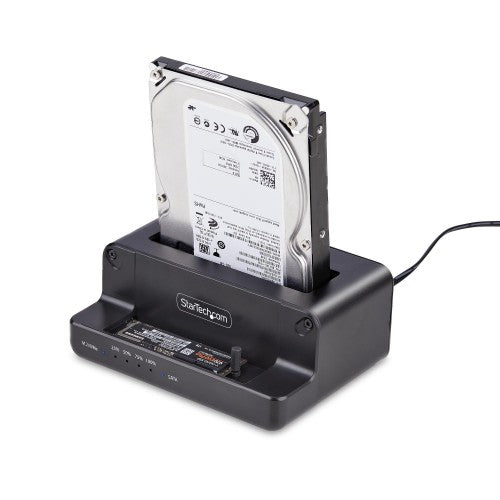

Standalone M.2 NVMe to SATA Cloner Dock

Clone an M.2 NVMe drive to a 2.5"/3.5" SATA SSD/HDD or vice versa. This solution is ideal for hardware upgrades, system imaging, or routine maintenance. The Duplicator Dock supports 2240, 2260, and 2280 M.2 NVMe sizes and fits all standard SATA drives, seamlessly combining both legacy and modern storage solutions.

External Drive Access over USB-C

The USB 3.2 Gen 2 (10Gbps) host connection provides external access to both M.2 NVMe and SATA drives, facilitating data transfer between systems without the need to install the drives internally.

Compact Form Factor

The Standalone M.2 NVMe to 2.5/3.5in SATA Cloner is portable and minimizes desk space usage. It enables instant data backup, and is ideal for IT Professionals when troubleshooting on-site, with the ability to re-image and re-deploy M.2 NVMe and SATA SSDs/HDDs without the need for a dedicated cloning station.

The SSD Cloner Dock features a top-loading design to promote passive airflow for consistent temperatures during peak performance. The Standalone Duplicator supports 4Kn sector size, TRIM, SMART, and UASP. Please note that the target disk must be equal to or larger than the source disk.

The StarTech.com Advantage

Specifications

Technical details
Product type	HDD/SSD duplicator
Chipset	JMS581D
Number of fans	0 fan(s)
LED indicators	Yes
Plug and Play	Yes
Package width	249 mm
Package height	65 mm
Number of simultaneous copies	1 copies
Interface	USB 3.2 Gen 2 (3.1 Gen 2)
Duplicator operating modes	Copy
Transfer rate	27 GB/min
Product colour	Black
Package depth	118 mm
Master (outer) case width	510 mm
Master (outer) case length	350 mm
Master (outer) case height	255 mm
Products per master (outer) case	20 pc(s)
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Features
Product type	HDD/SSD duplicator
Chipset	JMS581D
Number of fans	0 fan(s)
LED indicators	Yes
Plug and Play	Yes
Number of simultaneous copies	1 copies
Interface	USB 3.2 Gen 2 (3.1 Gen 2)
Duplicator operating modes	Copy
Transfer rate	27 GB/min
Product colour	Black
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Hard drive
SSD support	Yes
Supported HDD sizes	2.5,3.5"
Supported HDD interfaces	Serial ATA, Serial ATA II, Serial ATA III
SSD interface	M.2, PCI Express 3.0, PCI Express 3.1
Power
Output voltage	12 V
Output current	3 A
Input current	1.5 A
AC input voltage	100 - 240 V
Power plug type	Type M
Included power plug types	ANZ, EU, JP, NA, UK
Power consumption (typical)	0.1 W
Weight & dimensions
Weight	292 g
Dimensions (WxDxH)	100 x 140 x 55 mm
Packaging data
Package width	249 mm
Package height	65 mm
Package weight	600 g
Package depth	118 mm
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 85%
Colour
Product colour	Black
Other features
Output voltage	12 V
Logistics data
Master (outer) case width	510 mm
Master (outer) case length	350 mm
Master (outer) case height	255 mm
Products per master (outer) case	20 pc(s)
