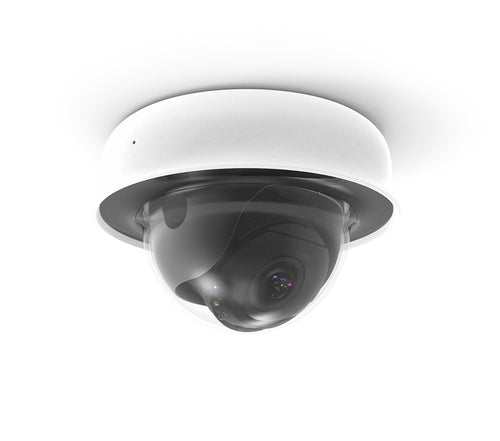

Cisco Meraki MV22 Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

1/3” 4MP (2688x1520) progressive CMOS image sensor, 256GB SSD, 3-9mm focal length, IR 30m, RJ-45, 802.11 a/b/g/n/ac, 706g

Key Features

• Meraki dashboard simplifies operation
• Machine learning capability for intelligent object detection
• Cloud-augmented edge storage minimizes physical infrastructure
• Suitable for deployments of all sizes: 1 camera or 10,000+
• Intelligent motion indexing with search engine
• Built-in motion analytics tools like motion search and motion heat maps
• Secure encrypted control architecture
• No special software or browser plugins required
• Granular user access controls
• Wireless options for easy upgrades from analog

Description

The MV Smart Camera family brings powerful, advanced analytics to the typical security camera world. With a powerful processor the same kind found on many of today’s smartphones—and an
innovative architecture which minimizes physical infrastructure as well as software requirements, these smart cameras from Cisco Meraki represent a shift from cameras simply ensuring physical safety and security, to providing powerful business intelligence as well.

MV: BEYOND JUST SECURITY
MV cameras feature an innovative architecture which places high-endurance storage locally on the camera and removes the network video recorder (NVR) from the equation. Not only does this drastically simplify both installation and scaling, but it also eliminates a major network security vulnerability in the IT infrastructure.

Features like LLDP insights, offline device alerting, and built-in remote troubleshooting tools reduce time to resolution and free up personnel to make IT improvements, providing added business value. And, because MV is managed through the browser-based Meraki dashboard and operates using a licensing model, there’s no need to purchase, download, and maintain any additional software. Management through the Meraki dashboard ensures firmware updates will continually roll out over the lifespan of the product, meaning its value will only increase over time.

Featuring an industry-leading processor, these cameras are not only capable of providing high definition (1080p) video, but they also allow for on-board analytics capabilities that previously required additional software and heavy-duty hardware.
Harnessing the power of computer vision and machine learning, this camera line can dynamically classify people as objects within a frame. This simple-seeming insight builds the foundation for more effective and efficient processes, like people counting. And the best part is that they will only get smarter, and more accurate, over time.

Specifications

Performance
Antenna type	Internal
Antenna gain level (max)	4.4 dBi
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor
Day/night mode	Yes
Plug and Play	Yes
Design
IK code	IK08
Form factor	Dome
Product colour	Black, White
Mounting type	Ceiling
Camera
Minimum illumination	0.01 lx
Tilt angle range	0 - 65°
Pan range	0 - 354°
Angle of rotation	90°
Camera shutter speed	1/30 - 1/32000 s
Lens viewing angle, horizontal	112°
Lens viewing angle, vertical	57°
Lens viewing angle, diagonal	138°
Progressive scan	Yes
Image sensor
Number of effective pixels (H x V)	2688 x 1520 pixels
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 3 mm (1 / 3")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	2.3
Minimum aperture number	1.2
Optical zoom	3x
Focal length range	3 - 9 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Video
Video compression formats	H.264
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	20 fps
Total megapixels	4 MP
Network
Bluetooth	No
Networking standards	IEEE 802.3af
Frequency band	5 GHz
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Storage
Cloud services supported	Meraki
Built-in HDD	No
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45
Connectivity technology	Wired
Security
Video motion detection	Yes
Security algorithms	256-bit AES, AES, EAP-TTLS, TKIP, WPA, WPA2-Enterprise, WPA2-PSK
Management features
Reset button	Yes
Power
Power source type	PoE
Power consumption (max)	12.95 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Height	97 mm
Diameter	14.9 cm
Weight	706 g
Weight (with stand)	842 g
Packaging content
Number of cameras	1
Quick installation guide	Yes
Mounting kit	Yes
Other features
Video compression formats	H.264
Logistics data
Harmonized System (HS) code	85258900
