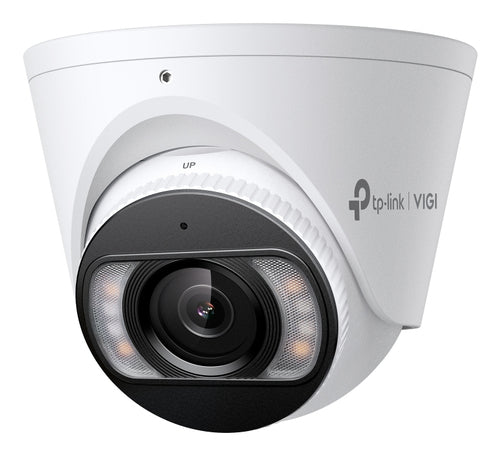

TP-Link INSIGHT S445 Turret IP security camera Outdoor 2688 x 1520 pixels Ceiling

VIGI 4MP Full-Color Turret Network Camera, 1/2.7”, 1/3 to 1/10000 s, F1.6, 2688 x 1520, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12 W, IP67, 111 x 111 x 83.7 mm, 0.48 kg, White

Key Features

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Description

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specifications

Performance
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Maximum operating distance	80 m
Dynamic range	120 dB
Design
Weatherproof	Yes
Form factor	Turret
Product colour	White
Mounting type	Ceiling
Protection features	Waterproof
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 90°
Camera shutter speed	1/3 to 1/10000
Lens viewing angle, horizontal	80.4°
Lens viewing angle, vertical	41.8°
Lens viewing angle, diagonal	98.7°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Panoramic camera
Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	52 dB
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Yes
Lens system
Maximum aperture number	1.6
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Fixed focus	Yes
Fixed focal length	4 mm
Night vision
Night vision	Yes
LED type	IR/White
Video
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Back Light Compensation (BLC)	Yes
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2688 x 1520 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Total megapixels	4 MP
Video recording	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Built-in speaker(s)	Yes
Sample rate	8 kHz
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	G.711 A-law
Bit rate range	0 - 64 Kbit/s
Number of microphones	1
Network
Bluetooth	No
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live view	Yes
Storage
Maximum memory card size	512 GB
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Alert notification type	Push notification
Motion sensor	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Built-in siren	Yes
Digest authentication	Yes
Management features
Web browser	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC, PoE
Power consumption (max)	11 W
Power consumption (Power over Ethernet (PoE))	12 W
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Package type	Box
Length	111 mm
Width	111 mm
Height	83.7 mm
Weight	480 g
Packaging data
Package type	Box
Packaging content
Number of cameras	1
Screws included	Yes
Package type	Box
Mounting kit	Yes
Manual	Yes
Drilling template included	Yes
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
