4MP, 2.12 mm, 2.4 GHz / 5 GHz Wi-Fi, IP65

Key Features

  • Flexible monitoring for any space
  • Supercharging security with powerful AI tools
  • Streamlining management with intuitive integrations
  • Maximizing security without sacrificing privacy

Description

Flexible monitoring for any space

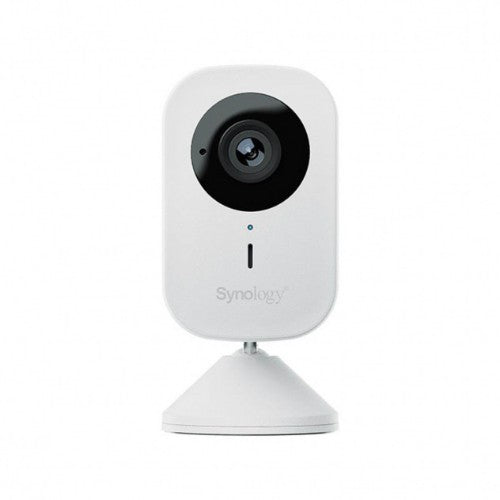

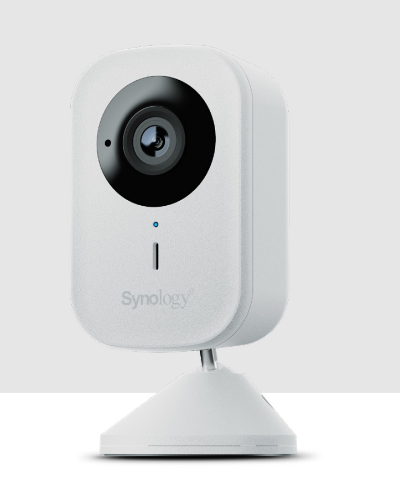

Compact, wide-angle, WiFi-connected camera for protecting any space.

Crystal clear footage, in all lighting conditions
High Dynamic Range (HDR) provides clear, detailed footage in high-contrast lighting, even with dark shadows.

High quality video, increased storage efficiency
Smart Bitrate Control provides high-quality video while reducing storage and network requirements by up to 70%.

Supercharging security with powerful AI tools
Camera-based AI capabilities help you efficiently monitor and analyze your surveillance.

Robust security withy AI capabilities

People & Vehicle Detection

People and Vehicle Detection distinguishes people and vehicles from other moving objects with high accuracy.

Intrusion Detection
Intrusion Detection identifies people and vehicles, and issues alerts when a virtual border is crossed from a designated direction.

Instant Search
Instant Search facilitates faster investigation, enabling users to look up occurrences of people, vehicles, and motion within a specific area.

Auto Tracking
Auto Tracking seamlessly locks onto and trails the moving target, ensuring continuous centering on the screen.

People & Vehicle Counting
Gauge occupancy levels with aggregated counting of people and vehicles entering and leaving your premises, with automatic alerts when capacity is reached.

Maximizing AI capabilities with Synology DVA
Pair with Synology DVA models for more intelligent analytics, such as Face Recognition and License Plate Recognition.

Streamlining management with intuitive integrations
Integrations with Surveillance Station help to streamline deployment and maintenance.

Effortless mobile connection
Easily add and manage cameras on your network using the DS Cam mobile app.

Seamless setup and auto updates
Easy setup, auto updates, and seamless monitoring on Surveillance Station or DS cam.

License-free Surveillance Station
No Surveillance Device License purchase or activation required.

Maximizing security without sacrificing privacy
From recording to archiving, protect your footage with our integrated safeguards.

Uninterrupted recording
In unstable or poor network conditions, these cameras automatically record to a microSD card, guaranteeing access to clear, uncorrupted footage regardless of network conditions.

Sensitive data masking
Privacy masks can be permanently embedded into recorded footage or applied to live view to cover sensitive areas.

HTTPS and SRTP support
HTTPS and SRTP support enables encrypted network and video transfers, authentication, and integrity protection.

NDAA compliance
The CC400W camera meets US government procurement regulations.

Stay in the know with DS cam
DS cam is the powerful mobile companion app for Surveillance Station, available for free on iOS and Android.

Receive immediate, smart alerts
Receive notifications on your phone the moment events are triggered. Quickly review the day's alerts with a few taps.

See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look.

Define detection zones
Select specific areas you want to monitor for accurate and relevant alerts.

Specifications

Performance
Infrared (IR) cut-off filter Yes
Type IP security camera
Connectivity technology Wireless
Placement supported Indoor & outdoor
Auto-tracking Yes
Design
Form factor Cube
Product colour White
Mounting type Ceiling/Wall/Desk
International Protection (IP) code IP65
Camera
Camera shutter speed 1/30 - 1/16000 s
Lens viewing angle, horizontal 125°
Lens viewing angle, vertical 72°
Lens viewing angle, diagonal 145°
Image sensor
Optical sensor size 25.4 / 3 mm (1 / 3")
Lens system
Number of lenses 1
Maximum aperture number 2
Detect distance 45 m
Observe distance 18 m
Recognize distance 9 m
Identify distance 4.5 m
Fixed focus Yes
Fixed focal length 2.12 mm
Night vision
Night vision Yes
Night vision distance 10 m
Infra-red wavelength 850 nm
Video
Noise reduction Yes
Noise reduction technology 2D noise reduction, 3D noise reduction
Maximum resolution 2560 x 1440 pixels
Frame rate 30 fps
Total megapixels 4 MP
Audio
Built-in microphone Yes
Audio system 2-way
Audio detection Yes
Network
Bluetooth No
Ethernet LAN No
Wi-Fi Yes
Storage
Maximum memory card size 256 GB
Card reader integrated Yes
Built-in HDD No
Compatible memory cards MicroSD (TransFlash)
Ports & interfaces
Connectivity technology Wireless
Security
Privacy protection Yes
Intelligent Video Surveillance (IVS) system features Face detection, Human detection, Intrusion, Vehicle detection
Video motion detection Yes
Management features
Reset button Yes
Power
Power source type DC
DC output voltage 5
Operational conditions
Operating temperature (T-T) -20 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Height 110 mm
Diameter 5.4 cm
Weight 200 g
Packaging content
Number of cameras 1
Screws included Yes
Manual Yes
