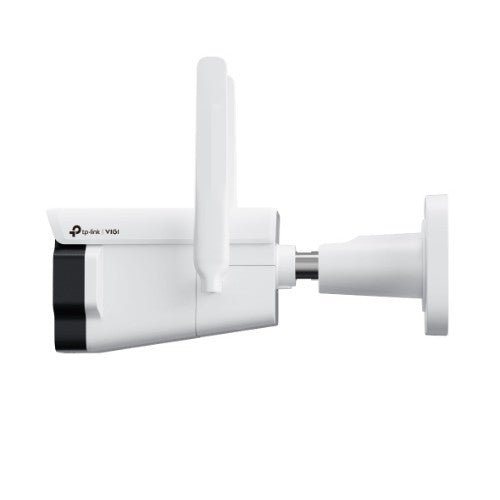

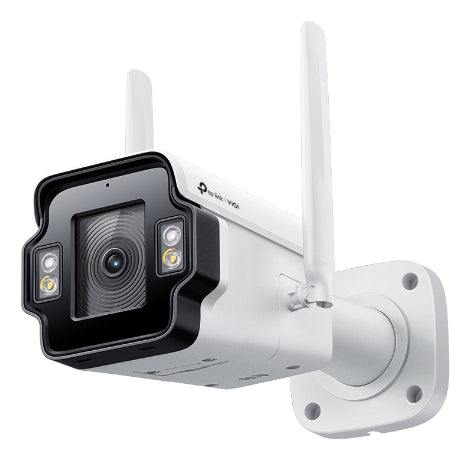

TP-Link INSIGHT S345-4G Bullet IP security camera Outdoor 2688 x 1520 pixels Wall

VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera, 4 mm, 1/2.7”, 1/3 to 1/10000 s, F1.6, 2688 x 1520, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug, 690~960, 1710~2690MHz Dipole Omni-Directional Antenna, IP66, 256 x 122 x 101 mm, 1.09 kg, White

Key Features

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Description

4G and 3 LAN Ports, Hassle-free Deployment
4MP Outdoor Full-Color 4G Bullet Network Camera

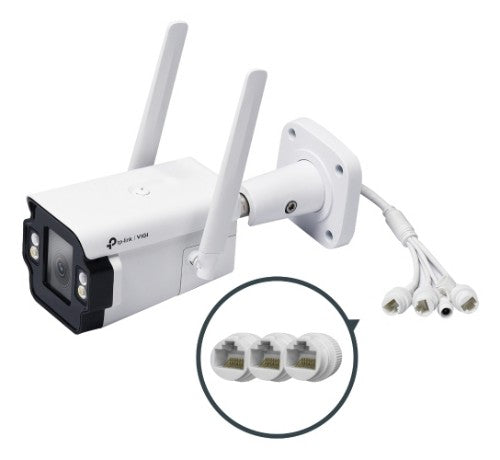

3 LAN Ports Meet Minimal Deployment Effort

InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

LightPro Night Vision Technology

The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specifications

Performance
Antenna type	External
Infrared (IR) cut-off filter	Yes
Antennas quantity	2
Remote viewing	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Maximum operating distance	80 m
Dynamic range	120 dB
Design
Weatherproof	Yes
Form factor	Bullet
Product colour	White
Mounting type	Wall
Protection features	Waterproof
International Protection (IP) code	IP66
Housing material	Metal
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 90°
Camera shutter speed	1/3 to 1/10000
Lens viewing angle, horizontal	80.4°
Lens viewing angle, vertical	41.8°
Lens viewing angle, diagonal	98.7°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Lens system
Maximum aperture number	1.6
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Fixed focus	Yes
Fixed focal length	4 mm
Night vision
Night vision	Yes
LED type	IR/White
Video
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Back Light Compensation (BLC)	Yes
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2688 x 1520 pixels
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Total megapixels	4 MP
Video recording	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Built-in speaker(s)	Yes
Sample rate	8 kHz
Built-in microphone	Yes
Audio system	2-way
Audio formats supported	G.711 A-law
Bit rate range	0 - 64 Kbit/s
Number of microphones	1
Network
Bluetooth	No
4G standard	LTE-TDD & LTE-FDD
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

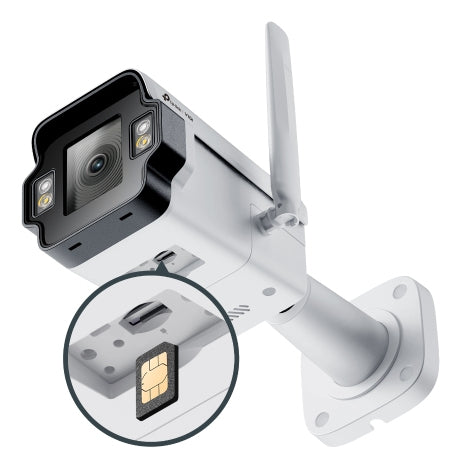

SIM card slot	Yes
Live view	Yes
SIM card type	NanoSIM
Mobile network generation	4G
Storage
Maximum memory card size	512 GB
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
DC-in jack	Yes
Connectivity technology	Wired
Security
Alert notification type	Push notification
Motion sensor	Yes
Detection distance	120 m
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Built-in siren	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Management features
Web browser	Yes
Web-based management	Yes
Reset button	Yes
Cloud-managed	Yes
Power
Power source type	DC
Power consumption (max)	9.7 W
Power consumption (Power over Ethernet (PoE))	10.7 W
DC-in jack	Yes
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Length	256 mm
Width	122 mm
Height	101 mm
Weight	1.09 kg
Packaging content
Number of cameras	1
Screws included	Yes
Mounting kit	Yes
Manual	Yes
Drilling template included	Yes
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
