5MP 1/2.7" CMOS, IP66, IK04, 4MP 2688 x 1512 (16:9) video, 10/100 MbE RJ45 port, PoE+, 14W

Description

Compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.

Specifications

Performance
Infrared (IR) cut-off filter Yes
Type IP security camera
Connectivity technology Wired
PTZ control Yes
Placement supported Indoor & outdoor
Day/night mode Yes
Built-in light Yes
Design
Weatherproof Yes
IK code IK04
Form factor Dome
Product colour Black
Mounting type Wall/Pole
Protection features Tamper resistant, Weatherproof
International Protection (IP) code IP66
Housing material Aluminium, Polycarbonate (PC)
Camera
Tilt angle range 0 - 100°
Pan range 0 - 350°
Camera pan control Yes
Camera tilt control Yes
Lens viewing angle, horizontal 99.7, 45.5°
Lens viewing angle, vertical 51.9, 25.4°
Lens viewing angle, diagonal 121, 52.4°
Image sensor
Sensor type CMOS
Optical sensor size 50.8 / 7 mm (2 / 7")
Number of sensors 1
Lens system
Maximum aperture number 2.4
Minimum aperture number 1.85
Zoom capability Yes
Optical zoom 2x
Focal length range 3.42–6.85
Night vision
Night vision Yes
Night vision distance 20 m
LED type IR
Video
Maximum resolution 2688 x 1512 pixels
Frame rate 30 fps
Total megapixels 4 MP
Audio
Built-in microphone Yes
Network
Bluetooth No
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Wi-Fi No
Storage
Built-in HDD No
Ports & interfaces

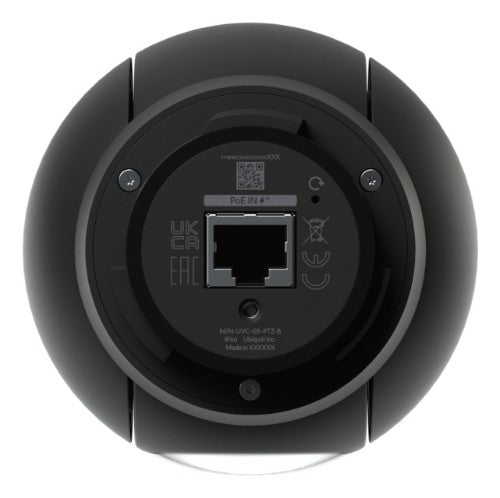

Ethernet LAN (RJ-45) ports 1
Connectivity technology Wired
Security
Intelligent Video Surveillance (IVS) system features Human detection, Pet detection, Vehicle detection
Management features
Reset button Yes
Power
Power source type PoE+, DC
Power consumption (max) 14 W
DC output voltage 37, 57
Operational conditions
Operating temperature (T-T) -30 - 45 °C
Operating relative humidity (H-H) 0 - 90%
Weight & dimensions
Height 90 mm
Diameter 15.2 cm
Weight 580 g
Sustainability
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

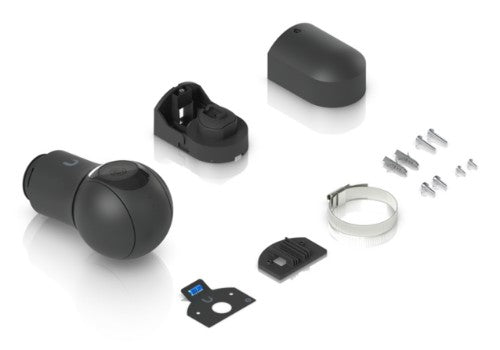

Packaging content
Number of cameras 1
Screws included Yes
Mounting kit Yes
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
