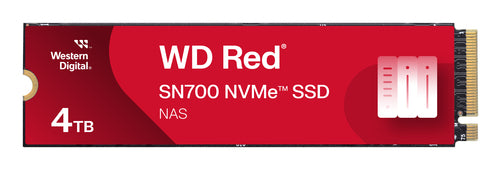

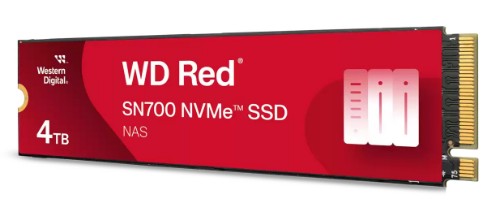

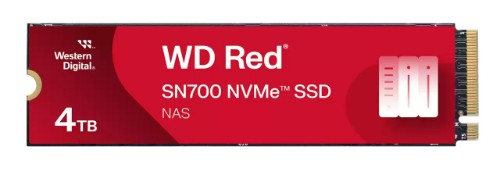

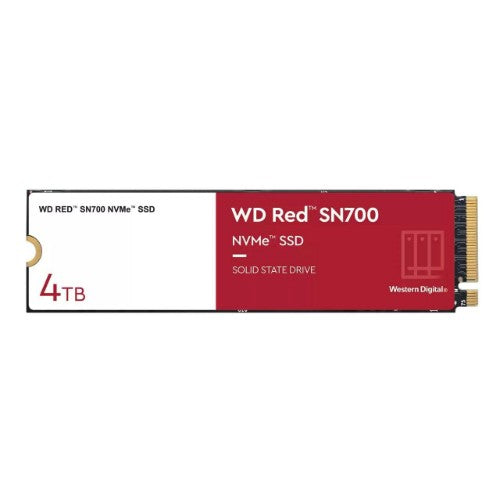

Western Digital WDS400T1R0C internal solid state drive 4 TB M.2 PCI Express NVMe

4TB, M.2 2280 S3-M, PCIe Gen3 x4

Description

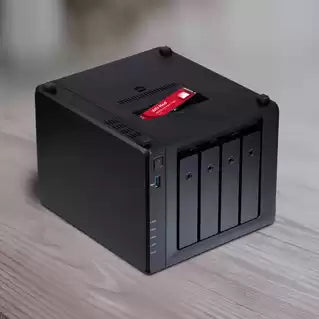

Accelerate Your NAS
Tackle extreme workloads in high-intensity NAS environments with the fast-caching WD Red SN700 NVMe™ SSD. The drive’s robust system responsiveness and exceptional I/O performance are perfect for multi-user, multitasking applications, letting you tame your SMB’s toughest projects from virtualization to collaborative editing to intensive database storage with efficient caching —all while helping to lower your TCO.

Accelerate Your NAS
The fast-caching power of the WD Red SN700 NVMe™ SSD delivers robust system responsiveness and exceptional I/O performance compared to our SATA SSDs.

Built to Last
Tackle 24/7 NAS workload environments with reliability and endurance of up to 5100 TBW (4TB1 model), backed by a 5-year limited warranty.2

Step Up to NVMe™
Tame your SMB’s toughest projects—from virtualization to collaborative editing to intensive database storage with efficient caching —with storage designed to outperform while helping to lower your TCO.

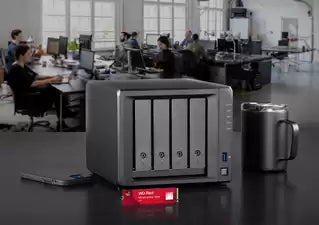

Perfect for SMBs
Even in smaller operations, multiple people working at the same time can tax a NAS device. NVMe caching easily handles random workloads in multi-user, multitasking applications to let small-to-medium businesses do more.

Scale Up to Keep Up
Keep ahead of the data explosion with huge capacities up to 4TB1.

Optimize Your Workflow
Purpose-built and tested to be compatible with many of today’s most popular NAS systems for maximum flexibility to optimize your workflow.

Specifications

Hard drive
SSD capacity	4 TB
Data transmission
Read speed	3400 MB/s
Write speed	3100 MB/s
Random write (4KB)	520000 IOPS
Random read (4KB)	550000 IOPS
Features
Interface	PCI Express
Component for	NAS
NVMe	Yes
TBW rating	2500
SSD capacity	4 TB
Read speed	3400 MB/s
Write speed	3100 MB/s
Random write (4KB)	520000 IOPS
Random read (4KB)	550000 IOPS
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Certificates
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Performance
Interface	PCI Express
Component for	NAS
NVMe	Yes
TBW rating	2500
SSD capacity	4 TB
Read speed	3400 MB/s
Write speed	3100 MB/s
Random write (4KB)	520000 IOPS
Random read (4KB)	550000 IOPS
Design
Component for	NAS
Certification	BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	7.5 g
Height	2.3 mm
Depth	80 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
Technical details
Interface	PCI Express
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-55 - 85 °C
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
