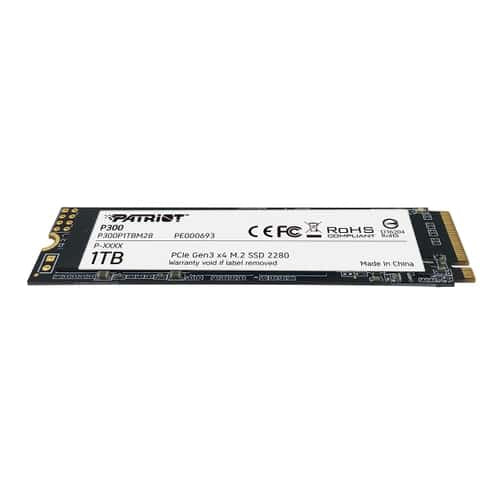

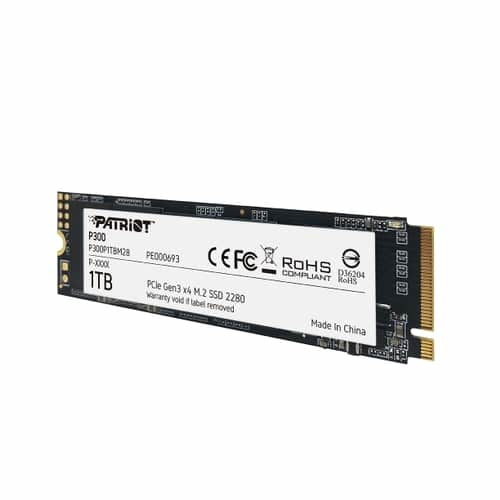

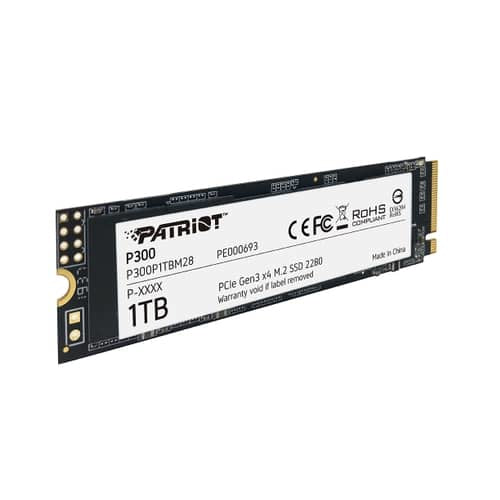

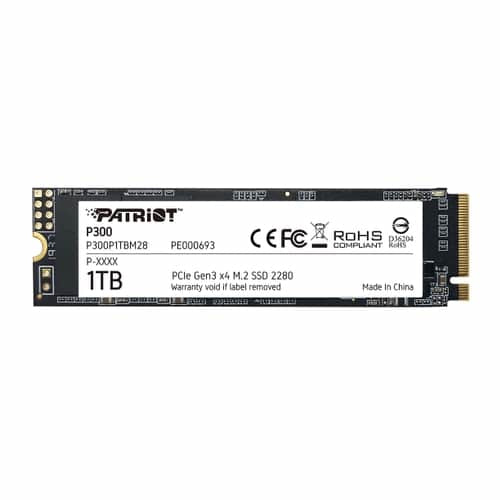

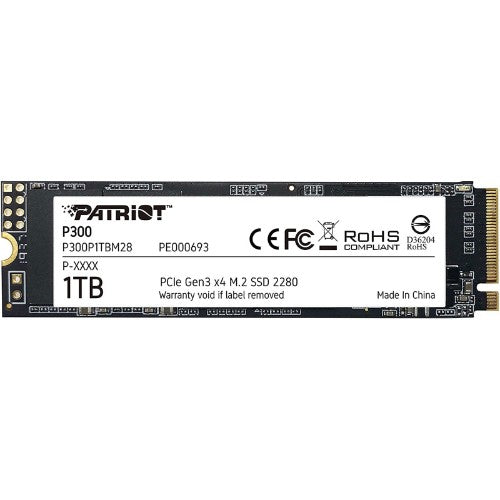

Patriot Memory P300 1.02 TB M.2 PCI Express 3.0 NVMe 3D NAND

1 TB, M.2 PCIe 3 x 4, NVMe 1.3, NANDXtend ECC

Key Features

• Built with the latest PCIe 3 x 4 controller
• 2280 m.2 PCIe NVMe Gen3 x 4 SSD
• NANDXtend ECC Technology
• HMB Technology
• Operating Temperature: 0~70°C
• TBW: 320TB
• O/S Supported: Windows® 7*/8*/8.1/10

Description

The P300 is Patriot’s next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1.02 TB
Memory type	3D NAND
Performance
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.3
Sequential write speed (CDM)	1650 MB/s
Sequential write speed (AS SSD)	1650 MB/s
Sequential read speed (CDM)	2100 MB/s
Sequential read speed (AS SSD)	2100 MB/s
Sequential read speed (ATTO)	2100 MB/s
Sequential write speed (ATTO)	1650 MB/s
TBW rating	480
PCI Express interface data lanes	x4
SSD capacity	1.02 TB
S.M.A.R.T. support	Yes
Read speed	2100 MB/s
TRIM support	Yes
Write speed	1650 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	260000 IOPS
Random read (4KB)	290000 IOPS
Mean time between failures (MTBF)	1500000 h
Data transmission
Read speed	2100 MB/s
Write speed	1650 MB/s
Random write (4KB)	260000 IOPS
Random read (4KB)	290000 IOPS
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.3
Sequential write speed (CDM)	1650 MB/s
Sequential write speed (AS SSD)	1650 MB/s
Sequential read speed (CDM)	2100 MB/s
Sequential read speed (AS SSD)	2100 MB/s
Sequential read speed (ATTO)	2100 MB/s
Sequential write speed (ATTO)	1650 MB/s
TBW rating	480
PCI Express interface data lanes	x4
SSD capacity	1.02 TB
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes
S.M.A.R.T. support	Yes
Read speed	2100 MB/s
TRIM support	Yes
Write speed	1650 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	260000 IOPS
Random read (4KB)	290000 IOPS
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
M.2 key ID	B+M
M.2 SSD size	2280 (22 x 80 mm)
Harmonized System (HS) code	84717070
Power
Power consumption (idle)	0.37 W
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	9 g
Height	3.8 mm
Depth	80 mm
Package width	100 mm
Package depth	6.6 mm
Package height	132 mm
Package weight	20 g
Package type	Blister
Packaging data
Package width	100 mm
Package depth	6.6 mm
Package height	132 mm
Cables included	No
Package weight	20 g
Manual	No
Quick start guide	No
Package type	Blister
Screws included	No
Manual languages	English
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Technical details
Interface	PCI Express 3.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
ECC	Yes
SSD form factor	M.2
Warranty period	5 year(s)
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes
Other features
Warranty period	5 year(s)
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA
Packaging content
Cables included	No
Manual	No
Quick start guide	No
Screws included	No
Logistics data
Harmonized System (HS) code	84717070
