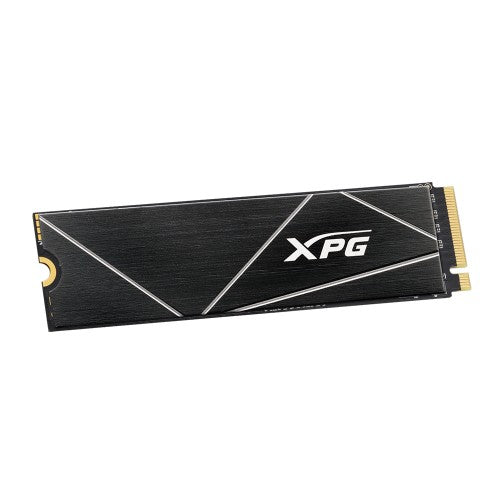

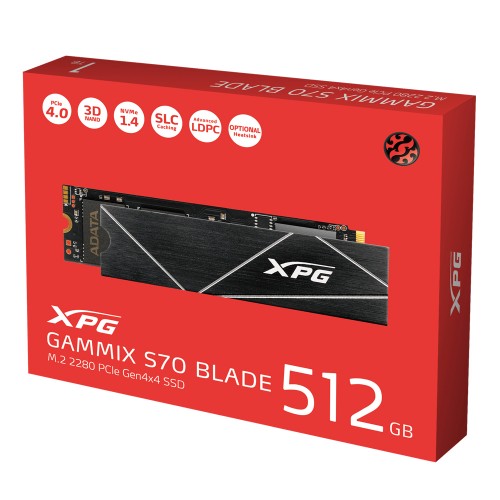

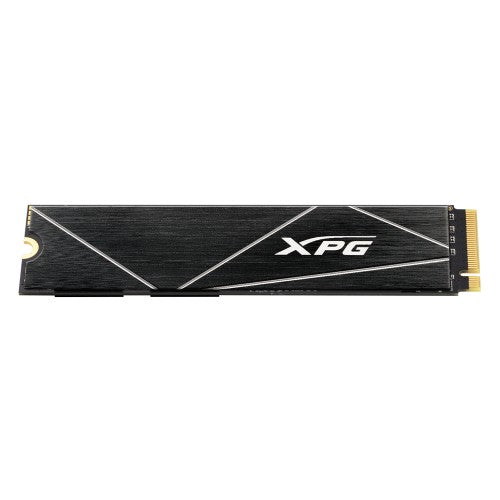

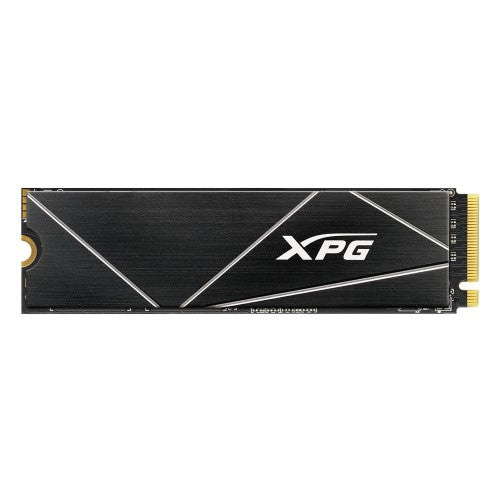

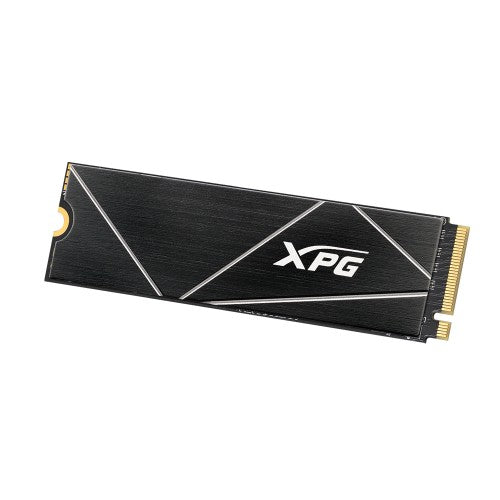

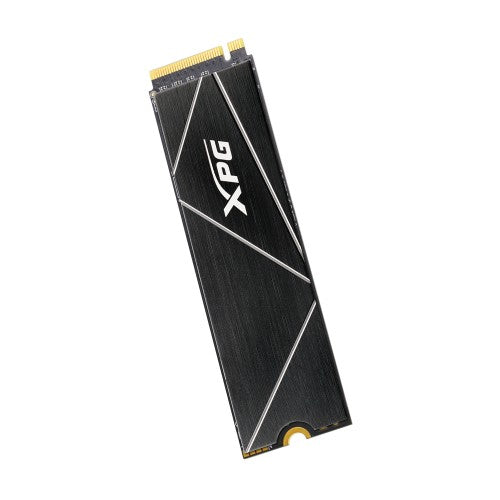

XPG GAMMIX S70 BLADE 512 GB M.2 PCI Express 4.0 NVMe 3D NAND

512 GB, M.2, PCIe Gen4x4, 3D NAND, 7400 MB/s read, 2600 MB/s write

Description

Speed Ahead with PCIe 4.0
With the latest PCIe Gen4 interface, the GAMMIX S70 BLADE will help you dominate the competition with sequential read/write performance of up to 7400/6800/MB per second. That's up to two times faster than PCIe 3.0 SSDs! For ease of use, it's backward compatible with PCIe 3.0.

Cool in the Heat of Battle
Sporting a robust high-temperature resistant aluminum heatsink, the GAMMIX S70 BLADE gets rid of heat effectively. So effective in fact it is able to reduce temperatures by up to 20 percent. Plus, the heatsink looks amazing too with its streamlined surface and ridged geometric lines.

Perfect for Compact and Thin Devices
Featuring a M.2 2280 form factor, the GAMMIX S70 BLADE is perfect for laptops and thinner devices, giving you the performance you need regardless of space constraints.

Works with PS5
Got a PS5 and need more capacity? The GAMMIX S70 BLADE is your answer. Plug one into your PS5 and enjoy better, smoother performance over the built-in storage.

Made to Perform
- Compliant with NVMe 1.4
- Higher capacities and enhanced efficiency and durability with 3D NAND Flash
- M.2 2280 specification: supports the latest generation PCIe 4.0 platform
- Perfect for avid gamers, overclockers, and PC enthusiasts

Boosting Your Performance
In combination with Dynamic SLC Caching and DRAM Cache Buffer, the GAMMIX S70 BLADE gives you a performance boost for video editing, rendering, and gaming.

The Ultimate Game Cache
Equipped with 3D NAND Flash memory, the S70 BLADE offers capacities of up to 4TB. What's more, with error correcting and protection technologies, it comes with a high Total Bytes Written (TBW) rating for excellent durability and longevity.

Security and Integrity
On top of its core performance characteristics, the S70 BLADE supports LDPC error correcting code technology to detect and fix a comprehensive range of data errors for accurate data transmissions. In addition, with End-to-End (E2E) Data Protection, RAID Engine support, and AES 256-bit Encryption, the S70 BLADE ensures data security and integrity.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	512 GB
Memory type	3D NAND
Data transmission
Read speed	7400 MB/s
Write speed	2600 MB/s
Random write (4KB)	510000 IOPS
Random read (4KB)	425000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Data retention	2000000 year(s)
Features
Interface	PCI Express 4.0
Component for	PC/Laptop
Controller type	Innogrit IG5236
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	2600 MB/s
Sequential write speed (AS SSD)	2400 MB/s
Sequential read speed (CDM)	7200 MB/s
Sequential read speed (AS SSD)	5700 MB/s
Sequential read speed (ATTO)	7400 MB/s
Sequential write speed (ATTO)	2600 MB/s
TBW rating	370
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	512 GB
Security algorithms	256-bit AES
Read speed	7400 MB/s
Data retention	2000000 year(s)
Write speed	2600 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	510000 IOPS
Random read (4KB)	425000 IOPS
Hardware encryption	Yes
SSD form factor	M.2
Harmonized System (HS) code	84717070
Performance
Interface	PCI Express 4.0
Component for	PC/Laptop
Controller type	Innogrit IG5236
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	2600 MB/s
Sequential write speed (AS SSD)	2400 MB/s
Sequential read speed (CDM)	7200 MB/s
Sequential read speed (AS SSD)	5700 MB/s
Sequential read speed (ATTO)	7400 MB/s
Sequential write speed (ATTO)	2600 MB/s
TBW rating	370
End-to-End Data Protection	Yes
PCI Express interface data lanes	x4
SSD capacity	512 GB
Security algorithms	256-bit AES
Read speed	7400 MB/s
Data retention	2000000 year(s)
Write speed	2600 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	510000 IOPS
Random read (4KB)	425000 IOPS
Hardware encryption	Yes
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	10 g
Height	4.3 mm
Depth	80 mm
Package type	Box
Packaging data
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Maximum operating temperature	70 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
ECC	Yes
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	M.2
Compliance certificates	CE, RoHS
Other features
Compliance certificates	CE, RoHS
Logistics data
Harmonized System (HS) code	84717070
