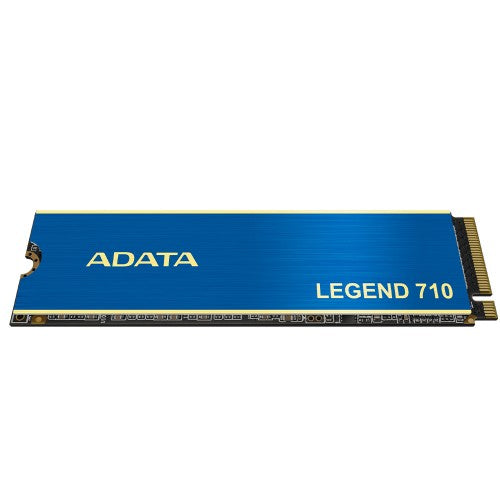

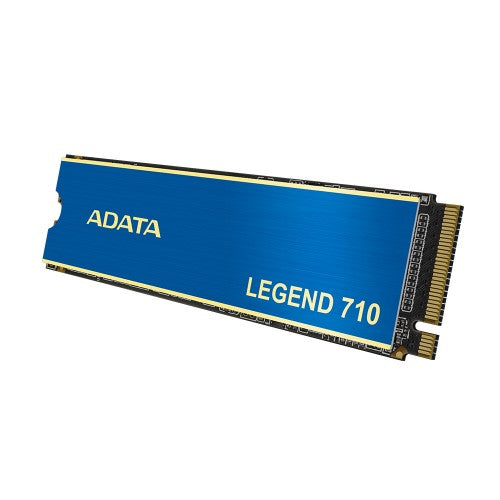

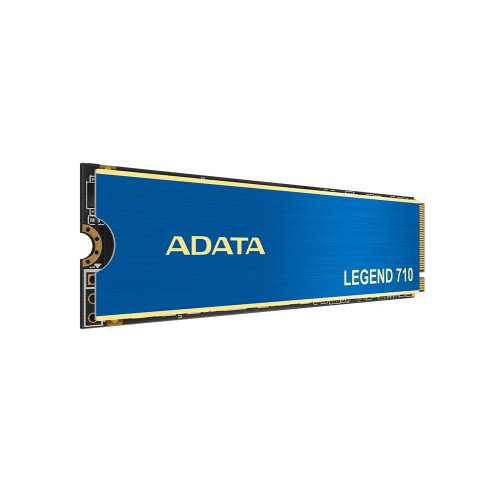

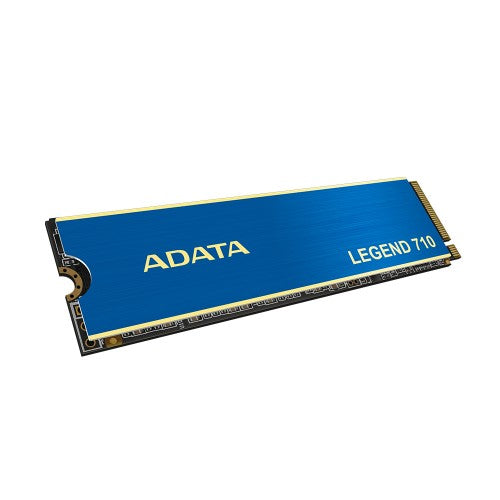

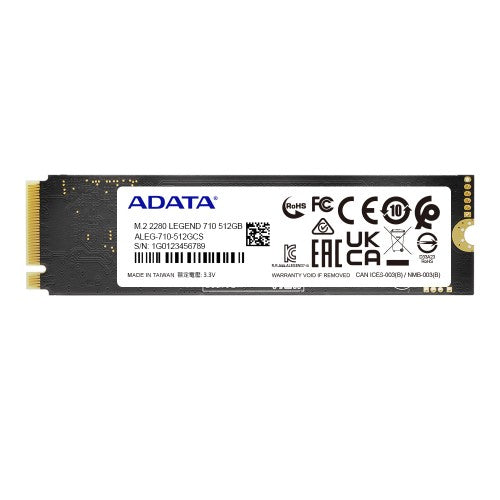

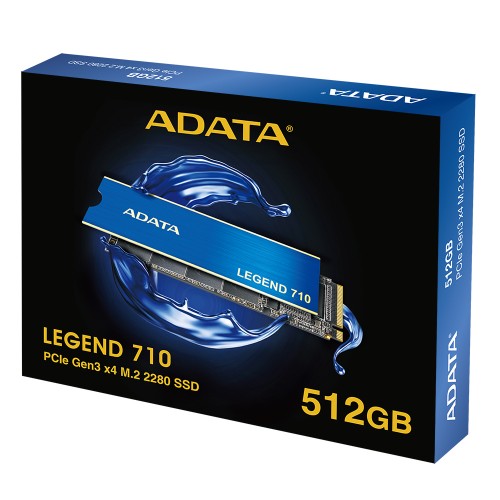

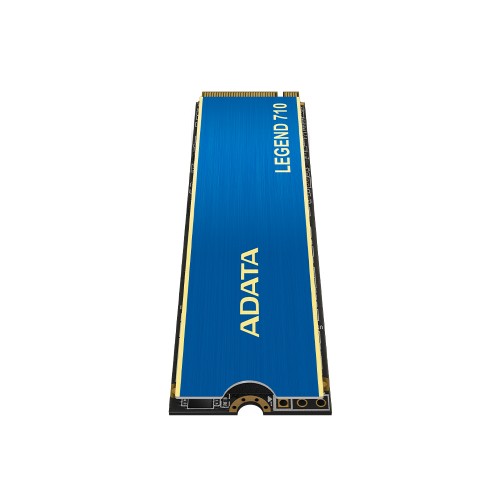

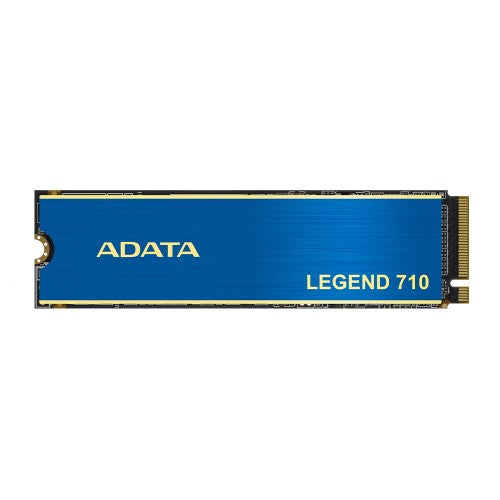

Adata Legend 710 (ALEG-710-512GCS) | 512GB NVMe SSD | M.2 Interface | PCIe Gen3 | 2280 | Read 2400MB/s | Write 1600MB/s | Heatsink

512 GB, M.2, 3D NAND, PCIe Gen3 x4, NVMe 1.4

Key Features

• PCIe Gen3 x4 interface
• Excellent read/write performance
• Heat sink keeps things 15% cooler
• Great upgrade option for creators
• High capacities
• Supports NVMe 1.4
• LDPC & AES 256-bit encryption
• Supports Host Memory Buffer(HMB)

Description

Enhancing Your Creativity
The LEGEND 710 utilizes PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.

Keeping Things Cool
The LEGEND 710's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden-colored trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.

Helping You Create Better
Creativity can't wait! The LEGEND 710 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.

Protecting Your Creations
With LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 710 ensures accurate data transmissions and security.

SSD Toolbox
SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	512 GB
Memory type	3D NAND
Data transmission
Read speed	2400 MB/s
Write speed	1000 MB/s
Random write (4KB)	150000 IOPS
Random read (4KB)	90000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	1000 MB/s
Sequential write speed (AS SSD)	1000 MB/s
Sequential read speed (CDM)	2400 MB/s
Sequential read speed (AS SSD)	2400 MB/s
Sequential read speed (ATTO)	2400 MB/s
Sequential write speed (ATTO)	1000 MB/s
TBW rating	130
PCI Express interface data lanes	x4
SSD capacity	512 GB
Security algorithms	256-bit AES
Read speed	2400 MB/s
Write speed	1000 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	150000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
SSD form factor	M.2
Harmonized System (HS) code	84717070
Performance
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.4
Sequential write speed (CDM)	1000 MB/s
Sequential write speed (AS SSD)	1000 MB/s
Sequential read speed (CDM)	2400 MB/s
Sequential read speed (AS SSD)	2400 MB/s
Sequential read speed (ATTO)	2400 MB/s
Sequential write speed (ATTO)	1000 MB/s
TBW rating	130
PCI Express interface data lanes	x4
SSD capacity	512 GB
Security algorithms	256-bit AES
Read speed	2400 MB/s
Write speed	1000 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	150000 IOPS
Random read (4KB)	90000 IOPS
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	9 g
Height	3.13 mm
Depth	80 mm
Package type	Box
Packaging data
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Maximum operating temperature	70 °C
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
ECC	Yes
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	M.2
Compliance certificates	CE, RoHS
Other features
Compliance certificates	CE, RoHS
Logistics data
Harmonized System (HS) code	84717070
