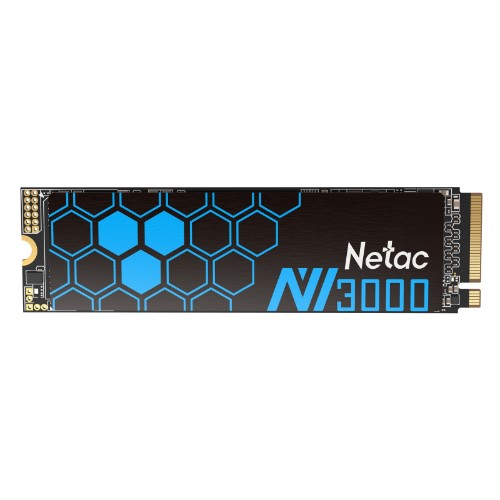

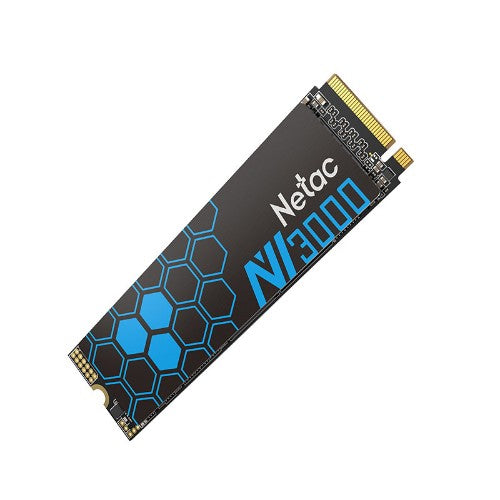

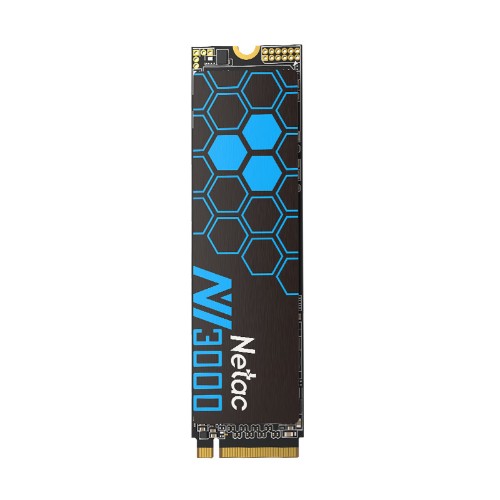

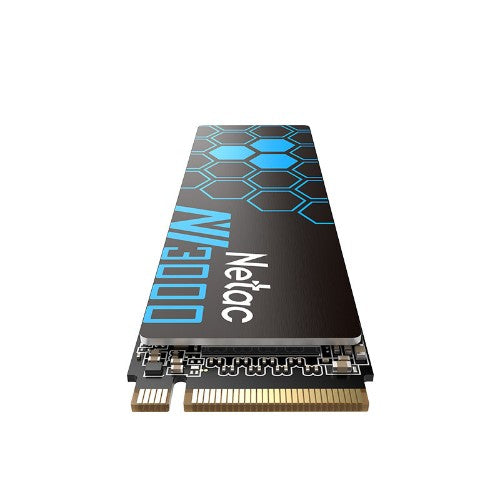

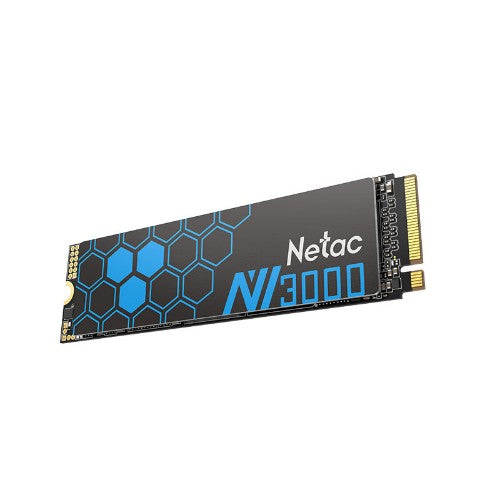

Netac NV3000 2 TB M.2 PCI Express 3.0 NVMe 3D NAND

2TB, M.2 2280, 3D NAND, NVMe 1.4, PCIe Gen3 x4, M Key, S.M.A.R.T, TRIM, ECC, 22x80x2.9mm, 8g

Description

Netac NV3000
Extraordinary speed, Better and Faster
Super high-speed with 3300MB/s

Selected chips, Stable operation
Adopt new generation of 3D NAND Flash adopts vertical stacking unit structure, which also supports LDPC intelligent error correction at the same time

Two features boost performance
Equipped with HMB (host memory buffering technology) and SLC Cache technology, intelligently optimize cache space and greatly improve storage operation efficiency

Slimmer and powerful
Slimmer, compatible with desktop, all-in-one, and notebook devices, and easy to upgrade and speed up

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	3D NAND
Data transmission
Random write (4KB)	280000 IOPS
Random read (4KB)	320000 IOPS
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.4
Sequential read speed (ATTO)	3300 MB/s
Sequential write speed (ATTO)	2900 MB/s
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
S.M.A.R.T. support	Yes
TRIM support	Yes
Protection features	Shock resistant
ECC	Yes
Memory type	3D NAND
Random write (4KB)	280000 IOPS
Random read (4KB)	320000 IOPS
Mean time between failures (MTBF)	2000000 h
SSD form factor	M.2
PCI Express CEM revision	3.0
Target workload	Mixed Use (MU)
M.2 key ID	M
M.2 SSD size	2280 (22 x 80 mm)
Power
Operating voltage	5 V
Performance
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.4
Sequential read speed (ATTO)	3300 MB/s
Sequential write speed (ATTO)	2900 MB/s
TBW rating	1200
PCI Express interface data lanes	x4
SSD capacity	2 TB
S.M.A.R.T. support	Yes
TRIM support	Yes
ECC	Yes
Memory type	3D NAND
Random write (4KB)	280000 IOPS
Random read (4KB)	320000 IOPS
Mean time between failures (MTBF)	2000000 h
PCI Express CEM revision	3.0
Design
Component for	PC/Laptop
Protection features	Shock resistant
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	8 g
Height	2.9 mm
Depth	80 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 3.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
Protection features	Shock resistant
ECC	Yes
Operating shock	1500 G
SSD form factor	M.2
