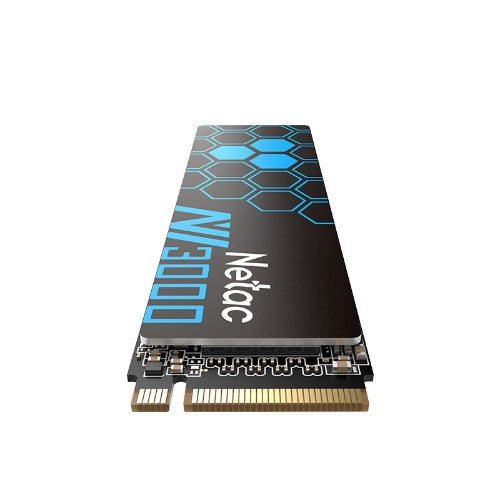

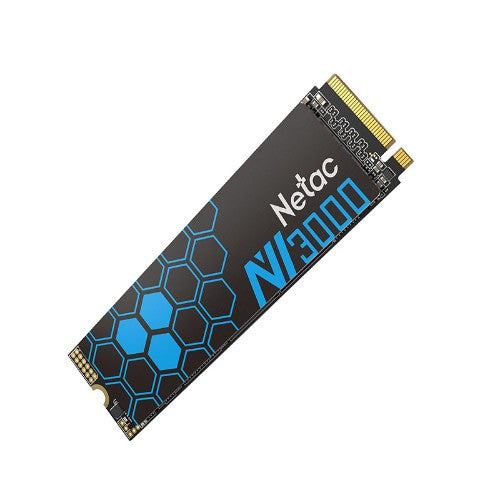

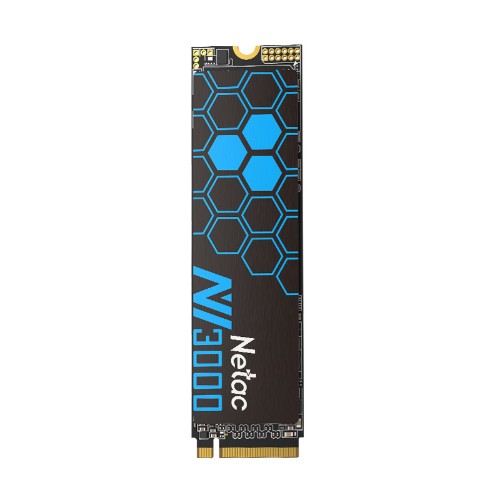

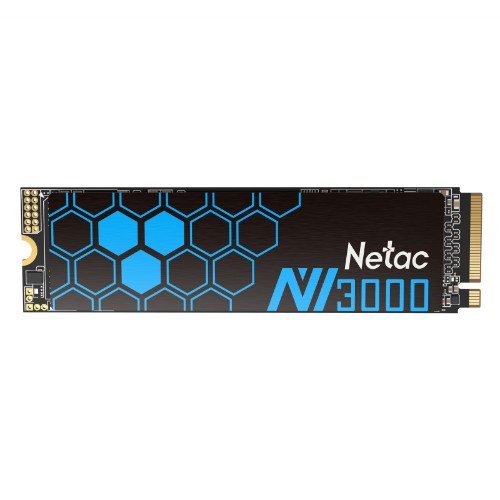

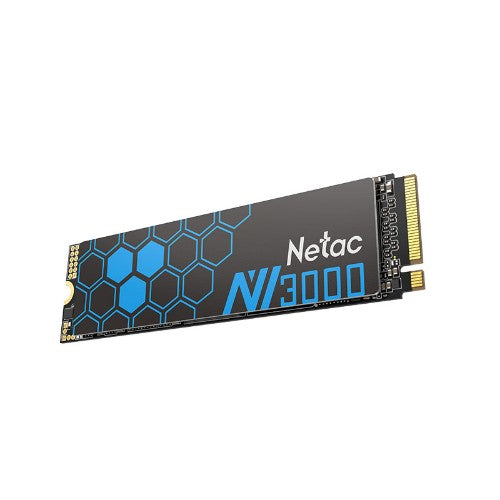

Netac NV3000 PCIe 3 x4 M.2 2280 NVMe 3D NAND SSD 500GB, R/W up to 3100/2100MB/s, with heat sink

NV3000 PCIe 3 x4 M.2 2280 NVMe 3D NAND SSD 500GB, R/W up to 3100/2100MB/s, with heat sink

Key Features

• 3D NAND Flash adopted for higher capacity, durability and excellent performance
• Advanced LDPC ECC and data protection technology enhances the endurance and retention of 3D NAND
• End to End data path protection
• SLC Caching for optimal sustained performance
• Supports S.M.A.R.T., TRIM Command, and NCQ

Description

Netac NV3000
Extraordinary speed, Better and Faster
Super high-speed with 3300MB/s

Selected chips, Stable operation
Adopt new generation of 3D NAND Flash adopts vertical stacking unit structure, which also supports LDPC intelligent error correction at the same time

Two features boost performance
Equipped with HMB (host memory buffering technology) and SLC Cache technology, intelligently optimize cache space and greatly improve storage operation efficiency

Slimmer and powerful
Slimmer, compatible with desktop, all-in-one, and notebook devices, and easy to upgrade and speed up

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	500 GB
Memory type	3D NAND
Data transmission
Read speed	3100 MB/s
Write speed	2100 MB/s
Random write (4KB)	190000 IOPS
Random read (4KB)	200000 IOPS
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.3
TBW rating	300
PCI Express interface data lanes	x4
SSD capacity	500 GB
S.M.A.R.T. support	Yes
Read speed	3100 MB/s
TRIM support	Yes
Write speed	2100 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	190000 IOPS
Random read (4KB)	200000 IOPS
Native Command Queuing (NCQ)	Yes
Mean time between failures (MTBF)	2000000 h
SSD form factor	M.2
Performance
Interface	PCI Express 3.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.3
TBW rating	300
PCI Express interface data lanes	x4
SSD capacity	500 GB
S.M.A.R.T. support	Yes
Read speed	3100 MB/s
TRIM support	Yes
Write speed	2100 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	190000 IOPS
Random read (4KB)	200000 IOPS
Native Command Queuing (NCQ)	Yes
Mean time between failures (MTBF)	2000000 h
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	8 g
Height	2.9 mm
Depth	80 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 3.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 85 °C
ECC	Yes
Operating shock	1500 G
Native Command Queuing (NCQ)	Yes
SSD form factor	M.2
