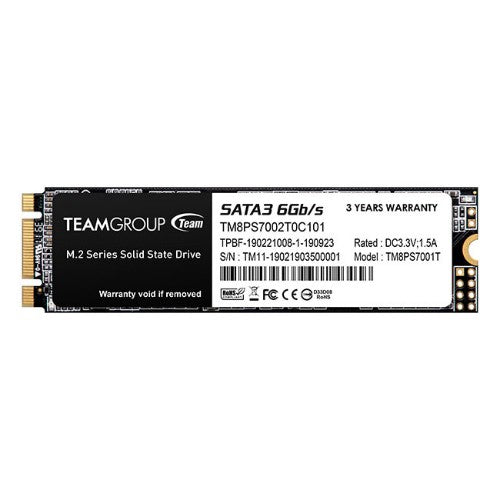

Team Group MS30 M.2 SATA SSD 2 TB Serial ATA III

2 TB, M.2 2280, 80 x 22 x 3.5 mm, 10 g

Key Features

• Supports Intel’s SRT
• Supports S.M.A.R.T
• Supports TRIM
• New Generation power saving technology that extends the battery life

Description

Next generation M.2 SATA solid state drive
TEAMGROUP MS30 M.2 SATA solid state drive is the next generation M.2 (NGFF, Next Generation Form Factor) high speed solid state drive. It provides mobile computing devices an excellent storage performance with ultra-compact size and lightweight.

High speed transfer, high compatibility and high capacity
MS30 M.2 SATA solid state drive uses the latest SATA III 6Gb/s transfer interface and offers excellent transfer efficiency and compatibility. For different environment usage, MS30 comes in two sizes, 22x80mm and 22x42mm, and both of them are fully compliant with the M.2 specification. In addition, the capacity is increased to 2TB, which is capable of satisfying all kinds of specification requirements for motherboards, laptops, mobile devices and developing embedded devices.

Smart Response Technology
Intel Smart Response Technology is supported. MS30 M.2 SATA solid state drive allows user to set the solid state drive as the cache memory between the hard disk drive (HDD) and the computer, so the hard drive with high capacity can have a fast response time like the system of solid state drive and improves the overall working efficiency.

Comprehensive smart technology
MS30 M.2 SATA solid state drive supports advanced garbage collection, wear leveling, TRIM command and power saving function of the next generation. It provides excellent solution for performance, power efficiency and service life.

Specifications

Hard drive
SSD capacity	2 TB
Performance
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Interface	Serial ATA III
Component for	Laptop
SSD capacity	2 TB
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	500 MB/s
Mean time between failures (MTBF)	1500000 h
Data transfer rate	6 Gbit/s
Data transmission
Read speed	550 MB/s
Write speed	500 MB/s
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	Serial ATA III
Component for	Laptop
SSD capacity	2 TB
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
S.M.A.R.T. support	Yes
Read speed	550 MB/s
TRIM support	Yes
Write speed	500 MB/s
Mean time between failures (MTBF)	1500000 h
Data transfer rate	6 Gbit/s
SSD form factor	M.2
Power
Operating voltage	3.3 V
Design
Component for	Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Weight	10 g
Height	3.5 mm
Depth	80 mm
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Operating shock	500 G
Operating vibration	20 G
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	0 - 90%
Operating shock	500 G
Operating vibration	20 G
SSD form factor	M.2
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
