Corsair MP700 PRO 2 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND

2 TB, M.2, PCIe Gen 5.0 x4, 3D TLC NAND, NVMe 2.0

Description

UNPRECEDENTED GEN5 STORAGE PERFORMANCE
PCIe Gen5 x4 combines with the massively high-bandwidth NVMe 2.0 interface to unleash higher-speed data transfers and greater M.2 SSD performance than ever before.

HIGH-DENSITY 3D TLC NAND
Combines high-speed performance with outstanding endurance, ensuring that your drive will last and perform well through many years of use.

COMPACT FORM FACTOR
Fits directly into your motherboard.

MICROSOFT DIRECTSTORAGE
Enables the MP700 PRO to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	2 TB
Memory type	3D TLC NAND
Data transmission
Random write (4KB)	1600000 IOPS
Random read (4KB)	1500000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1600000 h
Features
Interface	PCI Express 5.0
Component for	PC
NVMe	Yes
NVMe version	2.0

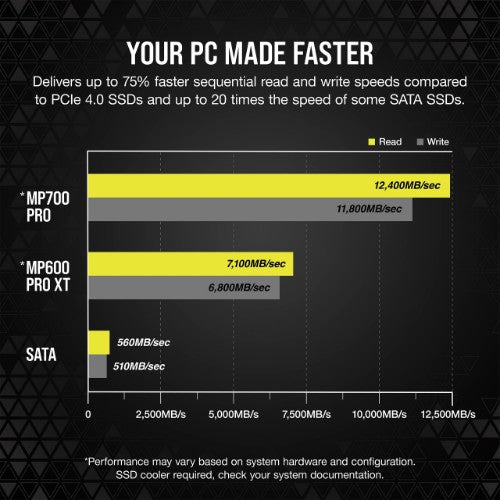

Sequential write speed (CDM)	11800 MB/s
Sequential read speed (CDM)	12400 MB/s
TBW rating	1400
PCI Express interface data lanes	x4
SSD capacity	2 TB
Security algorithms	256-bit AES
Memory type	3D TLC NAND
Random write (4KB)	1600000 IOPS
Random read (4KB)	1500000 IOPS
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
SSD form factor	M.2

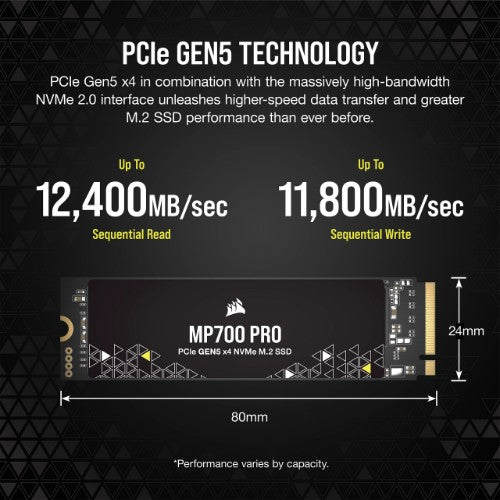

M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (average)	11.5 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 5.0
Component for	PC
NVMe	Yes
NVMe version	2.0
Sequential write speed (CDM)	11800 MB/s
Sequential read speed (CDM)	12400 MB/s
TBW rating	1400
PCI Express interface data lanes	x4
SSD capacity	2 TB
Security algorithms	256-bit AES
Memory type	3D TLC NAND
Random write (4KB)	1600000 IOPS
Random read (4KB)	1500000 IOPS
Mean time between failures (MTBF)	1600000 h
Hardware encryption	Yes
Design
Component for	PC
SSD form factor	M.2
Weight & dimensions
Weight	90 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G
Operating vibration	20 G
Hardware encryption	Yes
SSD form factor	M.2
