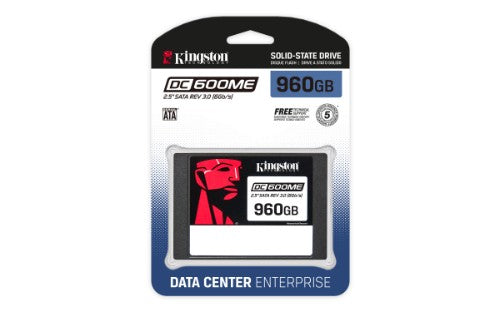

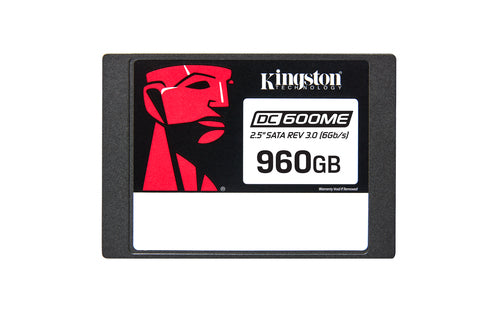

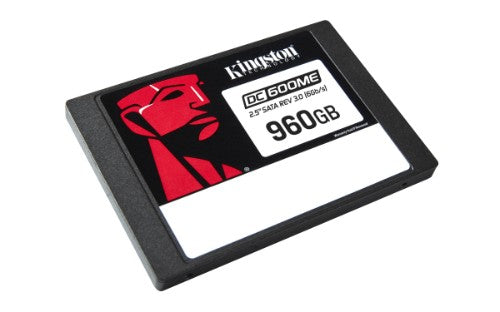

Kingston Technology 960G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD

960G DC600ME (Mixed-Use) 2.5" Enterprise SATA SSD

Key Features

• Designed for data center environments
• Hardware-based power loss protection
• Latency and IOPS consistency
• AES 256-bit encryption with DC600ME
• Capacities of up to 7.68TB*

Description

Kingston’s DC600M and DC600ME SSDs are fourth-generation data center SATA 3.0, 6Gbps SSDs utilising 3D TLC NAND intended for “mixed use” server workloads. Both are well suited for a wide variety of server applications and include on-board power loss protection via hold-up capacitors. DC600M and DC600ME are designed to protect data against unexpected power failure and to ensure the drive will successfully reinitialise on the next power-up of the system. Designed to deliver low latency and IO consistency for system integrators, hyperscale data centers and cloud service providers.

DC600ME features AES 256-bit encryption and supports TCG OPAL 2.0 security standards.

Capacities available from 480GB–7.68TB* to meet your data storage requirements.

Designed for data center environments
Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*
Optimised performance predictability to meet
service-level agreements (SLAs).

AES 256-bit Encryption with DC600ME
Protect sensitive data with support for AES 256-bit hardware-based encryption and TCG Opal 2.0 security standards with DC600ME.

Capacities up to 7.68TB
Upgrade and manage storage with capacities up to 7.68TB.*

Specifications

Hard drive
SSD capacity	960 GB
Memory type	3D TLC NAND
Data transmission
Read speed	560 MB/s
Write speed	530 MB/s
Random write (4KB)	65000 IOPS
Random read (4KB)	94000 IOPS
Write latency	70 µs
Read latency	130 µs
Data transfer rate	6 Gbit/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	2000000 h
Features
Interface	Serial ATA III
Component for	Server/workstation
TBW rating	1752
SSD capacity	960 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	530 MB/s
Memory type	3D TLC NAND
Random write (4KB)	65000 IOPS
Random read (4KB)	94000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	70 µs
Read latency	130 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
SSD form factor	2.5"
H/W PLP function	Yes
Target workload	Mixed Use (MU)
Hot-Plug support	Yes
Use conditions	Server/Enterprise
Power
Power consumption (average)	1.45 W
Power consumption (write)	3.6 W
Power consumption (read)	1.6 W
Power consumption (idle)	1.3 W
Performance
Interface	Serial ATA III
Component for	Server/workstation
TBW rating	1752
SSD capacity	960 GB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	560 MB/s
Write speed	530 MB/s
Memory type	3D TLC NAND
Random write (4KB)	65000 IOPS
Random read (4KB)	94000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	70 µs
Read latency	130 µs
Hardware encryption	Yes
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
SSD form factor	2.5"
Weight & dimensions
Width	69.8 mm
Weight	69 g
Height	7 mm
Depth	100.1 mm
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	91.2 g
Package type	Hanging box
Packaging data
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	91.2 g
Package type	Hanging box
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	989.98 g
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Hardware encryption	Yes
Country of origin	China, Taiwan
SSD form factor	2.5"
Logistics data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Master (outer) case height	69.8 mm
Master (outer) case gross weight	989.98 g
Products per master (outer) case	10 pc(s)
Country of origin	China, Taiwan
Other features
Country of origin	China, Taiwan
