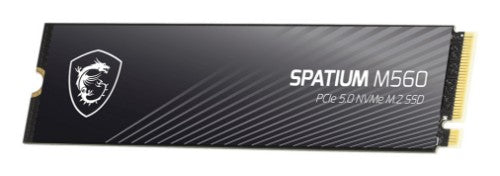

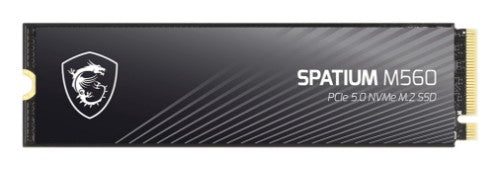

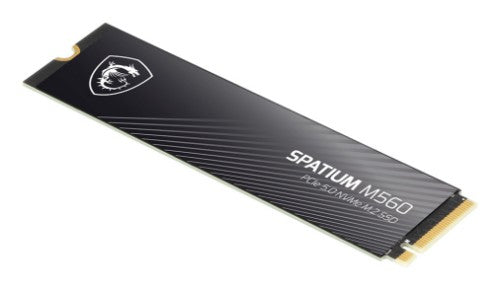

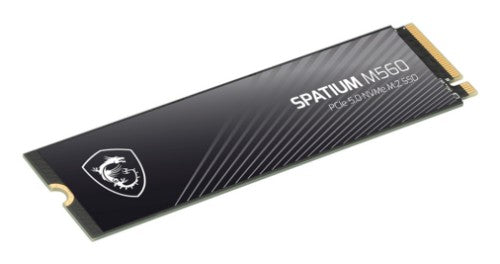

MSI Spatium M560 PCIE 5.0 NVME M.2 1TB PCI Express 5.0 3D NAND

1000GB, M.2 2280, 3D NAND, PCIe 5.0, NVMe

Key Features

• PCIe Gen5x4 interface and complies with the NVMe 2.0 standard
• Sequential Read speeds up to 10,300MB/s and Write speeds up to 8,700MB/s
• Up to 1200 TBW
• Built-in data security and error-correction capabilities
• 1TB to 2TB capacities in M.2 2280 form factor
• Suitable for both desktop and notebook
• 5-Year Warranty

Description

M560
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.

SUPERCHARGED WITH
PCIe 5.0
Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.

The SPATIUM M560 delivers immense performance and capabilities that effortlessly handle even the most extreme gaming or productivity workflows, representing a significant advancement over PCIe 3.0 and SATA technologies.

FULFILL UNLIMITED POTENTIAL
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage, empowering you to break records in games or take your talents to the next level.

Freeing Up Space
TRIM
To process unnecessary data efficiently and extend the life of SSD for more games or content creations.

Gaining Controls
S.M.A.R.T
To Monitor the health of the drive and identify possible issues, letting you be free from worry in games or at work.

Error Removal
ECC
To maintain your important records or files intact and ensure a nonstop gaming experience from system failure.

Steady Transfer
E2E DATA PROTECTION
To enable reliable data transfer and assist you to game and create in confidence with enhanced system stability.

A THOROUGH SHORTCUT WITH

DIRECTSTORAGE
DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.

Your Performance Booster
BUILT TO WIN
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

CREATE. PRODUCE. DONE.
With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

TAKE CARE OF YOUR DATA
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.

PARTNERED WITH ACTIPHY
Actiphy, a world-leading data protection solution provider, develops essential and user-friendly software. ActiveImage Protector* - an enterprise-level backup and disaster recovery software that protects your computer from system failures and data loss. Ideal for individuals and organizations.

OPTIMAL M.2 SSD
Designed in the M.2 2280 form factor, SPATIUM SSDs are easy to install into desktops, bringing speedy performance and power efficiency to any computing system.

5-YEAR WARRANTY
MSI stands by the quality and reliability of the SPATIUM M560 with a 5-Year comprehensive warranty. If you need assistance or are not satisfied with your product, MSI support is available to help and assist.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1 TB
Memory type	3D NAND
Data transmission
Read speed	10200 MB/s
Write speed	8400 MB/s
Random write (4KB)	1400000 IOPS
Random read (4KB)	1300000 IOPS
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 5.0
Component for	PC/Laptop
Controller type	Phison E31T
NVMe	Yes
NVMe version	2.0
Low-density parity-check (LDPC)	Yes
PCI Express interface data lanes	x4
SSD capacity	1 TB
S.M.A.R.T. support	Yes
Read speed	10200 MB/s
TRIM support	Yes
Write speed	8400 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	1400000 IOPS
Random read (4KB)	1300000 IOPS
Mean time between failures (MTBF)	1500000 h
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (max)	5.9 W
Performance
Interface	PCI Express 5.0
Component for	PC/Laptop
Controller type	Phison E31T
NVMe	Yes
NVMe version	2.0
Low-density parity-check (LDPC)	Yes
PCI Express interface data lanes	x4
SSD capacity	1 TB
S.M.A.R.T. support	Yes
Read speed	10200 MB/s
TRIM support	Yes
Write speed	8400 MB/s
ECC	Yes
Memory type	3D NAND
Random write (4KB)	1400000 IOPS
Random read (4KB)	1300000 IOPS
Mean time between failures (MTBF)	1500000 h
Design
Component for	PC/Laptop
SSD form factor	M.2
Weight & dimensions
Width	22 mm
Height	2.15 mm
Depth	80 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	40 - 85 °C
Technical details
Interface	PCI Express 5.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	40 - 85 °C
ECC	Yes
SSD form factor	M.2
