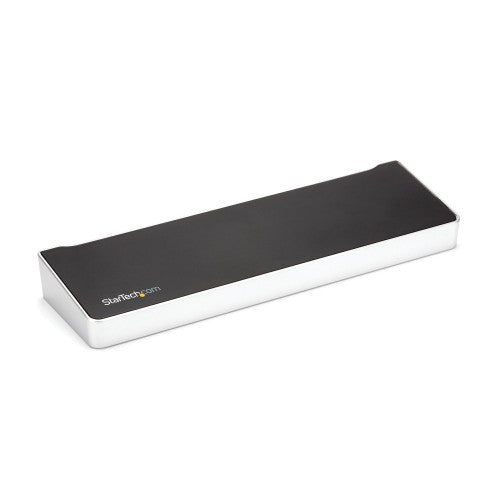

StarTech.com 4K USB-C Dock , Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 60W Power Delivery, 5x USB 5Gbps Hub - TAA

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac/Windows, HDMI & DisplayPort, 60W PD, 5x USB 5Gbps Hub, TAA

Key Features

• FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 60WPower Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
• TRIPLE DISPLAY ON MACBOOK AIR: Enable three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Dual or Triple video connectivity w/ DisplayPort or HDMI ports; Driver installation required on Windows/macOS
• WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink certified docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
• UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
• IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Description

Laptop Docking Station | Mac & Windows® | 60W Power Delivery| 4K 60 DP + HDMI

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It's the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™; or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

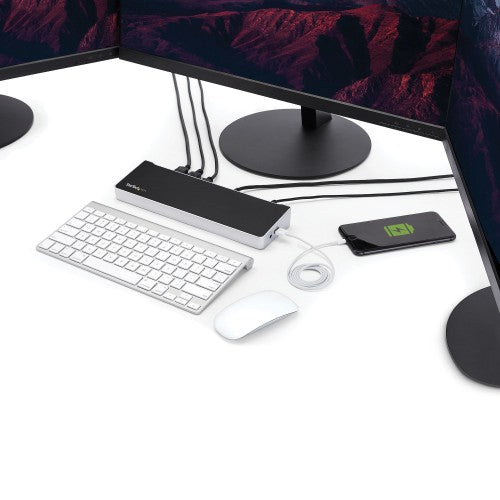

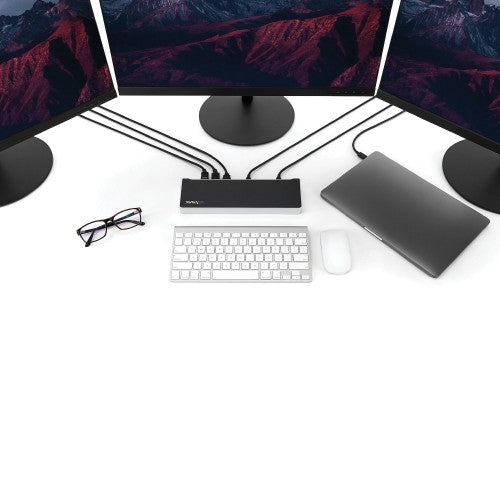

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

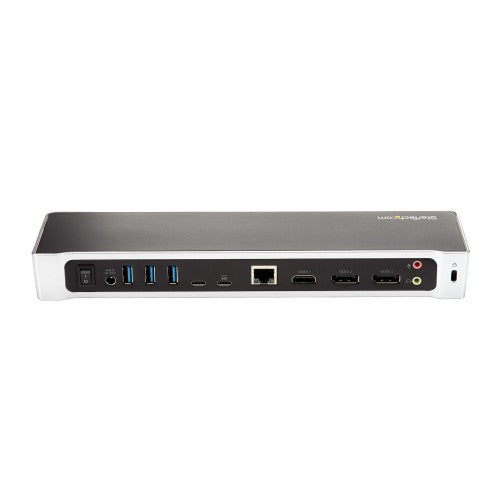

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The DK30CH2DPPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Number of microphone inputs	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
On/off switch	Yes
Product colour	Black, Silver
Card reader integrated	No
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	6 Gbit/s
Certification	CE, FCC, TAA
Technical details
Product colour	Black, Silver
Brand compatibility	Any brand
Cable lock slot	Yes
Data transfer rate	6 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	318 mm
Master (outer) case length	370 mm
Master (outer) case height	382 mm
Storage
Card reader integrated	No
Power
Input current	2 A
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Output voltage	20 V
Output current	6 A
Power supply	60 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%

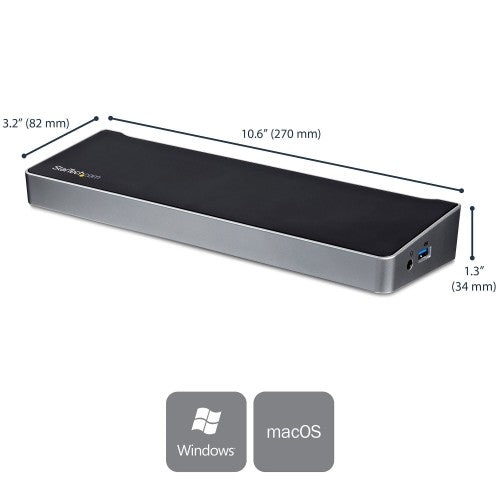

Weight & dimensions
Weight	385 g
Width	82 mm
Depth	270 mm
Height	34 mm
Package weight	1.45 kg
Package width	161 mm
Package depth	296 mm
Package height	71 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Cable lock slot	Yes
Certification	CE, FCC, TAA
Packaging data
Package weight	1.45 kg
Package width	161 mm
Package depth	296 mm
Package height	71 mm

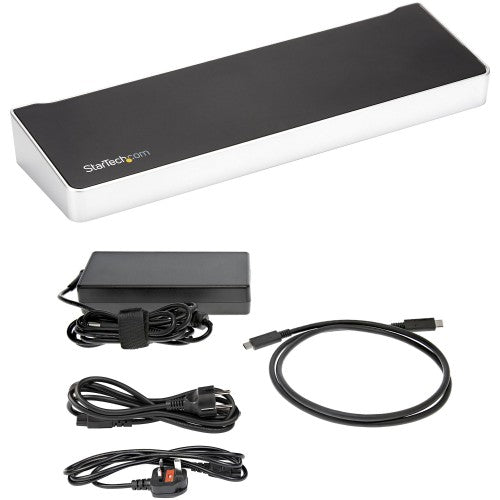

Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Certificates
Certification	CE, FCC, TAA
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	318 mm
Master (outer) case length	370 mm
Master (outer) case height	382 mm
Harmonized System (HS) code	84733020
Other features
Number of microphone inputs	1
Chipset	DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176
