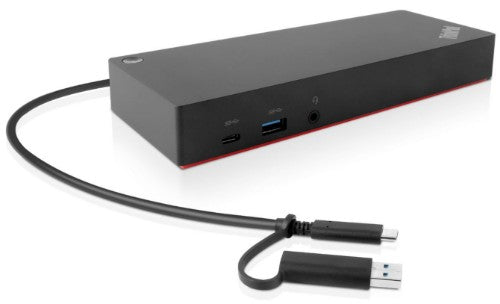

Lenovo 40AF0135EU laptop dock/port replicator Wired Black

3x USB 3.1 gen2, 2x USB2.0, Ethernet,2x HDMI, 2x DisplayPort

Reasons To Buy

One dock for all notebooks

Enhances the performance of Lenovo USB-C notebooks and tablets through USB-C connection, as well as previous generation and market notebooks through the USB-C to USB-A adapter.

Rich performance

Provides up to dual UHD 4K display with DisplayPort™ and HDMI™ ports. Up to 10 Gbps data transfer speed on three USB 3.1 Gen 2 ports, and rapid charging for most current ThinkPad family notebooks.

Enterprise manageability and simplification

Host of manageability features like PXE boot, Wake-on-LAN from sleep mode, and MAC address pass-through. Ideal for enterprise customers.

Description

Enterprise-class Universal Docking The ThinkPad Hybrid USB-C with USB-A dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manageability like PXE boot and MAC address Pass-through the ThinkPad Hybrid USB-C with USB-A offers three high-speed USB3.1 ports, up to dual UHD 4K resolution and rapid charging on ThinkPad notebooks. And, with the included USB-C to USB-A adaptor it can also provide port replication to non-Lenovo or USB-C notebooks.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Connectivity technology	Wired
DisplayPort version	1.2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Certification	BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI
HD type	4K Ultra HD
Technical details
Product colour	Black
Brand compatibility	Lenovo
Compatibility	E580, E480, E470, L580, L480, L470, L380, L380 Yoga, Lenovo Tablet 10, Miix 520-12IKB, T580, T570, T480, T480s, T470, T470s, T460, ThinkPad 25, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X1 Tablet Gen 2, 13 Gen 3 Windows, X280, X270, X260
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	AC
Power plug type	Type C
Power supply	135 W
Software
Windows operating systems supported	Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Weight & dimensions
Weight	480 g
Width	210 mm
Depth	80 mm
Height	30 mm
Package weight	1.35 kg
Package width	270 mm
Package depth	165 mm
Package height	88 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Certification	BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI
Packaging data
Package weight	1.35 kg
Package width	270 mm
Package depth	165 mm
Package height	88 mm

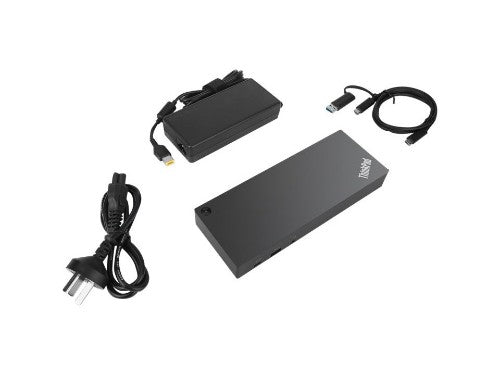

Packaging content
AC adapter included	Yes
Certificates
Certification	BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Quality, TUV Mark, Ukraine DoC, VCCI
Logistics data
Harmonized System (HS) code	84733020
