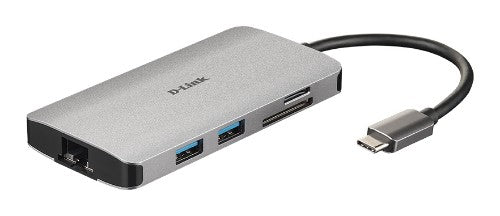

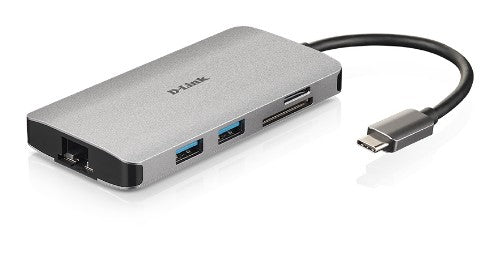

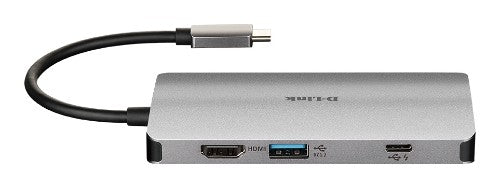

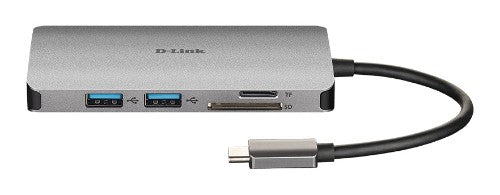

D-Link 8-in-1 USB-C Hub with HDMI/Ethernet/Card Reader/Power Delivery

DUB‑M810 - 8‑in‑1 USB‑C Hub with HDMI/Ethernet/Card Reader/Power Delivery

Key Features

• x3 SuperSpeed USB 3.0 ports, x1 with Quick Charge (BC 1.2)
• x1 HDMI, supports up to 4K resolutions
• x1 USB-C (Thunderbolt 3) port with data sync & power delivery up to 100W
• Dual-Slot SD/microSD/SDHC/SDXC Card Reader
• x1 RJ-45 Gigabit Ethernet port
• Aluminium alloy design, plug & play, Mac/Windows/Linux compatible

Description

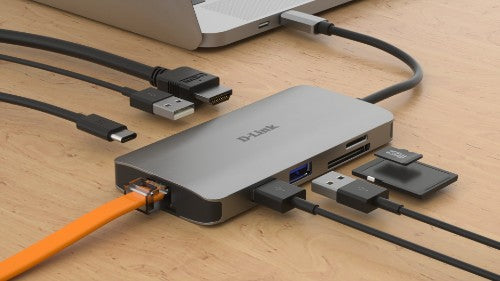

Use one port. Connect to everything.
Instantly add a second display, a dual‑slot SD and microSD card reader, a Gigabit Ethernet port, three USB 3.0 ports with one that can Quick Charge, and a USB‑C port to your laptop simply by plugging the hub into any USB‑C port.

Plug into a reliable docking station. Unplug for instant remote working.
Enjoy a premium docking station experience simply by plugging the hub into a single USB-C port on your computer. You can directly access a private LAN network with Gigabit Ethernet speeds, extend your monitor to a second screen, transfer files from SD cards and USB 3.0 devices, and charge your laptop, all at the same time. Need to work remotely? Simply unplug the hub’s single cable and you’re ready to go with your laptop.

Ready to transfer your close‑ups.
Reliably bulk transfer any files from your SD or microSD card to your computer using the hub’s built-in dual-slot SD/microSD card reader. Perfect for quickly downloading camera photos and video footage to a phone, tablet, or computer without using any of your camera’s battery power.

Extend your screen to a vivid 4K monitor.
Plug into the hub’s HDMI port to instantly mirror or extend your display to a second monitor with vibrant 4K resolution. And full backwards compatibility means you can connect to a 720p or 1080p monitor.

Send power through the hub.
With the Power Delivery feature, you can charge your laptop at the same time as connecting to your USB peripheral devices. Simply connect your USB-C charger to the hub’s USB-C port to provide power through the hub and to your laptop.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Thunderbolt 3 ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDCP version	2.2
HDCP	Yes
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	4096 x 2160 pixels
Product colour	Aluminium
Card reader integrated	Yes
Plug and Play	Yes
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Certification	CE, IC, FCC, RCM
Maximum refresh rate	30 Hz
Technical details
Product colour	Aluminium
Plug and Play	Yes
Cable length	0.15 m
Harmonized System (HS) code	84733020
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Power
Input current	0.08 A
AC input voltage	20 V
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	82 g
Width	105 mm
Depth	52 mm
Height	13 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Aluminium
Certification	CE, IC, FCC, RCM
Packaging data
Quantity per pack	1 pc(s)
Certificates
Certification	CE, IC, FCC, RCM
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
Other features
Cable length	0.15 m
