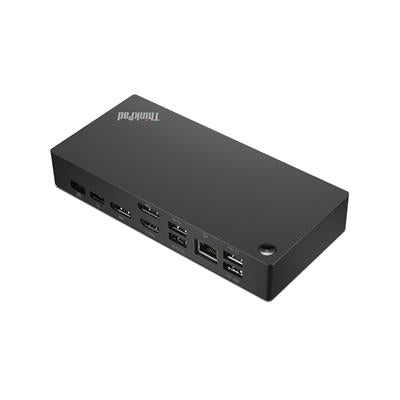

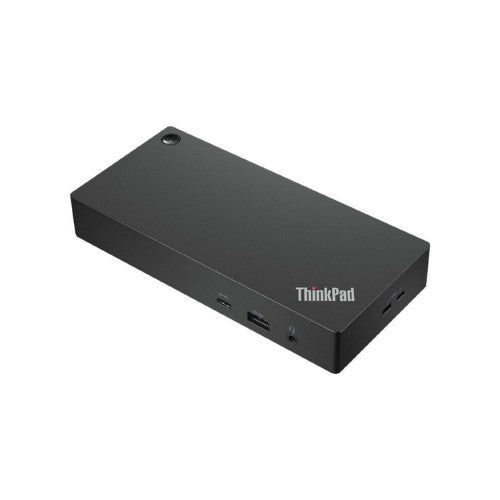

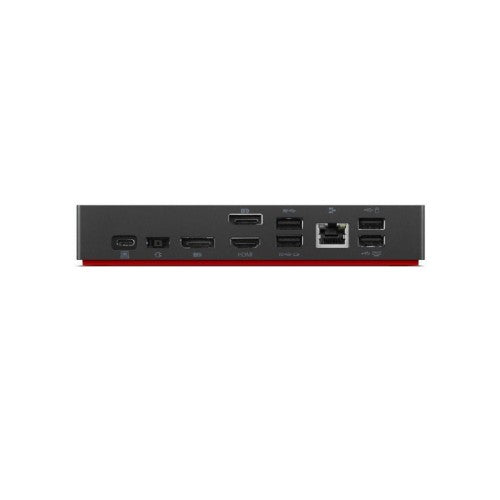

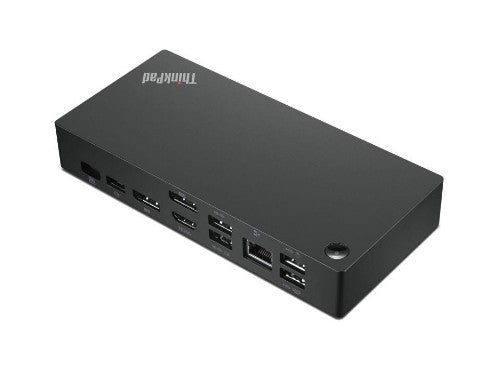

Lenovo ThinkPad Universal USB-C Dock | 2 x Display Port | USB Ports: 3 x USB3 1 | 2 x USB2 0 | 1 x USB-C | Audio Ports: 1 x Combo Audio Jack | Ethernet: 1 x Gigabit Ethernet | Physical Security Feature: 1 x Security lock slot | Max Number of External Moni

2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W

Description

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.

One Dock. No Limits.
Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.

One Cable. No Hassle.
With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.

Entire Fleet. One Manager.
The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
HD type	4K Ultra HD
Technical details
Product colour	Black
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE
Storage
Card reader integrated	No
Power
Power source type	USB
Power connector	USB Type-C
Power supply	90 W
Software
Windows operating systems supported	Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Weight	340 g
Width	171 mm
Depth	80 mm
Height	30.8 mm
Package weight	955 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package weight	955 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Packaging content
Cables included	USB Type-C
Quantity per pack	1 pc(s)
Certificates
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Logistics data
Harmonized System (HS) code	84733020
