StarTech.com USB C Multiport Adapter for MacBook Pro/Air - USB Type-C to 4K HDMI, 100W Power Delivery Pass-through, SD/MicroSD Slot, 2-Port USB 3.0 Hub - Portable USB-C Mini Dock

StarTech.com USB C Multiport Adapter for MacBook Pro/Air - USB Type-C to 4K HDMI, 100W Power Delivery Pass-through, SD/MicroSD Slot, 2-Port USB 3.0 Hub - Portable USB-C Mini Dock (DKT30CMHSDPD)

Description

USB Type-C Multiport Adapter | USB 3.2 Gen 1 (5Gbps) | 4K 30Hz HDMI | 100W Power Delivery | SD & MicroSD Card Reader

This USB-C multiport adapter with HDMI® turns your Macbook Pro, Macbook Air (including M1s), Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 30Hz HDMI video output, a USB Type-C™ port (data/power), one USB 3.2 Gen 1 Type-A (5Gbps) ports, an SD and MicroSD (uSD) Card Reader, all through a single connection to your laptop's USB-C or Thunderbolt 3™ port.

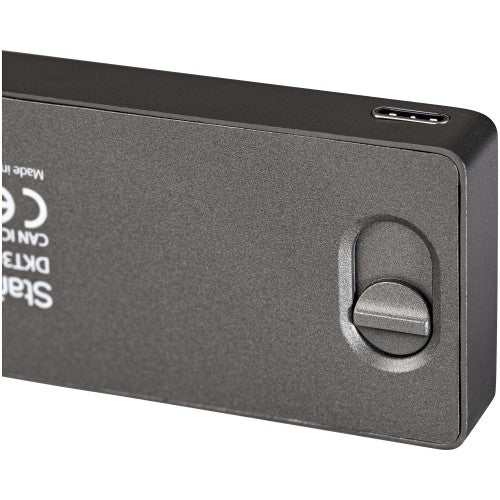

It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a retractable USB-C connection hat connects directly to your USB-C host without the need for an attached cable.

Enhance Productivity

The portable docking station supports a single HDMI monitor up to 4K 30Hz (3840 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

Connect Your Devices

The USB-C to USB 3.2 Gen 1 hub gives you one USB-C port and one USB-A port (BC 1.2 charging port) to connect your latest and legacy USB devices.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD cards.

Charge Your Laptop and Peripherals

With support for USB Power Delivery 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The multiport adapter itself reserves 8W leaving up to 92W of power for charging.

The DKT30CMHSDPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity	1
HDMI version	1.4
Microphone in	No
Connectivity technology	Docking
USB Power Delivery	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN	No
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black, Grey
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MMC, MicroSD (TransFlash), SD
HD type	4K Ultra HD
Maximum refresh rate	30 Hz
Technical details
Product colour	Black, Grey
Data transfer rate	5 Gbit/s
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	340 mm
Master (outer) case height	200 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MMC, MicroSD (TransFlash), SD
Power
Power consumption (typical)	8 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	78 g
Width	113 mm
Depth	35 mm
Height	10.5 mm
Package weight	145 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Product colour	Black, Grey
Packaging data
Package weight	145 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Packaging content
Quick start guide	Yes
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	340 mm
Master (outer) case height	200 mm
Harmonized System (HS) code	84733020
Other features
Chipset	VIA Labs - VL102, VIA Labs - VL817, Parade - PS176, NOREL Systems - NS1081C
