StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2 Type-C Mini/Travel Dock

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2 Type-C Mini/Travel Dock (CDP2HVGUASPD)

Description

USB-C Multiport Adapter | USB 3.2 Gen 2 (10Gbps) | 4K HDMI or 1080p VGA | Presentation Mode Switch | 100W PD 3.0 Pass Through

This USB-C™ multiport adapter with HDMI/VGA lets you add vital connections to your MacBook or Windows laptop, through a single USB-C port. The adapter features a presentation mode switch, that when activated ensures the computer will not go into sleep standby or hibernation.

Connect a 4K HDMI or 1080p VGA Monitor

For maximum productivity, connect your USB-C or Thunderbolt 3 laptop to a 4K 30Hz monitor, using this USB-C to 4K HDMI / 1080p VGA multiport adapter. You can also connect to an HDMI projector or TV in a boardroom or other meeting space, to deliver presentations on a shared screen.

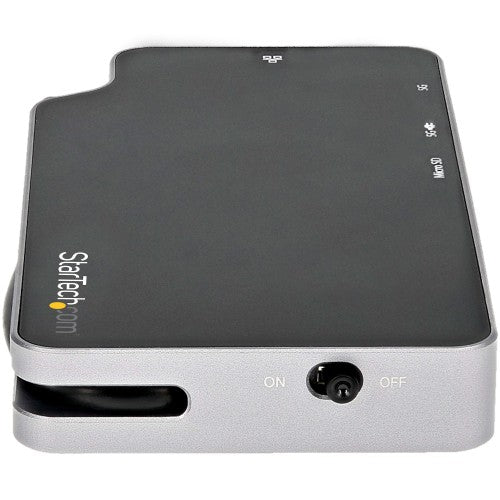

Presentation Mode Switch

When you turn on this switch, the USB-C to HDMI adapter prevents your computer from launching its screen saver, going to sleep, or entering power save mode while presenting. Plus, the built-in MicroSD card reader can be used as external storage - ideal for storing & delivering presentations at boardroom/conference room meetings.

• Left Switch Position: Enables Presentation Mode
• Right Switch Position: Disables Presentation Mode

100W Power Delivery 3.0 Passthrough

The USB-C adapter lets you power and charge your USB-C laptop during a presentation or while you're working, with a USB-C Power Delivery port. Even if your laptop has only a single USB-C port available, you can keep your laptop powered. Device reserves 15 watts, avoiding video flicker, device dropouts and power overdraw which is commonly seen in other hubs with less reliable power distribution.

Add Downstream USB-A & USB-C Ports

This USB-C multiport adapter offers a USB 3.2 Gen 2 Type-A port (10Gbps), and a USB-C 3.2 Gen 2 port that can be used for power delivery charging, or if power delivery is not required, can be used as a 10Gbps data port for connecting USB-C peripherals.

MicroSD 4.0 Card Reader

This USB-C multiport adapter features a memory card slot, providing fast read and write access for microSD™ memory cards through USB 3.0. It's ideal for transferring photos, videos or presentations from your SD cards to your USB-C enabled laptop or tablet.

Portable & Compact

The compact all-in-one adapter is a vital accessory for your USB-C laptop. With its small-footprint design, you can take it with you anywhere you would use your laptop.

CDP2HVGUASPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery 3.0.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	1
Product colour	Black, Grey
Card reader integrated	Yes
LED indicators	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash)
Certification	CE, FCC, RoHS
HD type	4K Ultra HD
Housing material	Aluminium, Plastic
Maximum refresh rate	60 Hz
Technical details
Product colour	Black, Grey
Data transfer rate	10 Gbit/s
Cable length	0.13 m
Harmonized System (HS) code	84733020
Products per master (outer) case	70 pc(s)
Master (outer) case width	473 mm
Master (outer) case length	331 mm
Master (outer) case height	440 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Power
Power consumption (typical)	15 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	124.3 g
Width	125 mm
Depth	68 mm
Height	16 mm
Package weight	138.3 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Product colour	Black, Grey
LED indicators	Yes
Certification	CE, FCC, RoHS
Packaging data
Package weight	138.3 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Packaging content
Quick start guide	Yes
Certificates
Certification	CE, FCC, RoHS
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	473 mm
Master (outer) case length	331 mm
Master (outer) case height	440 mm
Harmonized System (HS) code	84733020
Other features
Chipset	Realtek - RTD2141DS, Realtek - RTS5423, Realtek - RTL8153B, Realtek - RTS5306
Cable length	0.13 m
