Hypertec ProDock Station - Universal Multi-Display Docking Station

ProDockStation - Universal USB-C & USB-A Triple Display Desktop Docking Station with HDMI and DisplayPort, USB 3.0, Gigabit Ethernet, 100W Power Delivery

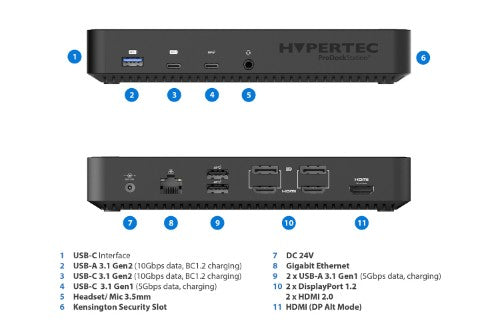

Key Features

• USB-C and USB-A Compatible
• Supports up to 3 External Monitors
• 2 x DisplayPort
• 3 x HDMI
• 2 x USB-C
• 3 x USB-A
• Gigabit Ethernet
• 3.5mm Audio
• 100W Power
• Windows, Apple OS (including M1, M1X), and Chrome OS Compatible
• 0.5m USB-C to USB-A and USB-C to USB-C Cables Included
• Kensington® Security Slot
• Power Button

Description

Get simple and effective universal compatibility with a wide range of operating systems, the ProDockStation® provides a simple and effective connectivity solution for charging, data transfer and video display from USB-C and USB-A devices.

Display, charge, and transfer with ease. The ProDockStation is equipped with HDMI, DisplayPort, Gigabit Ethernet, USB-A, USB-C and a combo audio port, the ProDockStation transforms Windows, Apple OS (including M1, M1X), and Chrome OS devices into fully functioning workstations.

Connect up to three 4K displays simultaneously: whether working with demanding applications, multitasking, or watching videos and films, the ProDockStation allows you to enjoy crisp 4K resolution across up to three additional monitors with Windows, Apple and Chrome devices. * To connect to third HDMI monitor, the connected device must support either DP alt mode or Thunderbolt.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB connector type	USB Type-A, USB Type-C
Serial ports quantity	0
Parallel ports quantity	0
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	0
Audio output	3.5mm jacket
HDMI ports quantity	3
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	2
DVI-I ports quantity	0
DVI-D ports quantity	0
Mini DisplayPorts quantity	0
Micro-USB 2.0 ports quantity	0
Microphone in	No
Firewire (IEEE 1394) ports	0
Headphone outputs	1
eSATA/USB 2.0 ports quantity	0
eSATA ports quantity	0
DC-in jack	Yes
Connectivity technology	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	0
FireWire 800 ports quantity	0
FireWire 400 ports quantity	0
Fiber ports quantity	0
PCI Express x16 slots	0
PCI Express slots quantity	0
USB Power Delivery (USB PD)	Yes
PowerShare	No
Number of USB ports with PowerShare support	0
USB Power Delivery up to	100 W
Dual antenna pass-through	No
HDCP	No
Thunderbolt 4 ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB4 ports quantity	0
Thunderbolt 5 ports quantity	0
Network
Networking standards	IEEE 802.3
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
On/off switch	Yes
Country of origin	China
Product colour	Black
Card reader integrated	No
Built-in speaker(s)	No
Brand compatibility	Universal
Cable lock slot	Yes
Reset button	No
Plug and Play	Yes
Charging function	Yes
Certification	RoHS, REACH, Prop65, CE, FCC
Built-in SSD	No
NVMe	No
Rubber feet	Yes
Cable lock slot type	Kensington
Housing material	Plastic, Silicone
Display modes	Double, Duplicate, Extended, Single, Triple
Maximum refresh rate	60 Hz
SSD enclosure	No
USB data transfer rates	10000 Mbit/s
Audio
Built-in speaker(s)	No
Technical details
Product colour	Black
Brand compatibility	Universal
Cable lock slot	Yes
Reset button	No
Plug and Play	Yes
Maximum operating temperature	70 °C
Charging function	Yes
Warranty period	1 year(s)
Storage
Card reader integrated	No
Multimedia
Built-in speaker(s)	No
Power
Power source type	AC, DC
Input current	5.41 A
AC input voltage	24 V
Power supply	130 W
Wireless charging	No
USB cable length	0.5 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Control unit
Remote control included	No
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	850 g
Width	85 mm
Depth	191 mm
Height	31.8 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	China
Product colour	Black
Cable lock slot	Yes
Certification	RoHS, REACH, Prop65, CE, FCC
Rubber feet	Yes
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package dimensions (WxDxH)	280 x 210 x 42 mm
Packaging content
Manual	Yes
Cables included	USB Type-A to USB Type-C, USB Type-C
AC adapter included	Yes
Quantity per pack	1 pc(s)
Remote control included	No
Certificates
Certification	RoHS, REACH, Prop65, CE, FCC
Other features
USB data transfer rates	10000 Mbit/s
USB ports quantity	6
USB port	Yes
Package dimensions (WxDxH)	280 x 210 x 42 mm
Maximum operating temperature	70 °C
