j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter

USB-C™ Triple Display Docking Station with 100W PD Adapter

Key Features

• TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY

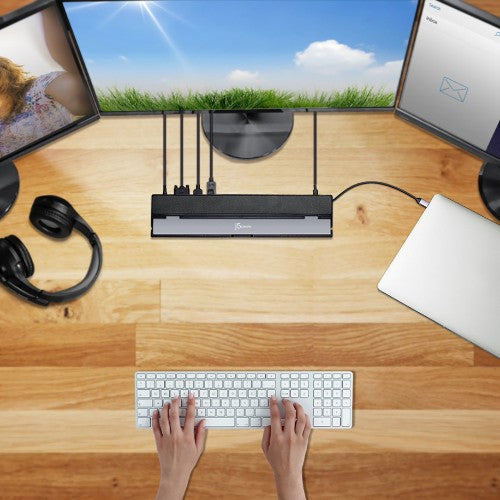

• Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
• HDMI™ + VGA + DisplayPort™
• HDMI™ + VGA + HDMI™
• USB-C™ 100W POWER DELIVERY
• With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C™ power adapter
• MULTIPLE CONNECTIONS
• To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack
• BC 1.2 FAST CHARGING
• One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port
• CUTTING-EDGE DESIGN

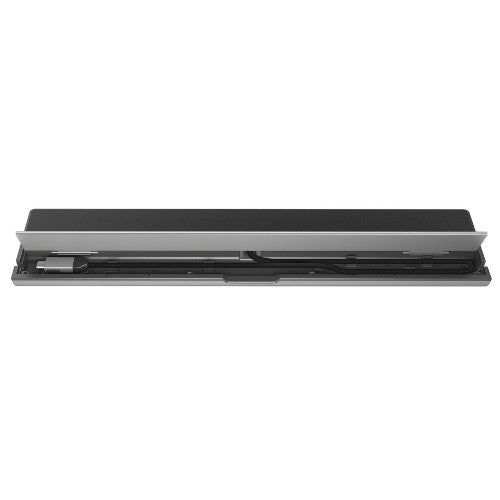

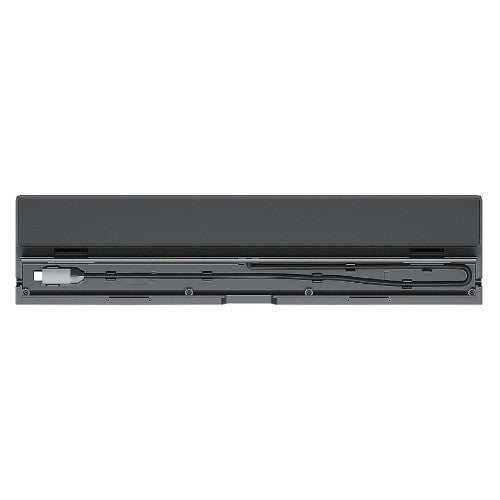

• Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like

Description

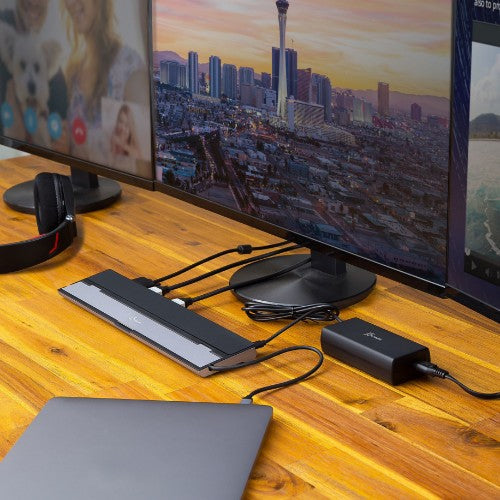

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.

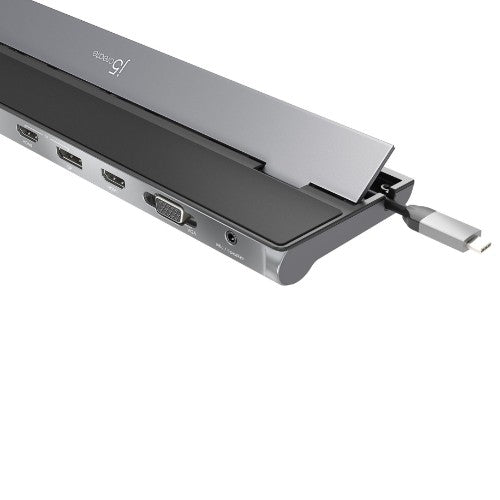

This USB™ 3.0 docking station is also equipped with an RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.

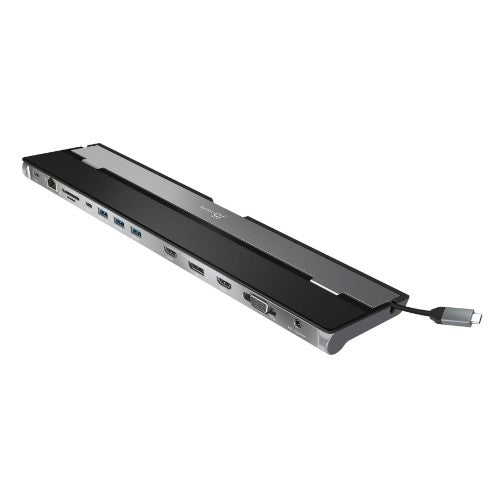

All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Microphone in	No
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 1080 pixels
Maximum analog resolution	1920 x 1080 pixels
Number of displays supported	3
Country of origin	Taiwan
Product colour	Black, Silver
Card reader integrated	Yes
Compatibility	Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Display modes	Extended, Mirror
Colour name	Silver and Black
Technical details
Product colour	Black, Silver
Compatibility	Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacebook™ 2 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
Data transfer rate	5 Gbit/s
I/O ports	2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack
Warranty period	2 year(s)
Special features	Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
Products per master (outer) case	2 pc(s)
Master (outer) case width	150 mm
Master (outer) case gross weight	2.1 kg
Master (outer) case length	398 mm
Master (outer) case height	123 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	DC, USB
Input current	0.8 A
AC input voltage	110 - 220 V
Power consumption (typical)	4.5 W
Output voltage	20 V
Output current	4.75 A
Power connector	USB Type-C
Power supply	100 W
USB cable length	0.45 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 48 °C
Storage temperature (T-T)	-10 - 65 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	300 g
Width	82.5 mm
Depth	350 mm
Height	23.4 mm
Package weight	920.5 g
Package width	89.3 mm
Package depth	358 mm
Package height	63.5 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Taiwan
Product colour	Black, Silver
Packaging data
Quantity per pack	1 pc(s)
Package weight	920.5 g
Package width	89.3 mm
Package depth	358 mm
Package height	63.5 mm
Packaging content
Quick start guide	Yes

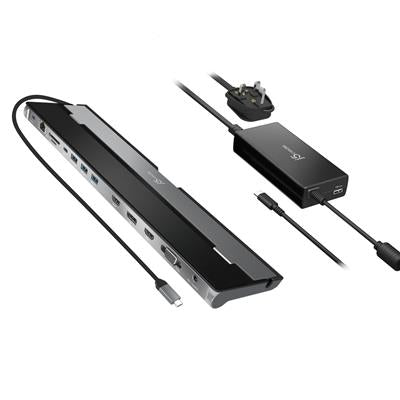

Packaging content	1 - JCD543P USB-C™ Triple Display Docking Station 1 - JUP2290 100W USB-C™ Super Charger 1 - Quick Installation Guide
Cables included	USB Type-C
AC adapter included	Yes
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	2 pc(s)
Master (outer) case width	150 mm
Master (outer) case gross weight	2.1 kg
Master (outer) case length	398 mm
Master (outer) case height	123 mm
Export Control Classification Number (ECCN)	EAR99
Other features
I/O ports	2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.0 2 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA 1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack
Special features	Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
