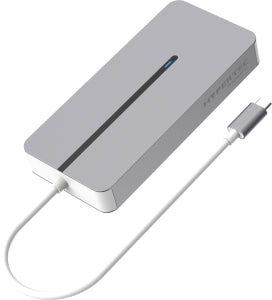

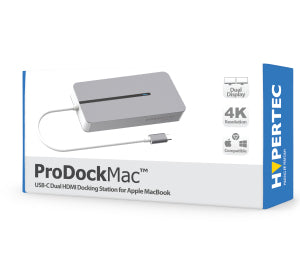

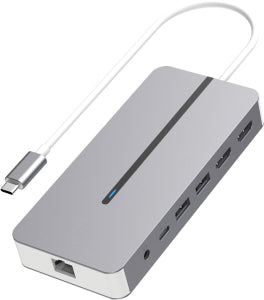

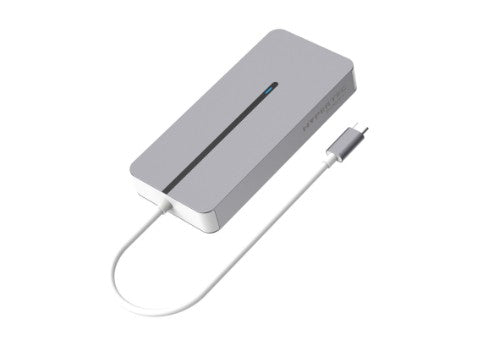

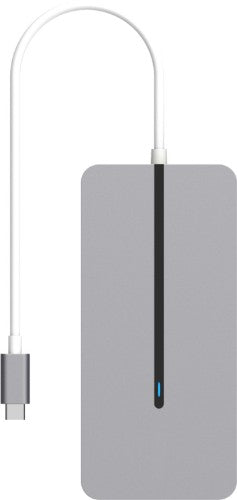

Hypertec ProDock Mac - USB-C Dual HDMI Docking Station for Apple MacBook

ProDockMac - Universal USB-C Dock for Apple MacBook Extended Display with Dual HDMI, Gigabit Ethernet, 2 X USB A, 100W Power Delivery

Key Features

• 4K Resolution
• 2 x HDMI
• 2 x USB-A
• 1 x USB-C
• 1 x Gigabit Ethernet
• 1 x 3.5mm Audio & Mic
• Supports extended screens on Mac (including M1, M1 Max, M1 Pro and M2)
• Windows
• Chrome OS
• Integrated USB-C Cable
• 100W Power Delivery
• 2 Year Warranty

Description

The ProDockMac is specifically designed for macOS, including compatibility with M1, M1 Max, M1 Pro, and M2 chips. It enhances productivity through multi-stream capabilities via dual extended displays, a feature that other USB-C hubs do not offer.

This device allows for easy display, charging, and data transfer. With all the necessary interfaces for a standard workstation, the ProDockMac is an excellent space-saving addition to any hot desk environment. Simply connect the included single USB 3.2 USB-C cable to your notebook or MacBook, and you'll quickly connect to one or two HDMI displays, USB devices, speakers or headsets, and a LAN connection. The integrated USB-C cable also delivers power to compatible notebooks using USB Power Delivery.

The ProDockMac supports dual HDMI displays via Multi Stream Transport (MST), not only for Windows PCs but also for Macs with M1 chips. It allows you to connect two HDMI displays to a laptop or MacBook at resolutions of 3840x2160 at 60Hz and 3840x2160 at 30Hz simultaneously. Users can choose to either mirror the monitor display or extend their desktop to show different content.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB connector type	USB Type-C
Ethernet LAN (RJ-45) ports	1
Audio output	3.5mm jacket
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	No
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	85 W
Network
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	2
Country of origin	China
Product colour	Silver
Card reader integrated	Yes
Brand compatibility	Any brand
Plug and Play	Yes
Charging function	Yes
Certification	RoHS, REACH, Prop65, CE, FCC
Housing material	Aluminium
Display modes	Single, Dual, MST mode
Maximum refresh rate	60 Hz
USB data transfer rates	5000 Mbit/s
Technical details
Product colour	Silver
Brand compatibility	Any brand
Plug and Play	Yes
Maximum operating temperature	40 °C
Charging function	Yes
Warranty period	1 year(s)
Storage
Card reader integrated	Yes
Power
Power source type	USB
Input current	5 A
AC input voltage	20 V
Power supply	100 W
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	0.22 g
Width	65 mm
Depth	140 mm
Height	19 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	China
Product colour	Silver
Certification	RoHS, REACH, Prop65, CE, FCC
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Cables included	USB Type-C
Quantity per pack	1 pc(s)
Certificates
Certification	RoHS, REACH, Prop65, CE, FCC
Other features
USB data transfer rates	5000 Mbit/s
USB ports quantity	3
USB port	Yes
Maximum operating temperature	40 °C
