Plugable Technologies Thunderbolt 4 Dock with 100W Charging, Thunderbolt Certified, Laptop Docking Station Dual Monitor Single 8K or Dual 4K HDMI for Windows and Mac, 4X USB, Gigabit Ethernet (TBT4-UD5)

Thunderbolt 4 Dock with 100W Charging, Thunderbolt Certified, Laptop Docking Station Dual Monitor Single 8K or Dual 4K HDMI for Windows and Mac, 4X USB, Gigabit Ethernet (TBT4-UD5)

Key Features

• At a Glance—Thunderbolt certified, dual 4K 60Hz HDMI, 8K-ready, up to 100W Power Delivery (96W Certified), 40Gbps Thunderbolt 4 upstream and downstream ports. 13 ports in total and laptop charging, it's a do-it-all dock
• Dual 4K—Prepare for productivity when you dedicate a screen to your current project and a second screen for email. Both will look crisp and clear on this Thunderbolt hub at up to 4K 60Hz via 2x HDMI ports, or one screen up to 8K via 1x Thunderbolt port
• Thunderbolt Dock—The dock is Thunderbolt 4 certified, and that comes with some powerful perks. With a downstream front Thunderbolt 4 port, enjoy up to 40Gbps data transfer, 15W of charging for your phone or tablet, or drive a single 8K display
• Works With—Thunderbolt docking station is fully compatible with Windows 10 or later systems that support Thunderbolt 4 or USB4. On Mac systems, dual display is only supported on M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max systems

Description

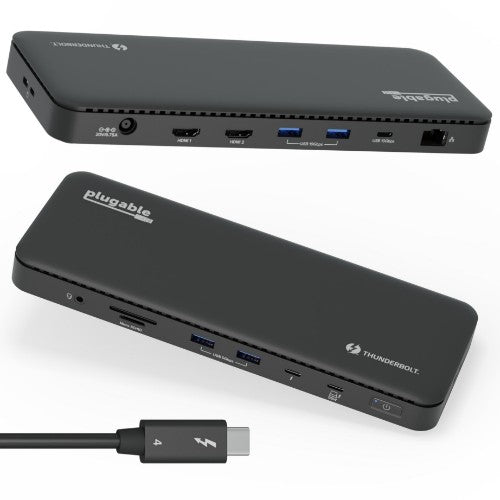

A “do-it-all” dock, the Thunderbolt Certified TBT4-UD5 Plugable Docking Station stands out as a versatile and powerful hub for modern workspaces. Its robust design includes an array of 13 ports, catering to a wide range of connectivity needs.

Starting with the 40Gbps Thunderbolt 4 host port, this HDMI docking station offers plenty of bandwidth to support two HDMI ports, each capable of driving dual 4K 60Hz displays. A downstream 40Gbps Thunderbolt 4 port is also included to provide high-speed connectivity for advanced Thunderbolt-based applications, such as fast storage devices. Use it to alternatively charge your phone or tablet with up to 15W of power or power an external display such as a USB-C monitor at up to 8K

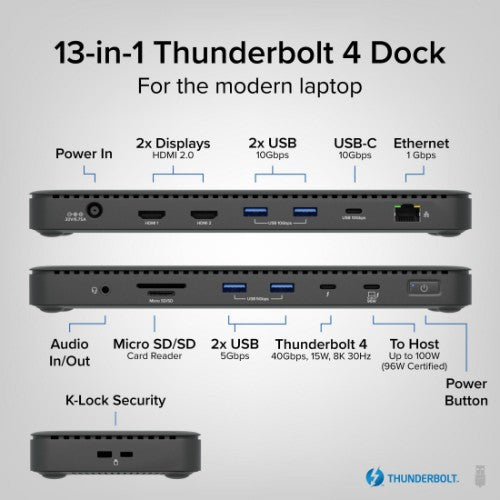

In addition to Thunderbolt 4 to HDMI display options, the TBT4-UD5 boasts a USB-C port with a 10Gbps transfer rate, ideal for quick file transfers and efficient data management. There are also 4x USB ports (2x 10Gbps, 2x 5Gbps), perfect for connecting a variety of peripherals like keyboards, mice, and external drives. Throw in SD and Micro SD slots, a combo audio jack, Gigabit Ethernet, and a slot for a K lock, and this setup ensures that users can create a powerful and integrated workstation.

Speaking of power, the TBT4-UD5 Thunderbolt and USB4 dock packs it in with up to 100W Power Delivery (96W certified) — more than enough for most power-hungry laptops. Especially useful in business and education environments, the Plugable TBT4-UD5 Docking Station delivers exceptional functionality and convenience.

It’s worth noting on Mac systems, dual display is only supported on M1 Pro/Max, M2 Pro/Max, and M3 Pro/Max systems. Base model M1, M2, and M3 systems will only support one extended display.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.0
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDCP	Yes
Thunderbolt 4 ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	4096 x 2160 pixels
Number of displays supported	2
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Cable lock slot type	Kensington
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Cable lock slot	Yes
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Weight & dimensions
Weight	445 g
Width	200 mm
Depth	75 mm
Height	30 mm
Design
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

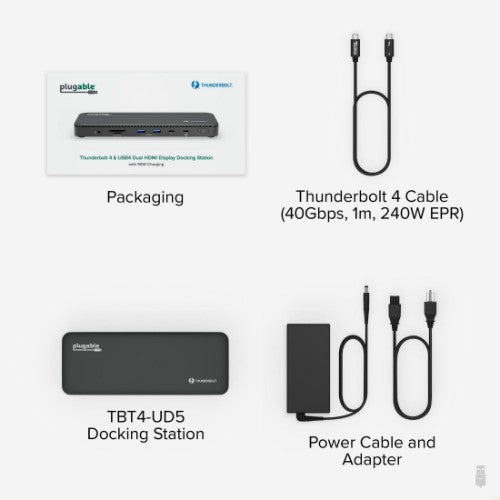

Packaging content
Cables included	Thunderbolt
AC adapter included	Yes
