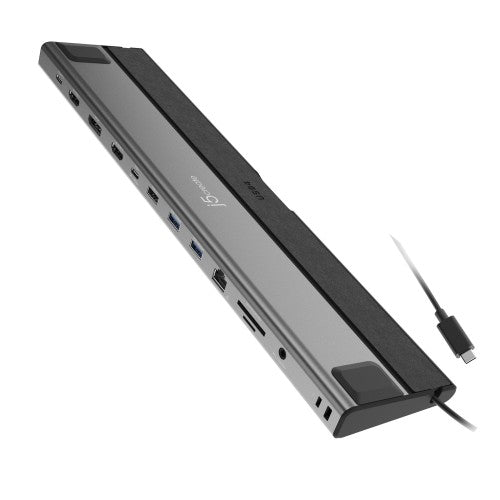

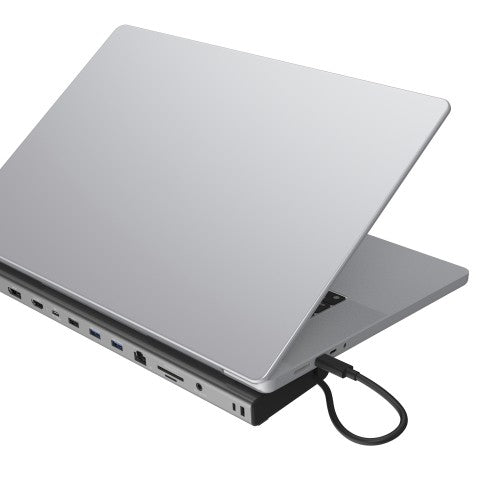

j5create JCD554 USB4® Triple 4K Display Docking Station, Black

USB4® Triple 4K Display Docking Station, Black

Key Features

• Includes the latest Intel® USB4® controller ensures industry-leading quality
• Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance
• Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
• Offers up to 85W of pass-through charging
• Plug & Play, compatible with Windows® and macOS®
• Security Lock Design

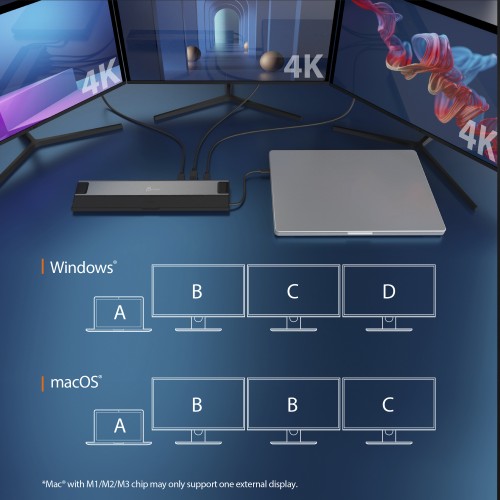

• Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops

Description

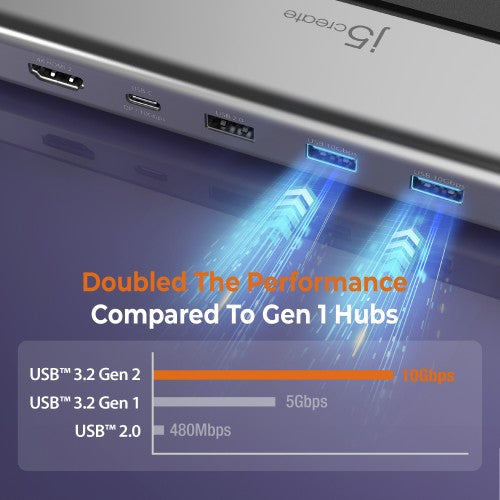

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™, HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W passthrough power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.

Specifications

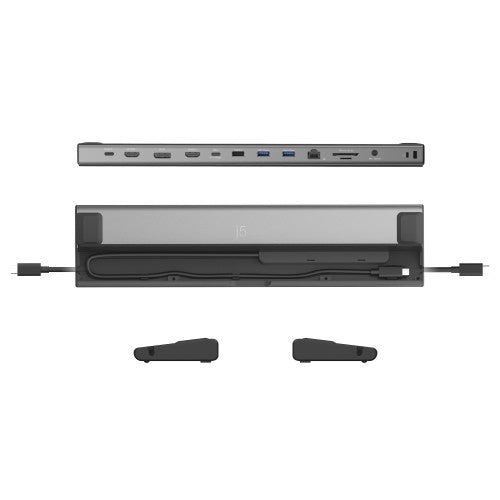

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2

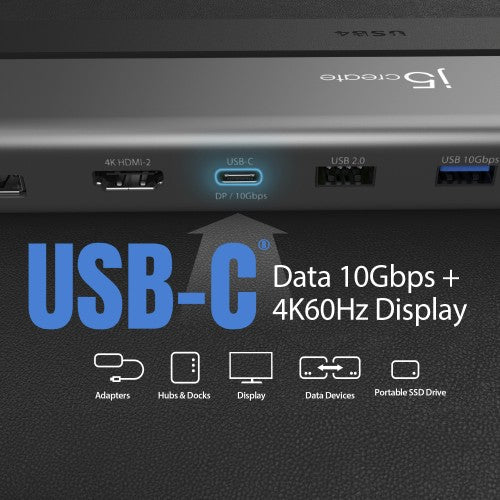

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB4
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	1
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Country of origin	Taiwan
Product colour	Black, Grey
Card reader integrated	Yes
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Cable lock slot type	Kensington
HD type	4K Ultra HD
Housing material	Aluminium
Display modes	Extended, Mirror
Maximum refresh rate	144 Hz
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Technical details
Product colour	Black, Grey
Cable lock slot	Yes
Plug and Play	Yes
Data transfer rate	10 Gbit/s
Cable length	0.5 m
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	24712795088186
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Products per master (outer) case	4 pc(s)
Master (outer) case width	150 mm
Master (outer) case length	398 mm
Master (outer) case height	123 mm
Products per shipping (inner) case	2 pc(s)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
Input current	3 A
Power plug type	Type C
Power consumption (typical)	4.5 W
Output voltage	20 V
Output current	4.25 A
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	463 g
Width	344 mm
Depth	23.6 mm
Height	81.4 mm
Package weight	574 g
Package width	88.3 mm
Package depth	358 mm
Package height	28 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	Taiwan
Product colour	Black, Grey
Cable lock slot	Yes
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package weight	574 g
Package width	88.3 mm
Package depth	358 mm
Package height	28 mm
Packaging content
Quick start guide	Yes
Packaging content	1 - JCD554 USB4® Triple 4K Display Docking Station 1 - Quick Installation Guide (QIG)"
Quantity per pack	1 pc(s)
Logistics data
Shipping (inner) case width	6.6 cm
Shipping (inner) case length	38 cm
Shipping (inner) case height	9.9 cm
Shipping (inner) case net weight	1.2 kg
Products per master (outer) case	4 pc(s)
Master (outer) case width	150 mm
Master (outer) case length	398 mm
Master (outer) case height	123 mm
Products per shipping (inner) case	2 pc(s)
Export Control Classification Number (ECCN)	EAR99
Master (outer) case net weight	2.8 kg
Other features
Cable length	0.5 m
