j5create JCD3196 Type-C Dock Dual 4K HDMI™, Black

Type-C Dock Dual 4K HDMI

Key Features

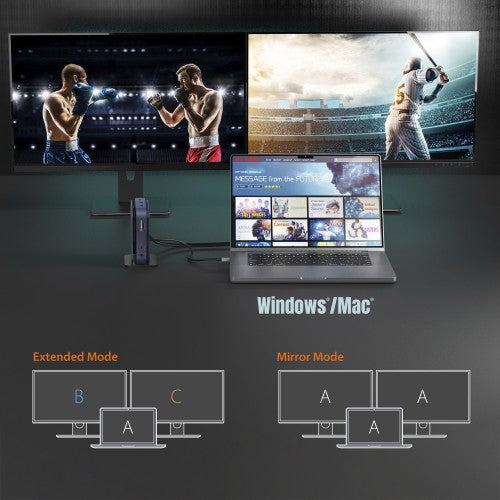

• Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)

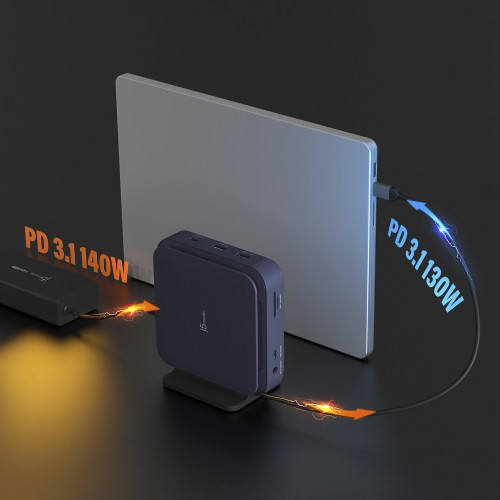

• Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host
• Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
• Reliable network connectivity via the Gigabit Ethernet
• Includes SD™/microSD™ card reader

Description

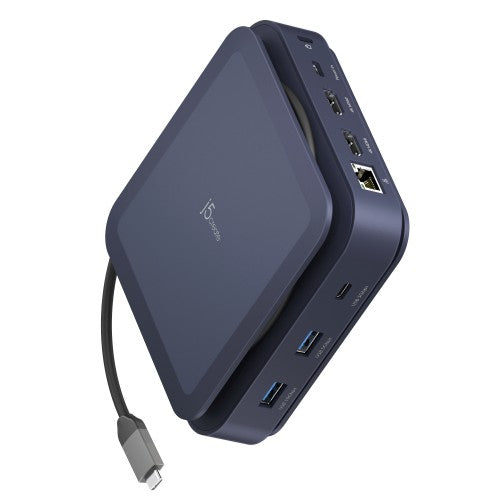

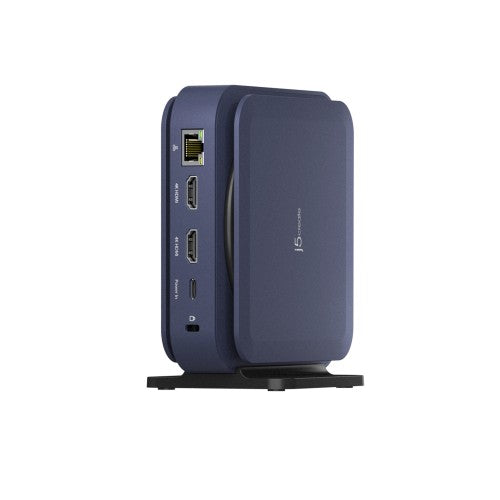

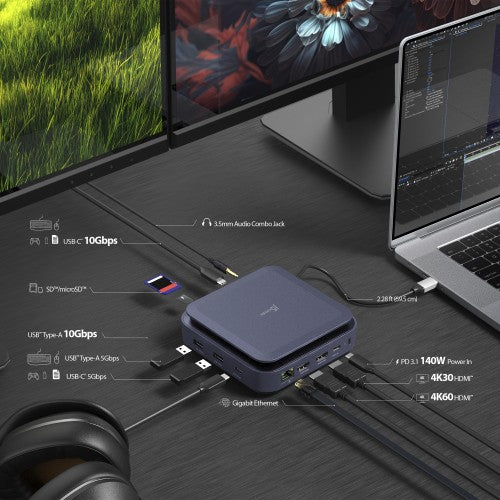

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
Microphone in	Yes
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.1
USB Power Delivery up to	140 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Country of origin	Taiwan
Product colour	Blue
Card reader integrated	Yes
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Plastic
Colour name	Dark Blue
Maximum refresh rate	60 Hz
Technical details
Product colour	Blue
Cable lock slot	Yes
Data transfer rate	10 Gbit/s
Cable length	0.695 m
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	24712795089039
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Products per master (outer) case	4 pc(s)
Master (outer) case width	186 mm
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	-1 - 41 °C
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	236 g
Width	130 mm
Depth	130 mm
Height	40 mm
Package weight	416 g
Package width	145 mm
Package depth	140 mm
Package height	56 mm
Design
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Yes
Country of origin	Taiwan
Product colour	Blue
Cable lock slot	Yes
Packaging data
Quantity per pack	1 pc(s)
Package weight	416 g
Package width	145 mm
Package depth	140 mm
Package height	56 mm
Packaging content
Packaging content	1 - JCD3196 Type-C Dock Dual 4K HDMI™ 1 - Dock Holder 1 - Quick Installation Guide (QIG)
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	4 pc(s)
Master (outer) case width	186 mm
Master (outer) case length	249 mm
Master (outer) case height	174 mm
Export Control Classification Number (ECCN)	EAR99
Master (outer) case net weight	1.9 kg
Other features
Cable length	0.695 m
