ASUS ROG NUC RNUC14SRKU7168A3I Intel Core Ultra 7 155H 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Mini PC Black

Intel Core Ultra 7 155H, 16 GB DDR5 SO-DIMM, 512GB M.2 2280 SSD, NVIDIA GeForce RTX 4060, 2.5G Intel LAN, Wi-Fi 6E, Bluetooth 5.3, 330W, 2.5L (270 x 180 x 50 mm), UK

Key Features

• With Intel® Core™ Ultra 9/7 processor deliver superior performance
• Ultra-small form factor delivers superior performance and seamless multitasking
• Gamers can chat, browse, stream, edit, record and play without skipping a beat
• NVIDIA® GeForce RTX™ 4070/4060-series graphics make immersive gaming experiences possible

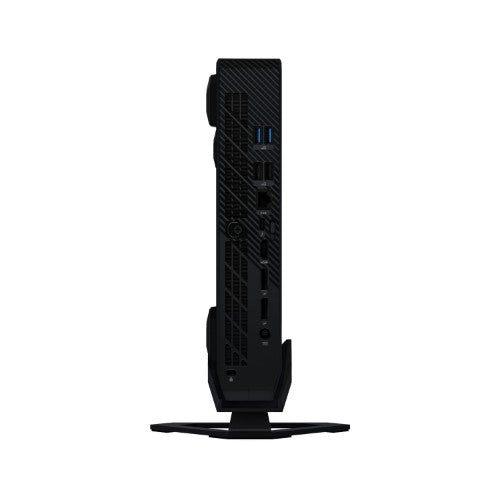

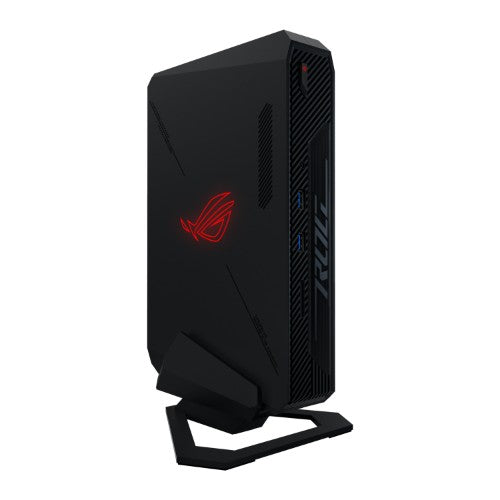

• Arrange systems vertically or horizontally (vertical stand included)
• Connect fast with 2.5Gb Ethernet, Intel® Killer® Wi-Fi 6E, and Bluetooth® 5.3
• Customize the addressable backlit ROG panel with your own lighting experience and the option to DIY your own logo
• Take your RGB game to the next level with ASUS AURA Sync’s 12 ROG synchronization modes for ROG peripherals
• 2.5-liter chassis design makes integration and cleaning a breeze
• Freedom to play from your living room or desk with this ROG Raikiri Pro compatible PC

Description

ROG NUC
Compact Gaming Power
ASUS redefines gaming with the first-ever ROG NUC. Featuring up to Intel® Core™ Ultra 9 processors and NVIDIA® RTX™ 4070 discrete graphics, this compact powerhouse delivers unmatched gaming experiences. With the performance hybrid architecture of Intel® Core™ Ultra processors, gamers have the freedom to chat, browse, stream, edit, record, and play without skipping a beat. The 2.5-liter chassis is designed for quick system access, making upgrades and cleaning quick and easy. Compatible with the Raikiri Pro controller, the ROG NUC is the ultimate choice for gamers seeking uncompromised performance and flexibility in a compact form factor.

Game Without Compromise
Super charge modern gaming with NVIDIA® GeForce RTX™ 4070/4060. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. Plus, every system offers up to 64GB dual-channel DDR5 memory, three M.2 PCIe slots and the latest in wireless connectivity with Intel® Killer™ Wi-Fi 6E and Bluetooth® 5.3. Gamers can also connect at will with one Thunderbolt™ 4, four USB 3.2 Gen2, two USB 2.0 ports.

No-compromise connectivity
Ultra-small and ultra-powerful, ROG NUC Mini PCs built for the next generation of gaming, with an unparalleled combination of superior performance, riveting visuals, and fast and flexible connectivity.

Space-saving and customizable chassis
Ultra-Small—only 2.5 liters in size and packed with the same I/Os as a desktop system 10 times the size.

Vapor chamber and heat pipe thermal design allows the system to be placed vertically or horizontally for discrete placement or for space-saving in tight locations.

AI Capability at its Best
Experience Intel’s first integrated NPU purpose-built for efficient client AI, ideal for sustained AI processing and offloading, and common-sense development. From image processing and AI video editing to Generative AI, streaming, and gaming, the Intel® Core™ Ultra processor's built-in AI capabilities keep the ROG NUC on the cutting edge of AI possibilities.

Specifications

Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor cache	24 MB
Processor model	155H
Number of processors installed	1
Processor manufacturer	Intel
Processor threads	22
Processor cores	16
Processor family	Intel Core Ultra 7
Performance cores	6
Efficient cores	8
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Processor base power	28 W
Maximum turbo power	115 W
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Memory
Memory layout (slots x size)	2 x 8 GB
Internal memory	16 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	3
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	Yes
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel Arc Graphics
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Killer
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	2
Line-out	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DC-in jack	Yes
DisplayPort version	1.4a
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Number of rear USB ports	4
Number of front USB ports	2
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Design
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Cable lock slot	Yes
Performance
Product type	Mini PC
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Power
Power supply	330 W
Weight & dimensions
Width	270 mm
Depth	180 mm
Height	50 mm
Packaging content
Display included	No
Other features
On-board graphics card	Yes
Processor manufacturer	Intel
