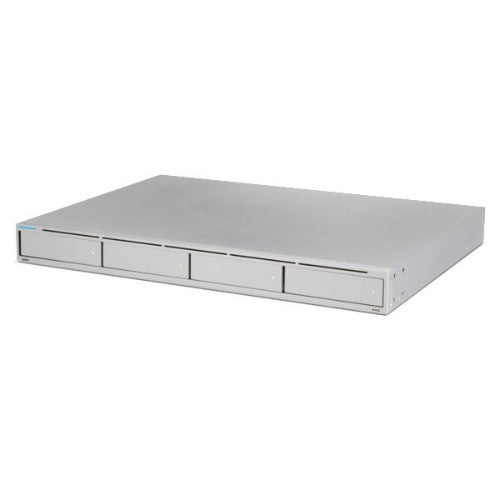

Ubiquiti Protect Network Video Recorder

Protect Network Video Recorder

Key Features

• (4) 2.5"/3.5" Drive bays
• (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• 1U rackmountable (kit included)
• Plug and Play UniFi Protect system with NVR
• Automated secure RAID 1 or RAID 5 configuration

Description

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Specifications

Performance
Video input channels	4 channels
Built-in processor	Yes
Processor frequency	1.7 GHz
Ethernet LAN data rates	1000,10000,100000 Mbit/s
Processor cores	4
Hard drive
RAID support	Yes
RAID levels	5
HDD capacity	4 GB
Storage
RAID support	Yes
RAID levels	5
HDD capacity	4 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
RAID levels	5
Ethernet LAN data rates	1000,10000,100000 Mbit/s
Features
Rack mounting	Yes
LED indicators	Yes
On/off switch	Yes
Product colour	Grey
Processor
Built-in processor	Yes
Processor frequency	1.7 GHz
Processor cores	4
Power
Output current	2 A
Power consumption (typical)	75 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	100 W
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Technical details
Harmonized System (HS) code	85219000
Weight & dimensions
Width	442.4 mm
Depth	325 mm
Height	43.7 mm
Weight	5.11 kg
Logistics data
Harmonized System (HS) code	85219000
